2.10.2 Adjusting the wheel feeder height for double needle sewing machines
and sewing machines with edge trimmer
–

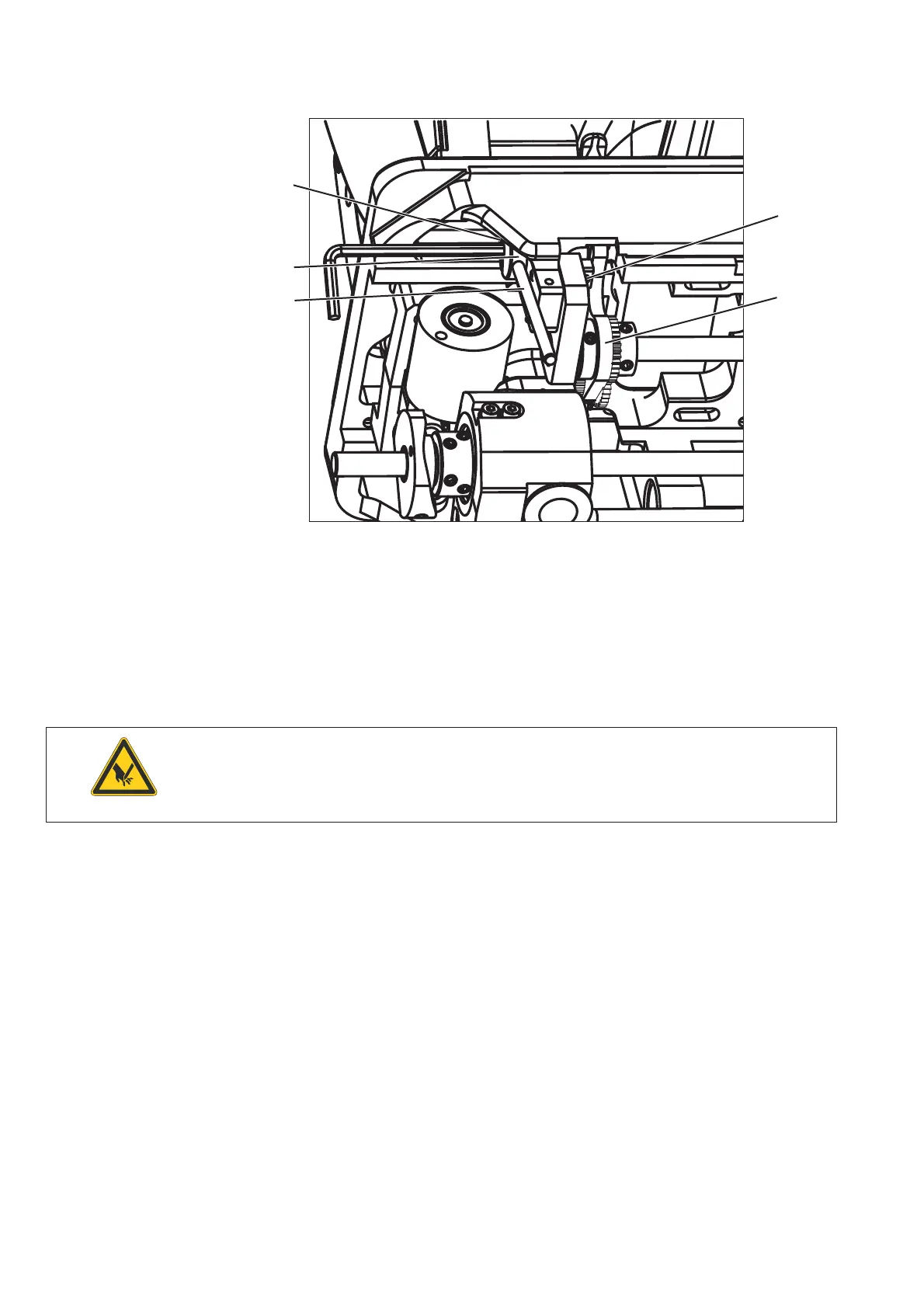

With the tipped and locked sewing machine loosen the safety
screw (1) with an Allen key as well as the blocking screw (2).
–
By means of the setting pin (4) inserted into the hole of the
rotational part (3) set the correct position of the whole wheel feeder
holder (5) according to rule 2.
Tighten the screws (2) and (1).
Caution: Risk of injury!
Turnthemainswitchoff.
Only carry out this adjustment when the machine is turned off.
