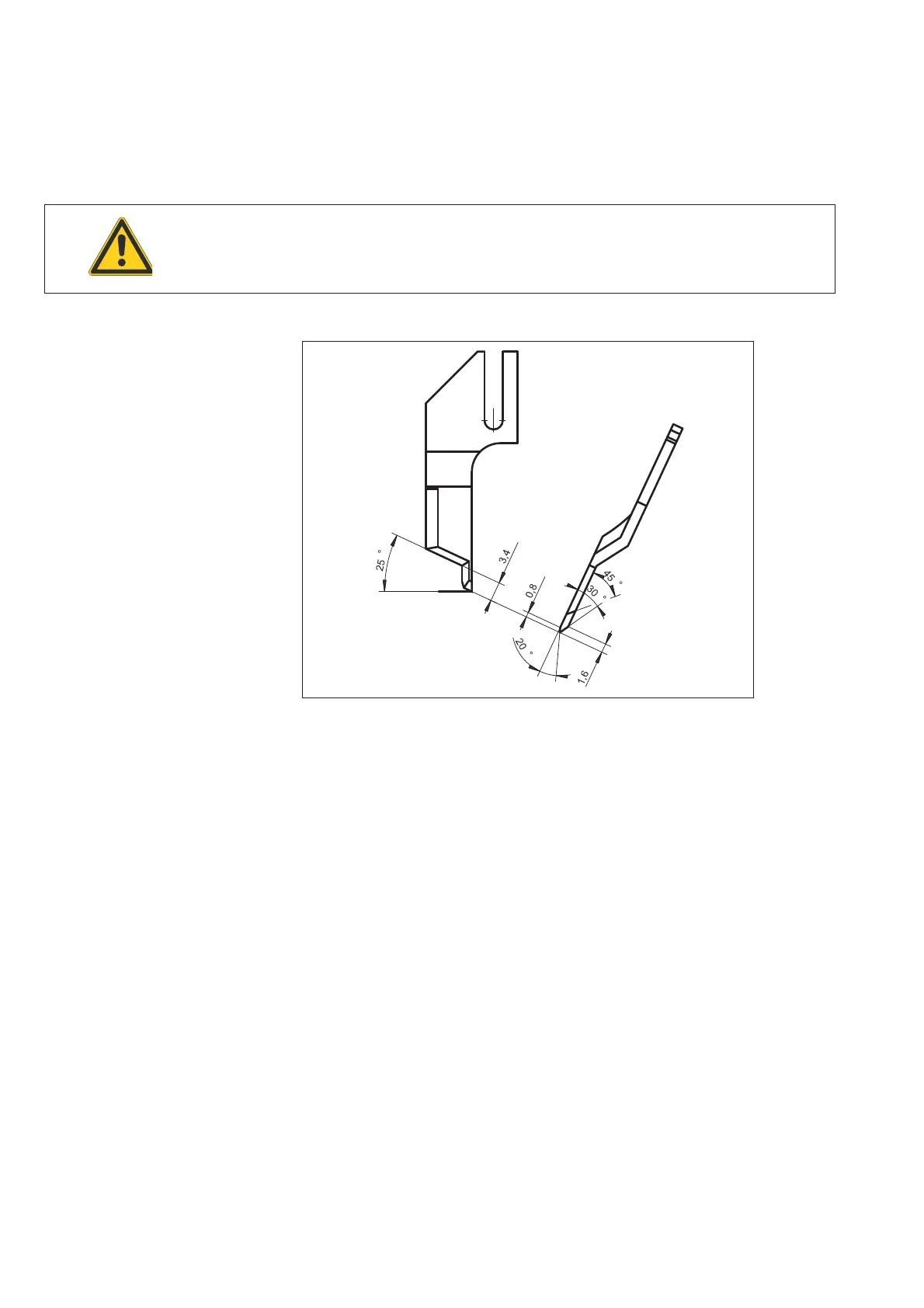

Sharpening
the
upper
knife
The
upper
cutting
knives
supplied
as
standard,
which
are
made
of
tool
steel,
can
be
sharpened
again
after
they
get
blunt,
best
of
all
by
means
of
a
special
claming
fixture
(can
be
ordered
additionally)
either
manually
,
or
on
a
special
machine
grinder
at
observing
its
prescribed
geometry
(see
the
picture).
Caution!
Danger
of
injury
with
knife
edge
when
handling
or
sharpening.
