7.2 Upper knife height adjustment
Rule:
The standard height value of the cutting knife is 5 mm for the vertical
edge trimmer. This value can be changed as needed as follow:
–

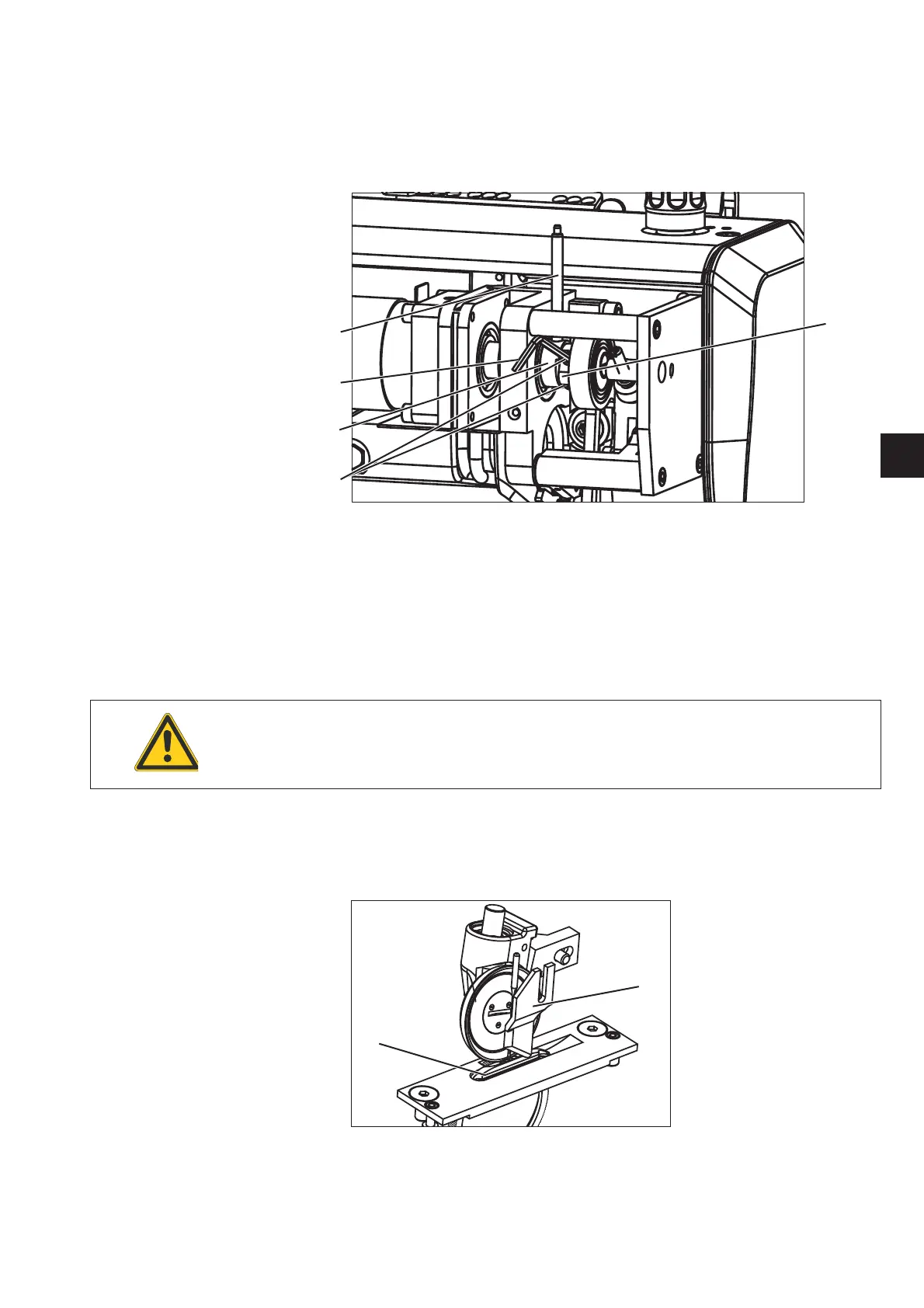

Insert the setting pin (1) in the hole in eccentric (2) and set in the
vertical position.
–
With Allen key (3) inserted in one of the two screws (4) of the
eccentric (5) loosened beforehand, turn in a limited reach to
achieve the needed change of the knife height.
–
Tighten the screws (4) in the set up position / for the 5mm lift is set
up the pin on the eccentric (5) opposite the sign on the opposite
part (2)/, remove the setting pin (1).
Attention!
The cutting knife must not strike the bottom of the throat plate recess
in its bottom dead center.
Using the special sewing set (see schedule II) with the cutting knife
0887 330100 (1) and different insert of the throat plate (2) acc. the
picture, set up the cutting knife lift value through the above mentioned
way to 2,4 mm.
