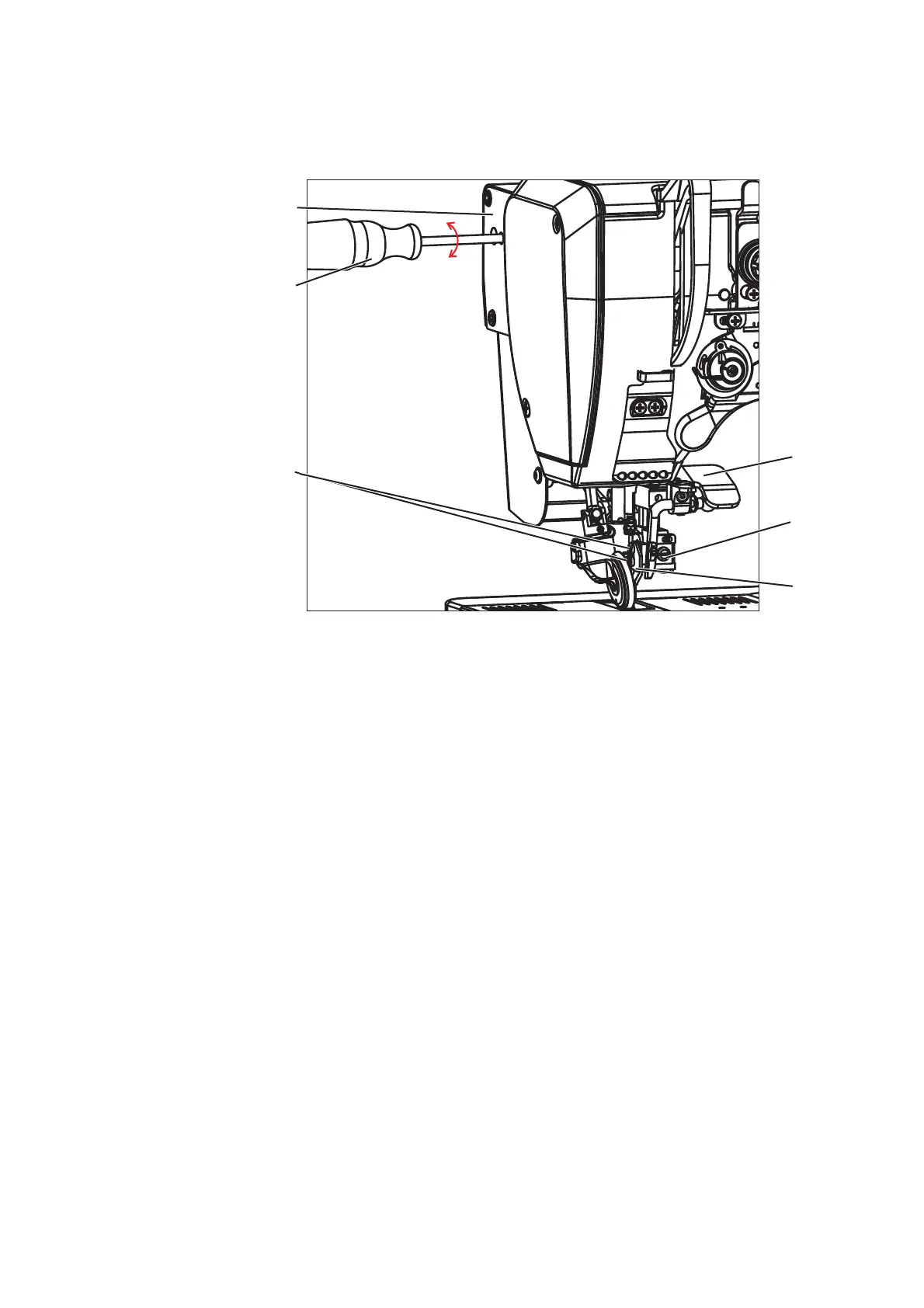

7.3 Height adjustment of cutting knife
The cutting knife (1) is clamped in the knife holder (2) with two bolts (3)
and by means of a groove.
–
Lower the knife holder (2) to the bottom position by means of a
lever (4).
–
Set the knife (1) bottom position with a flat screwdriver (5) inserted
in the lifting eccentric groove through the side cover hole (6).
–
Lower the loosened cutting knife (1) entirely so that its lower part
touches the retaining part (7). Then lift it by about 0,5-1mm
upwards and tighten the bolts (3).
–
Check its correct movement by rotating the screwdriver manually
when the knife is lowered.
38
6
5
3
4
2
1
