Components and functions
Instructions for use DAC basic/classic - DAC eco plus - OP4X00 - 00.0 - 04/2024 17
4.2 Control panel
See p. 19 for a detailed explanation.
4.3 Setpoint device
The setpoint device converts the values from the pedal into voltage
values. The setpoint device specifies the speed and starts
the
thread trimmer or the sewing foot lift.
The setpoint device is attached under the stand with a mounting
bracket.
The setpoint device includes:
• a push/pull rod (1) that is connected to the machine pedal
through the set of rods
• a spring pre-load (2), enabling 3 settings for the push/pull rod
(none, 1/8, or 1/4 rotation)

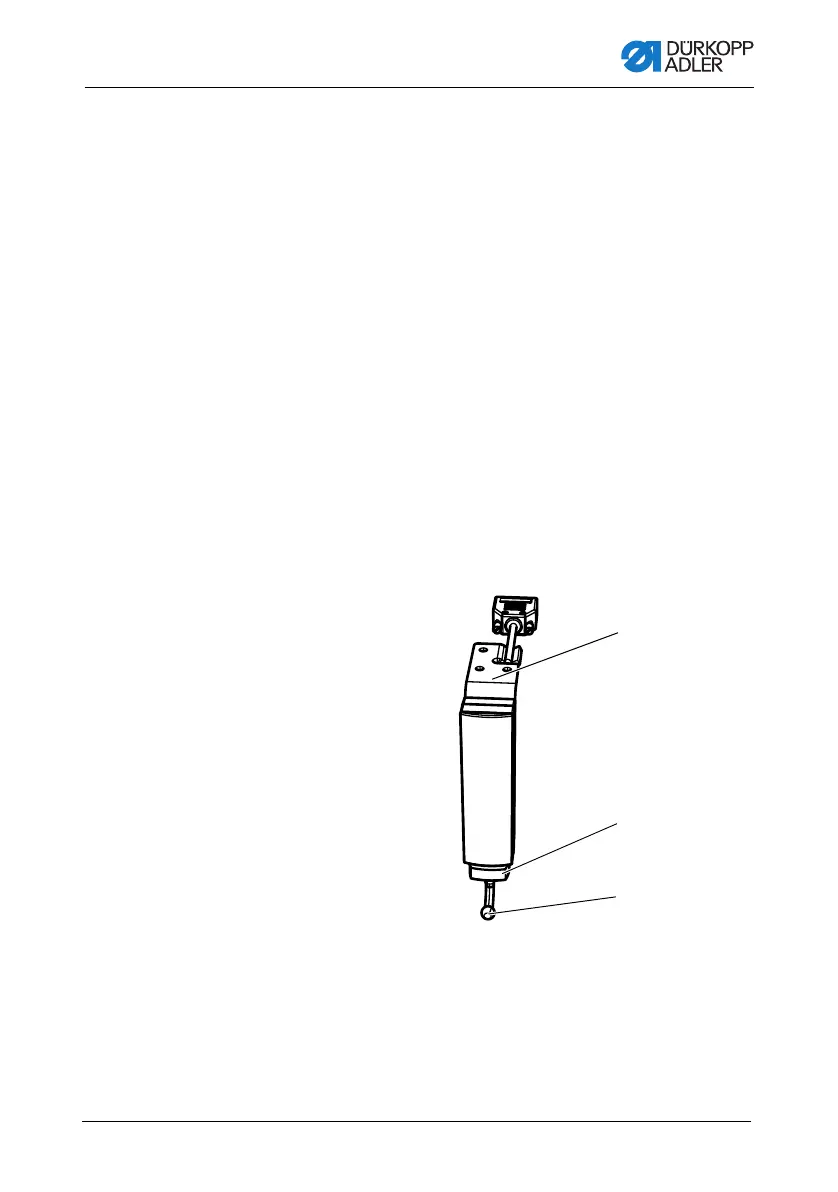

Fig. 5: Setpoint device
(1) - Push/pull rod
(2) - Spring pre-load
(3) - Fixing parts
①
③
②
