Components and functions
Instructions for use DAC basic/classic - DAC eco plus - OP4X00 - 00.0 - 04/2024 13
4 Components and functions
When delivered, the DAC basic/classic - DAC eco plus -
OP4X00 consists of:
• OP4X00 control panel
• Fixing parts
• Pedal rod
• Setpoint device
• Control DAC eco plus, DAC basic or DAC classic
4.1 Control
The control is available in 3 different versions:
• DAC eco plus
• DAC basic
• DAC classic
The DAC classic has more inputs and outputs in the back than
the DAC basic. The DAC eco plus has no inputs or outputs.

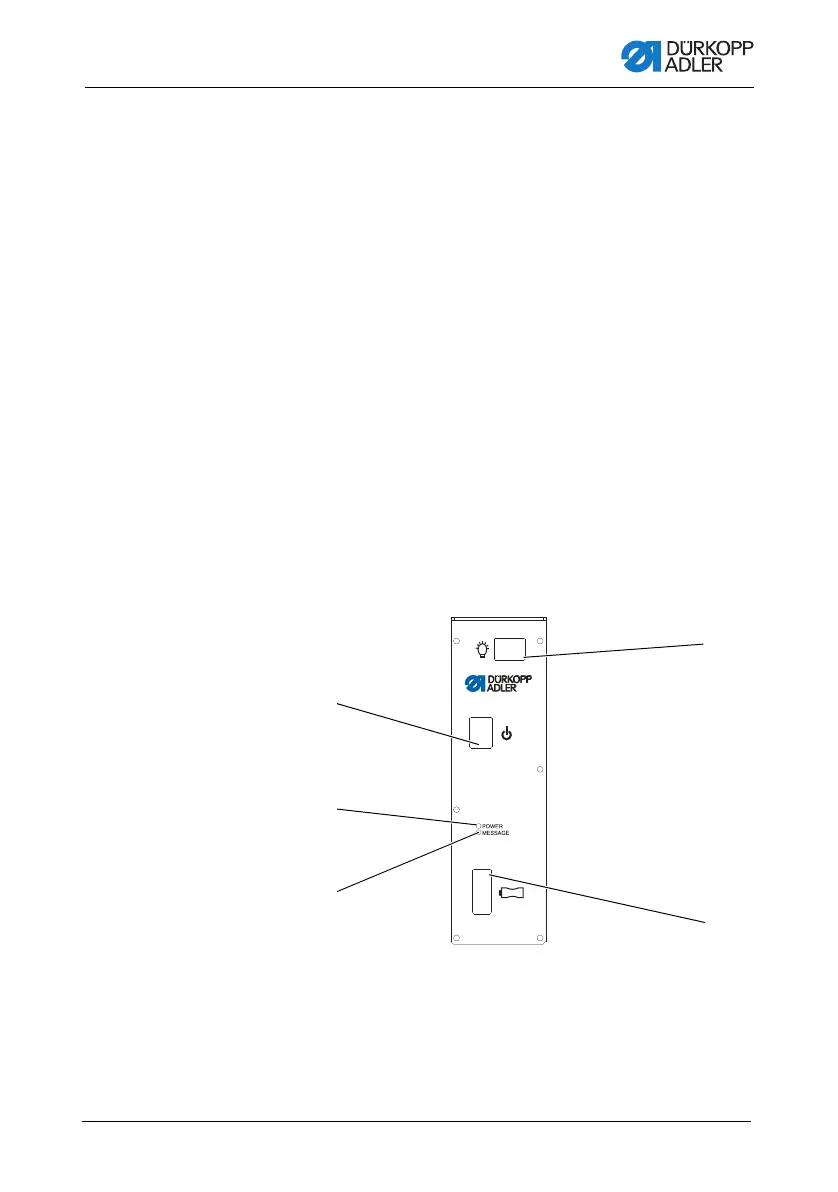

Fig. 1: DAC basic/classic, front
(1) - Main switch
(2) - POWER LED
(3) - MESSAGE LED
(4) - Connection for dongle
(5) - Switch for sewing lamp
⑤
③
①
④
②
