DURKOPP ADLER DAC basic

Components and functions
Instructions for use DAC basic/classic - DAC eco plus - OP4X00 - 00.0 - 04/202414

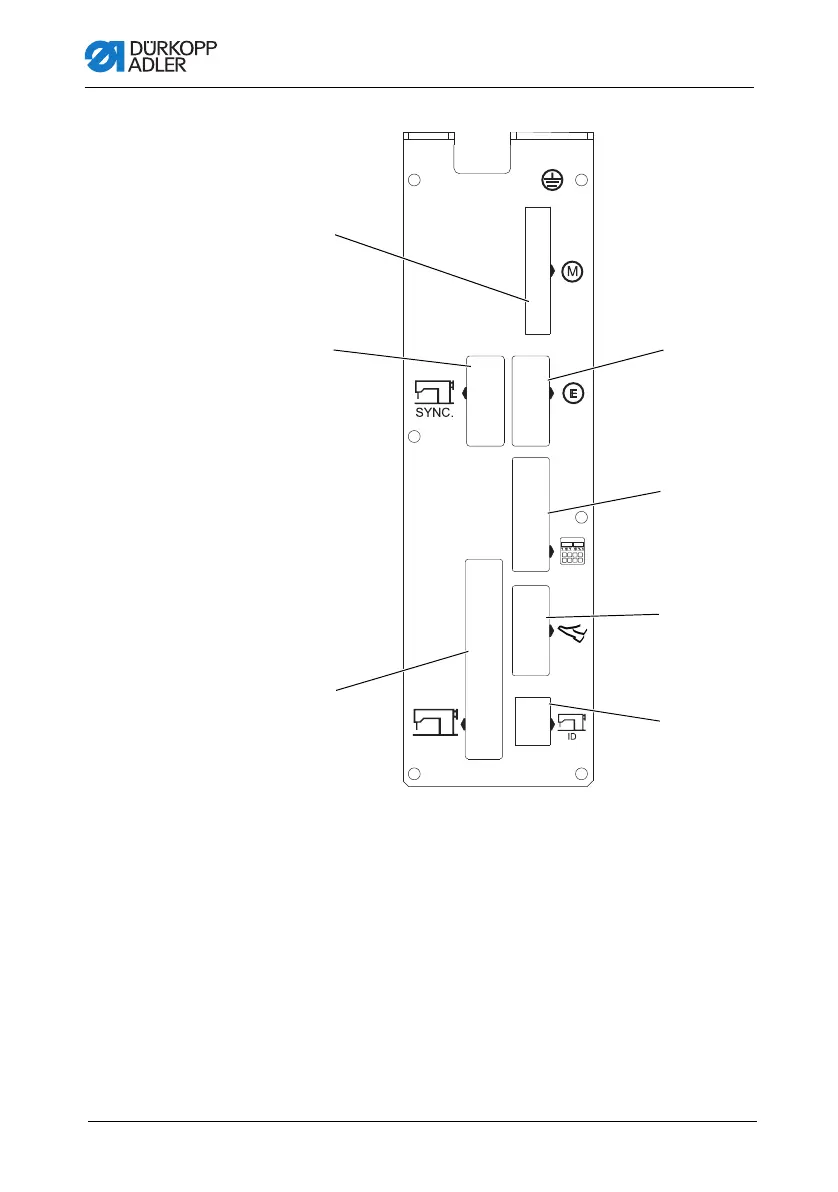

Fig. 2: DAC basic, back
(1) - Connection for sewing motor
(2) - Connection for synchronizer
(3) - Connection for machine
(4) - Connection for machine ID
(5) - Connection for pedal
(6) - Connection for control panel
(7) - Connection for sewing motor
encoder
