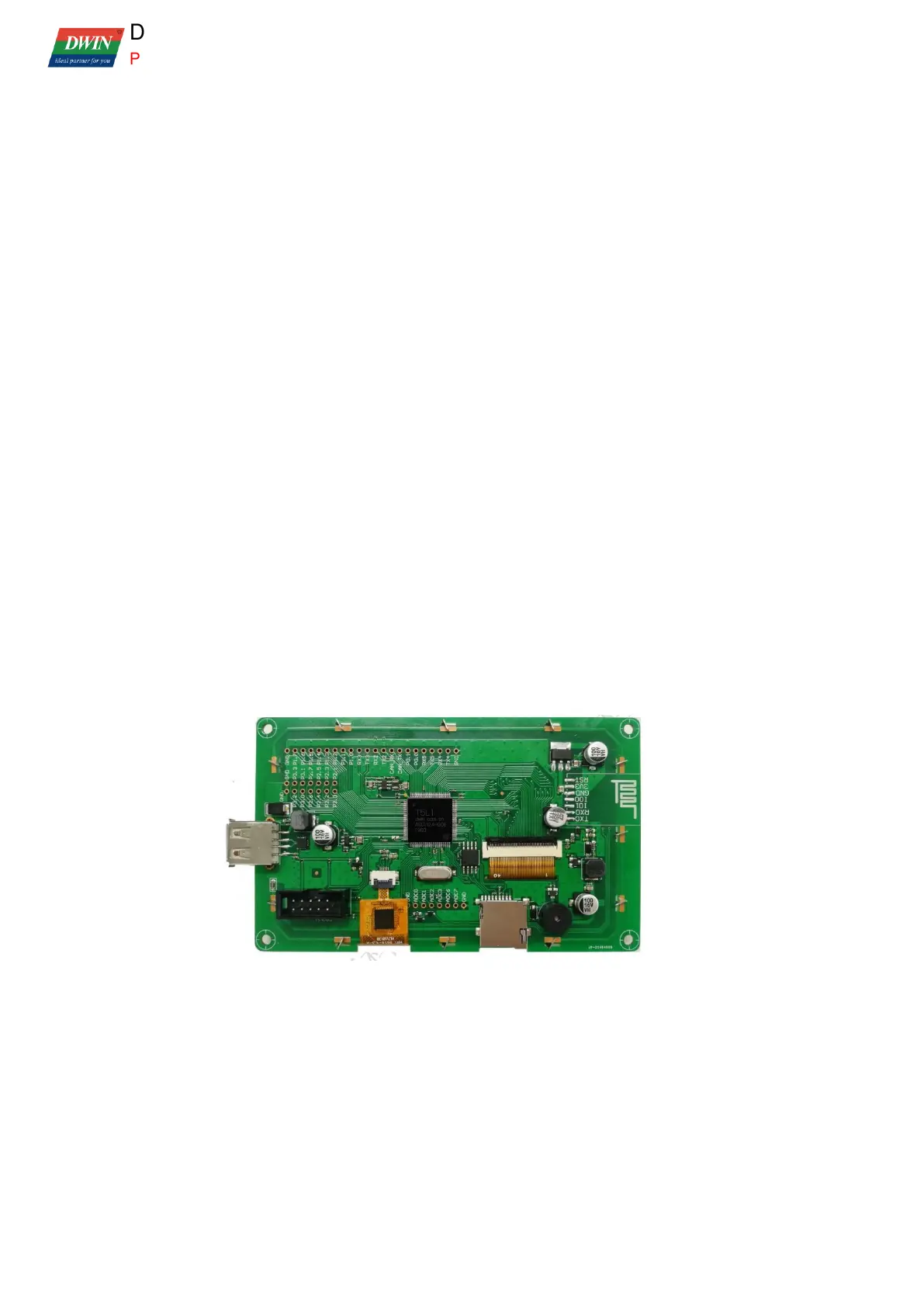

5 EK043 Evaluation Board
EK043 evaluation board uses T5L1 to drive 4.3 inch 480*272 TFT screen, and matches capacitor
touch screen. Its main features include:
(1) 11.0592 MHz crystal, 206.4384 MHz main frequency operation, support HME05 simulator.
(2) External 16MB SPI Flash, run standard DGUS II UI;
(3) Power supply and debug by USB interface;
(4) The OS CPU 8051 program can be downloaded through the USB interface and
automatically reset by hardware;
(5) Read and write DGUS variable memory and download pictures and word libraries through
USB interface to facilitate DGUS debugging;
(6) The assembly location of DWIN WiFi module is reserved for easy access to DWIN cloud
(both WiFi module and USB occupy the UART with a baud rate of 921600 bps);
(7) All interfaces of T5L OS CPU are lead out with 2.54mm spacing through-hole bonding
pad and marked.
(8) 6 AD, ADC0-ADC3, ADC6-ADC7 which can be used by users are lead out and marked
with 2.54mm spacing through-hole bonding pad.
(9)
