2 Hardware Description
2.1 PIN Definition

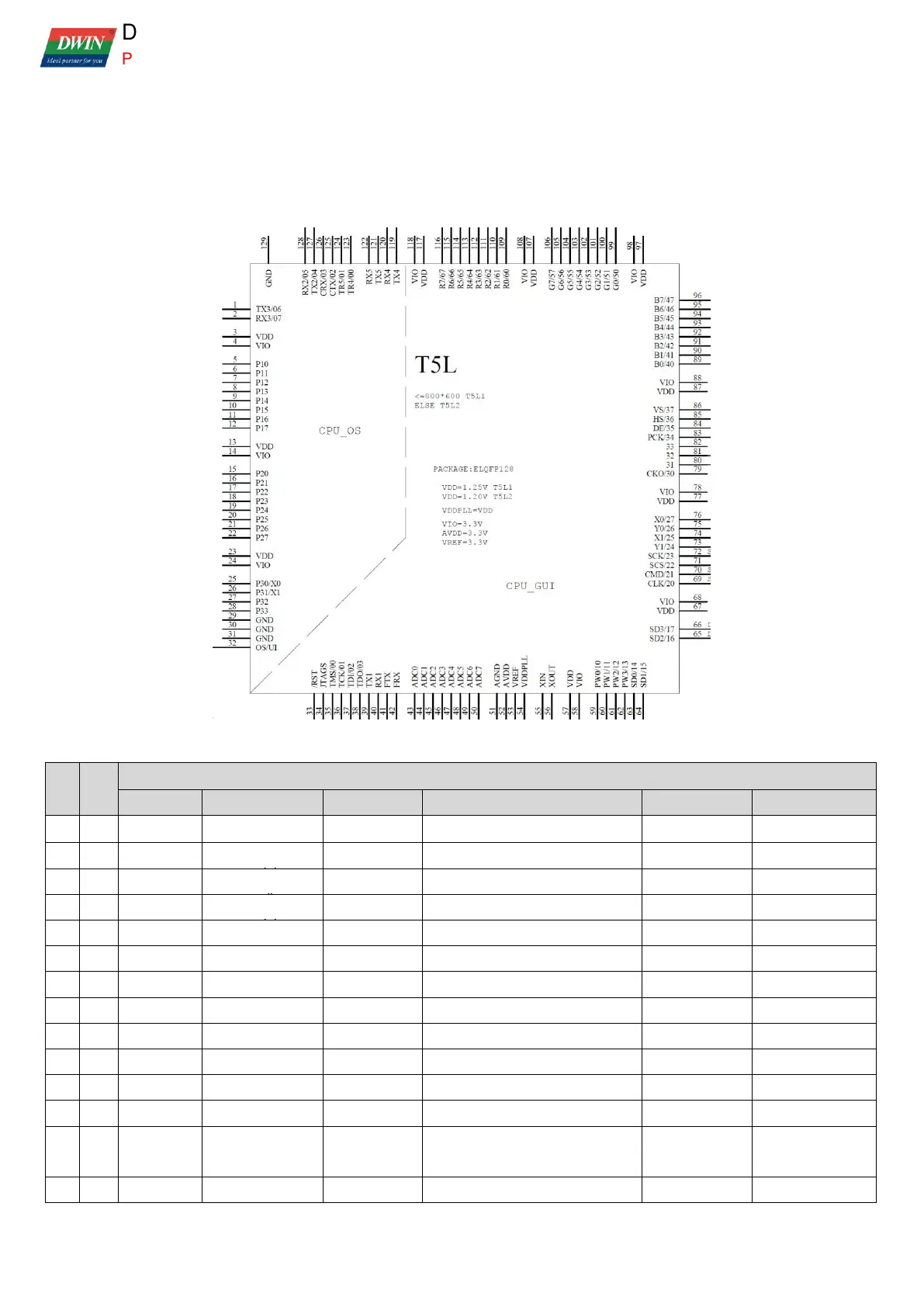

T5L ASIC is packaged in ELQFP128 (16*16*1.5mm), and pins arrangement are shown below.
T5L pin
CPU
PIN#
Definition
Function 1
Instructions
Function 2
Instructions
Function 3
Instructions
OS
119
TX4
UART4 data
sending
OS
120
RX4
UART4 data
receiving
OS
121
TX5
UART5 data
sending
OS
122
RX5
UART5 data
receiving
OS
123
P0.0
I/O port
OS
124
P0.1
I/O port
OS
125
P0.2
I/O port
CAN_TX
CAN data sending
OS
126
P0.3
I/O port
CAN_RX
CAN data receiving
OS
127
P0.4
I/O port
TX2
UART2 data sending
OS
128
P0.5
I/O port
RX2
UART2 data receiving
OS
1
P0.6
I/O port
TX3
UART3 data sending
OS
2
P0.7
I/O port
RX3
UART3 data receiving
OS
3
VDD
T5L1=1.25V
T5L2=1.2V
OS
4
VIO
3.3V
