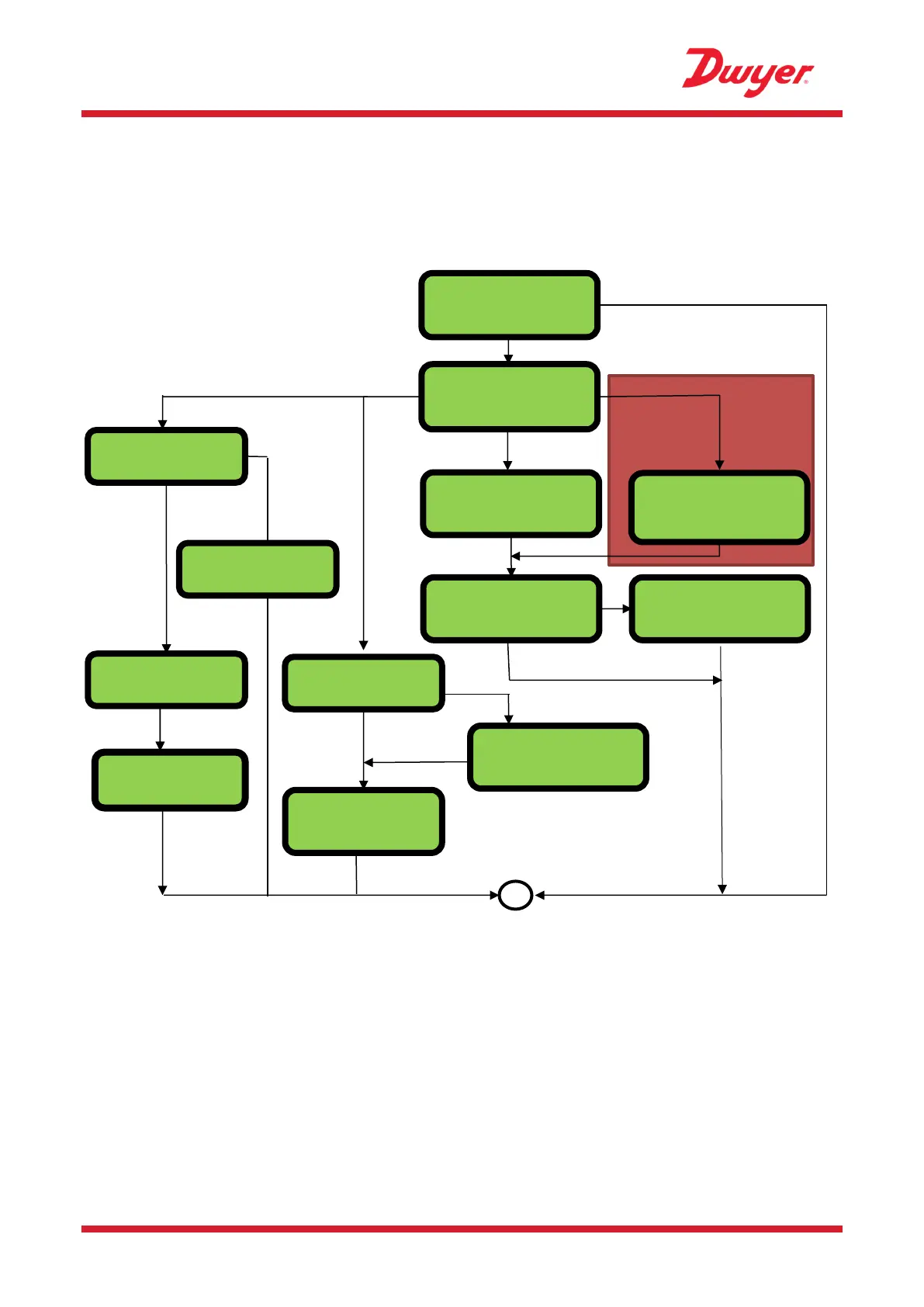

3.5 Pulse Output Menu
NOTE: SCREENS WITHIN THE RED BOX ARE ONLY SHOWN ON UBT MODELS.
Select Pulse:
OFF | ON
Volume per Pulse
010.000 Units
Pulse Width
50 ms

Valid & 
On & 
Volume & 
Valid & 
Max Pulse Freq
200 Hz
Valid & 
Test mode press V or Λ to
generate a 20ms pulse
Invalid & 
Select
Level
&

Pulse Type:
Volume/ Energy (UBT only)
/Frequency/ Flow Alarm
Range 3 - 99
50 ms
Range 1 – 200
200
Invalid & 
Off & 
Energy Pulse
1/10/100 kWh or 1 Mwh
1/10/100 kBTU or 1 MBTU
Energy & 
Flow Alarm press > to select
& 
Freq & 
Select level
& 
Enter Level:
0500 Units
Max Flow @ Freq:
9999.00 USgal/m
Flow Alarm:
Level | Sig Loss
Alarm Status:
N/Closed | N/Open
Alarm Status:
N/Closed | N/Open
Select > & 
Select > sig loss
&

