UFM2/UBT User Manual
Issue 1.1b July 20 Page 3
1.3 Package Contents
The unit consists of two parts:
1. Sensor Assembly
Incorporating guide rails and two transducers for flow measurement.
2. Electronics Module
Consisting of the keypad and display, power, signal and Modbus connections. The Electronics
Module clips onto the Sensor Assembly.
In addition, the kit contains:
3. Adhesive gel pads (4)
4. 2-part adaptors for fixing sensor assembly to pipes with an OD less than 2 ½" (75 mm) (2).
5. UBT only: Non-releasable stainless cable ties for temperature sensors (2)
6. Quick release clamps for use with pipes with an OD of ¾ - 2 ½" (25-75 mm) (2)
7. Quick release clamps for use with pipes with an OD of 2 – 5" (63-140 mm) (2)
8. UBT only: PT100 temperature sensors with cable (9.8' (3 m)) (2)
9. Modbus cable (optional)
The kit also contains a copy of this manual.

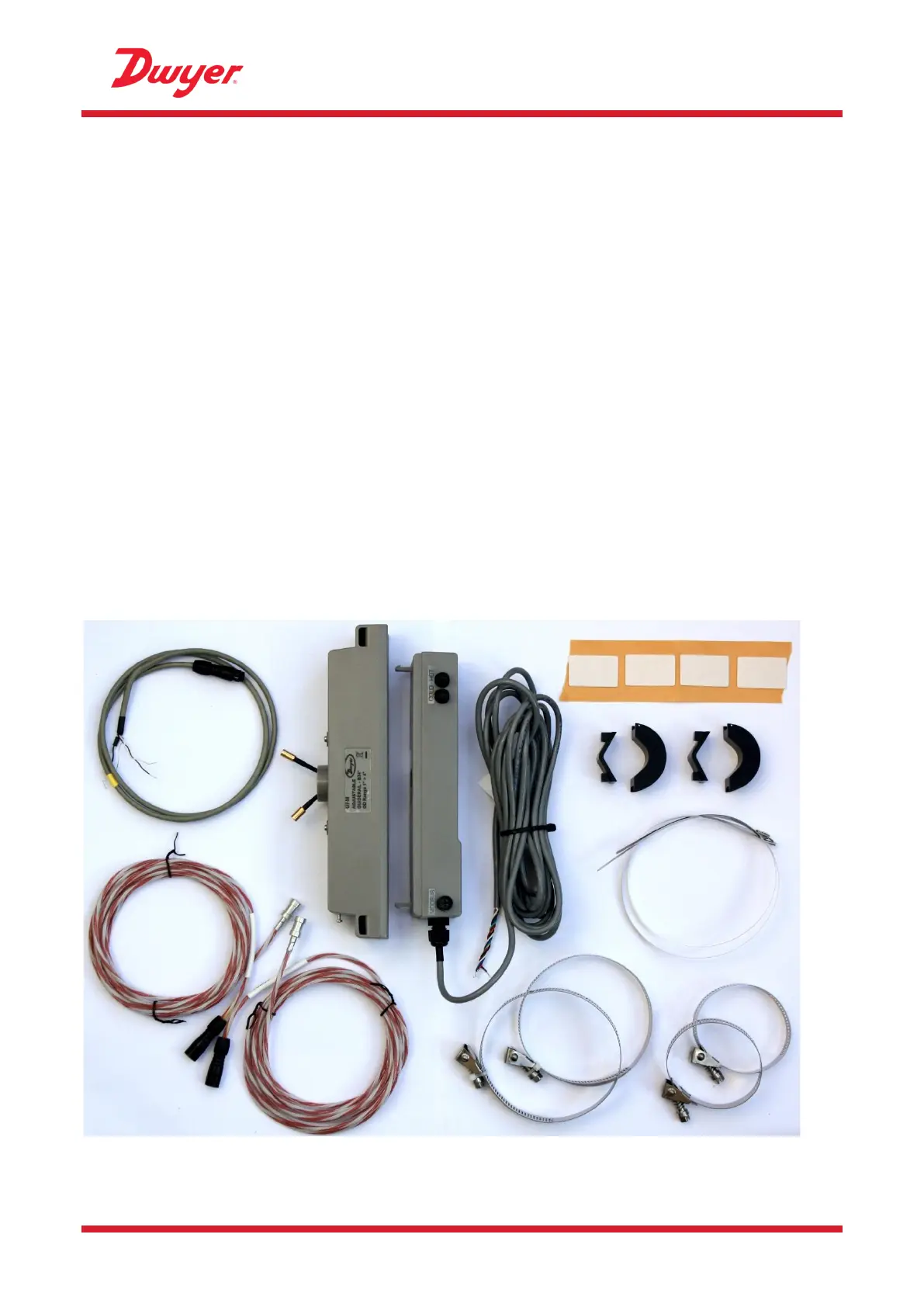

Figure 2 Package Contents
