(3) Wiring for Serial Control
① When planning a RS232C interface with the main control system, the ADP-1 (RS232C/RS485
converter) is necessary. Please refer to section 6.3 regarding the ADP-1.
4.3. Notes for wiring and connections
4.3.1. Power shut down

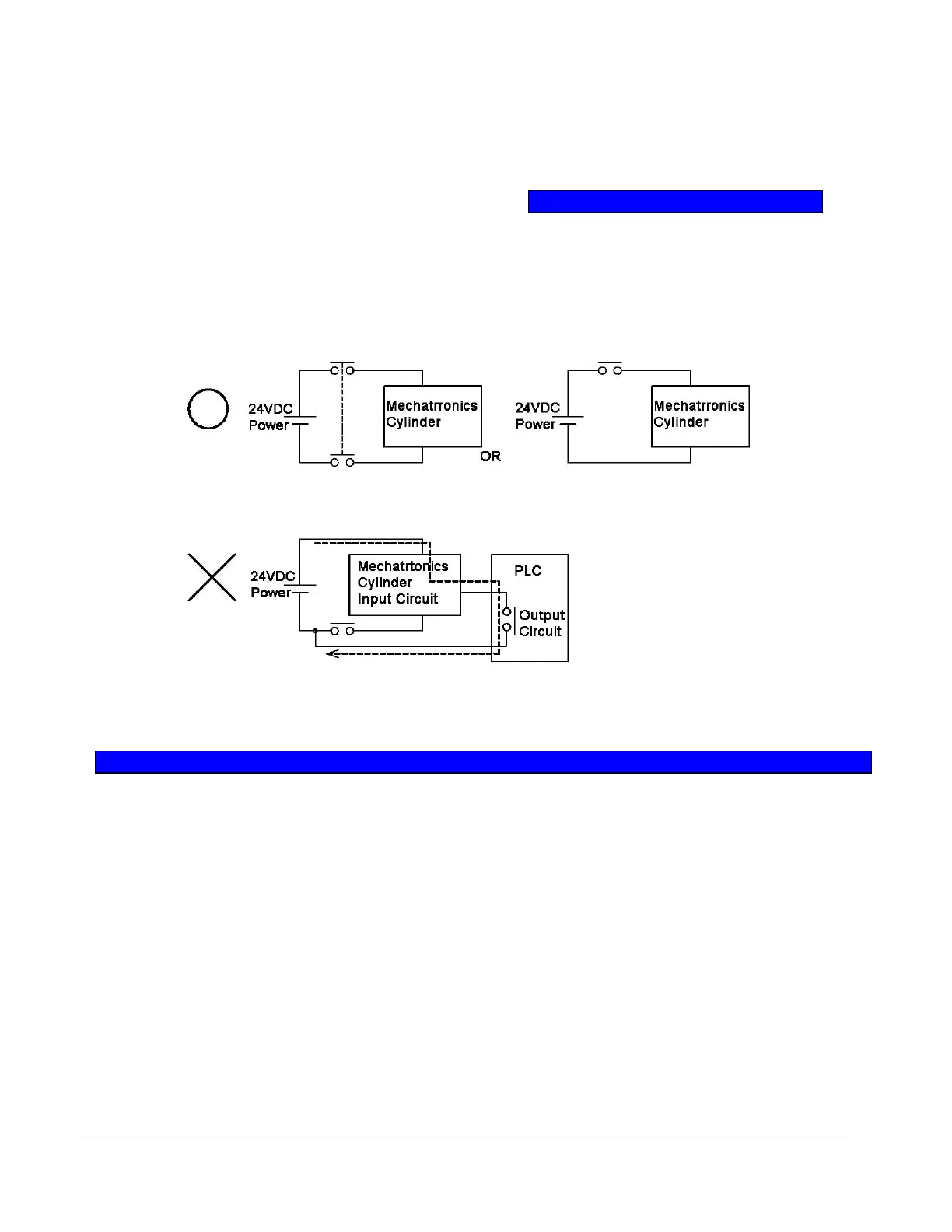

When shutting down 24VDC power to the Mechatronics Cylinder, please open both 24V and 0V lines
from the power supply, or open the 24V side.
4.3.2. +24VDC Ground
Please do not connect +24VDC power to ground.
PNP T
yp
e
PNP T
y
pe
If 0V of 24 VDC power supply is shut down, the power circuit of the Mechatronics Cylinder may be damaged.
