Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-46/63

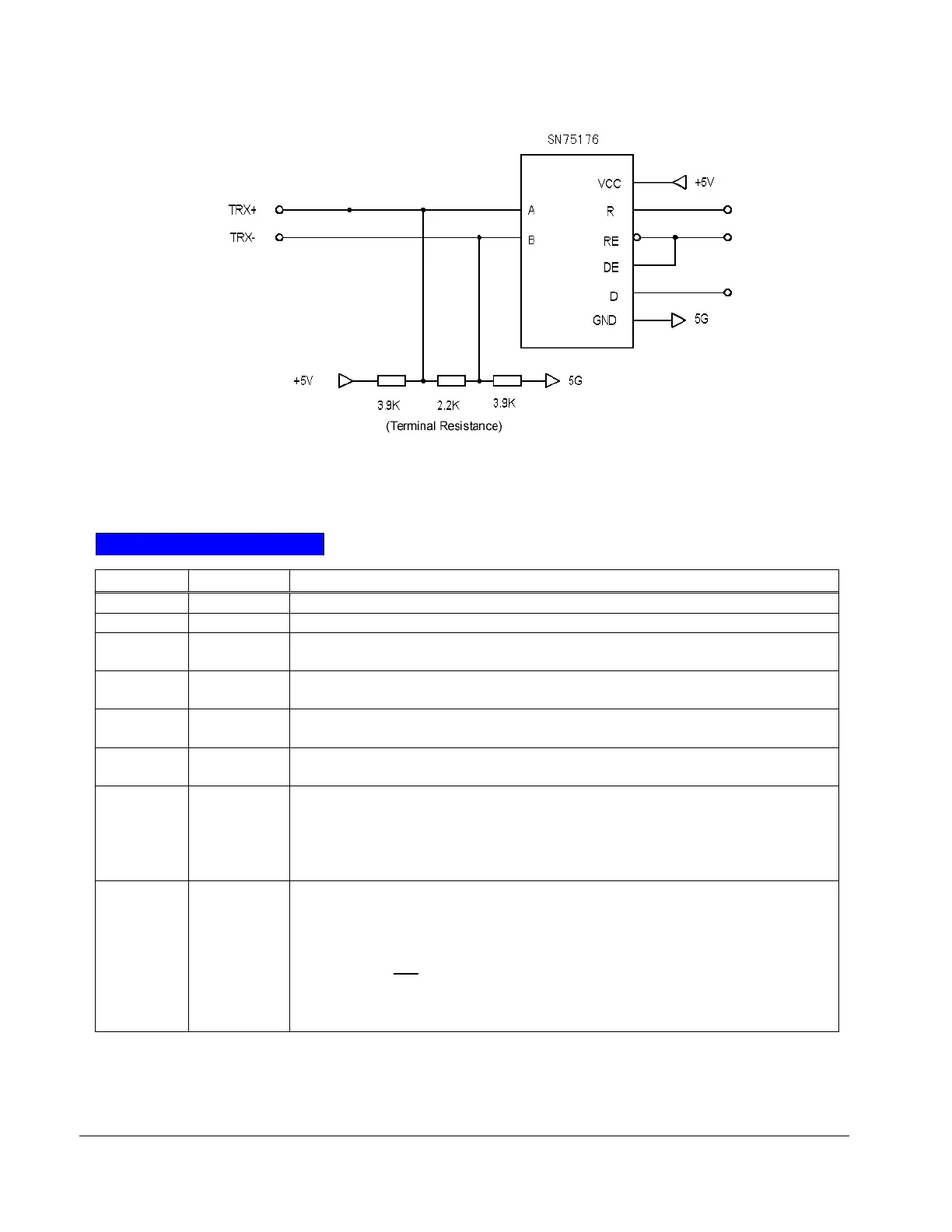

(3) SIO (Serial I/O) Circuit
6.2. PIO specifications
6.2.1. Input signals
Number Symbol Functions
1 +24V Power DC24V, positive
2 0VDC Power DC24V, common
3 PC1 Input of Position registration number: Total of PC1 to PC8
ON means 1, OFF means 0
4 PC2 Input of Position registration number: Total of PC1 to PC8
ON means 2, OFF means 0
5 PC4 Input of Position registration number: Total of PC1 to PC8
ON means 4, OFF means 0
6 PC8 Input of Position registration number: Total of PC1 to PC8
ON means 8, OFF means 0
7 CSTR Strobe input for Input of Position registration number
1. At the edge of OFF=>ON, the controller reads the sum of PC1~8, then it
will move the cylinder to the target position. (same as positioning order)
2. At the edge of OFF=>ON of when Home is unknown, it will move the
cylinder to home, then move it to the target position.
8 ILK Axis movement Interlock input
1. If turned OFF during a move, the cylinder will stop, then register the
position where the cylinder stopped as the temporary target position,
maintaining the original target position in memory.
2. When the ILK
signal is turned ON, the registered temporary position will
be deleted and the original target position will become the target
position. Motion will resume immediately. (“Cancel” function is also
available)
