Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-30/63
5. Specifications of Mechatronics Cylinder
5.1. Specification of Servo Cylinder
5.1.1. Specifications
Models -010-050 -010-100 -010-150 -010-200 -010-250 -010-300
Life 3 years after delivery or 10,000 km operation when applied within published specs
Stroke (mm) 50 100 150 200 250 300
Max thrust (N)/(kgf) 100/10.2
Max. thrust at push mode (N)/(kgf) 70/7.1
Max. speed (mm/s): typ. data 400 200 160 120
Speed at push force mode (mm/s) 7.5
Repeatability (mm) +/-0.01 (when homing to hard stop and pushing on same side)
Backlash (mm) 0.3
Radial load (N) 15 10 5 4 3 2.5
Shaft diameter (mm) 15 Dia
Shaft tip screw thread Standard: M10 Pitch 1.25 (303 SS)
Housing Extruded Aluminum
Positioning capacity 16 motions, each with programmable acceleration, velocity, position
Power DC24V+/-10% (max. 2.0 A)
Input
/Output
signal
Parallel input signal DC24V type DI/DO Interface (Connector PIO), Position number (4bit binary: PC1,PC2,PC4,PC8)
Start (CSTR), Axis Movement Interlock (ILK)
Input
Current
Max. 4mA / port
Parallel output signal Position complete (PFIN/INP), Homed signal (ZFIN), Zone signal(ZONE), Alarm (ALM),
24VDC Digital I/O Interface, PNP Standard
Output
Current
Max. 10mA / port
Serial signal Serial Interface (Connector SIO)
+5V, 5G, S+, S-
Protection Over speed, Main power over voltage, Voltage fault,
Overload, Sensor fault, Servo fault, Encoder wire disconnected
Ambient
conditions
Operation
Temperature
0
ﾟ
C ~ 40
ﾟ
C.
Storage temperature
-20
ﾟ
C ~ 60
ﾟ
C.
Operation/Storage
moisture
≦
90%RH, non condensing
Weight (kg) 1.1 1.2 1.4 1.6 1.8 2.0
Note 1) Specifications are subject to change without notice.
Note 2) Push force value as figure below is typical value. Actual value may vary.
SCN5 Mode
10K
T
pe
Notes: The max vertical load
force is 7 kgf.
Notes: Push force set is negative (-) value for the
shaft forward direction, positive (+) value for the
opposite direction.

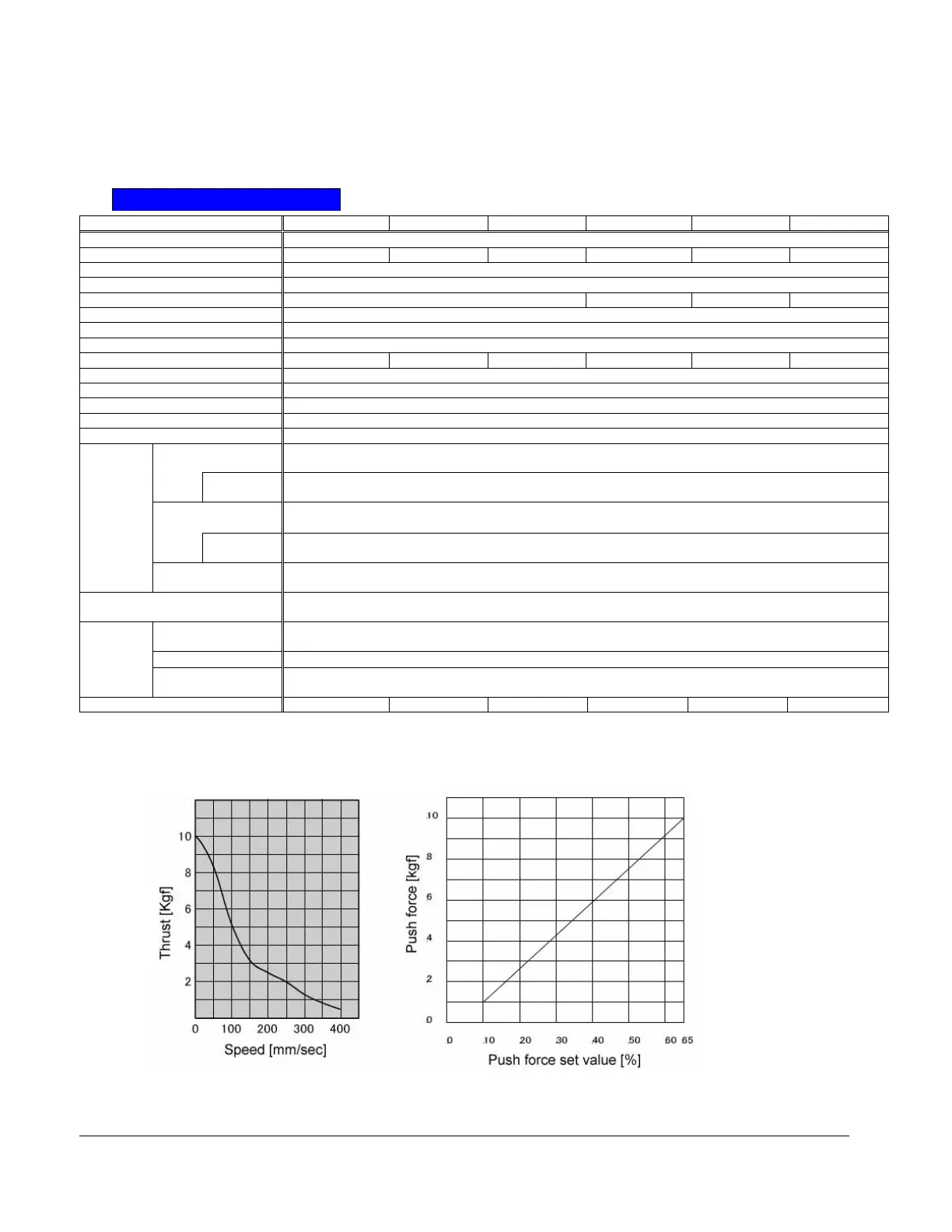

Push force set value vs Actual Push force Thrust vs speed
