7.3. RS232C/RS485 Junction Converter Circuit
(Model: ADP-1)
(1) Model No.: ADP-1

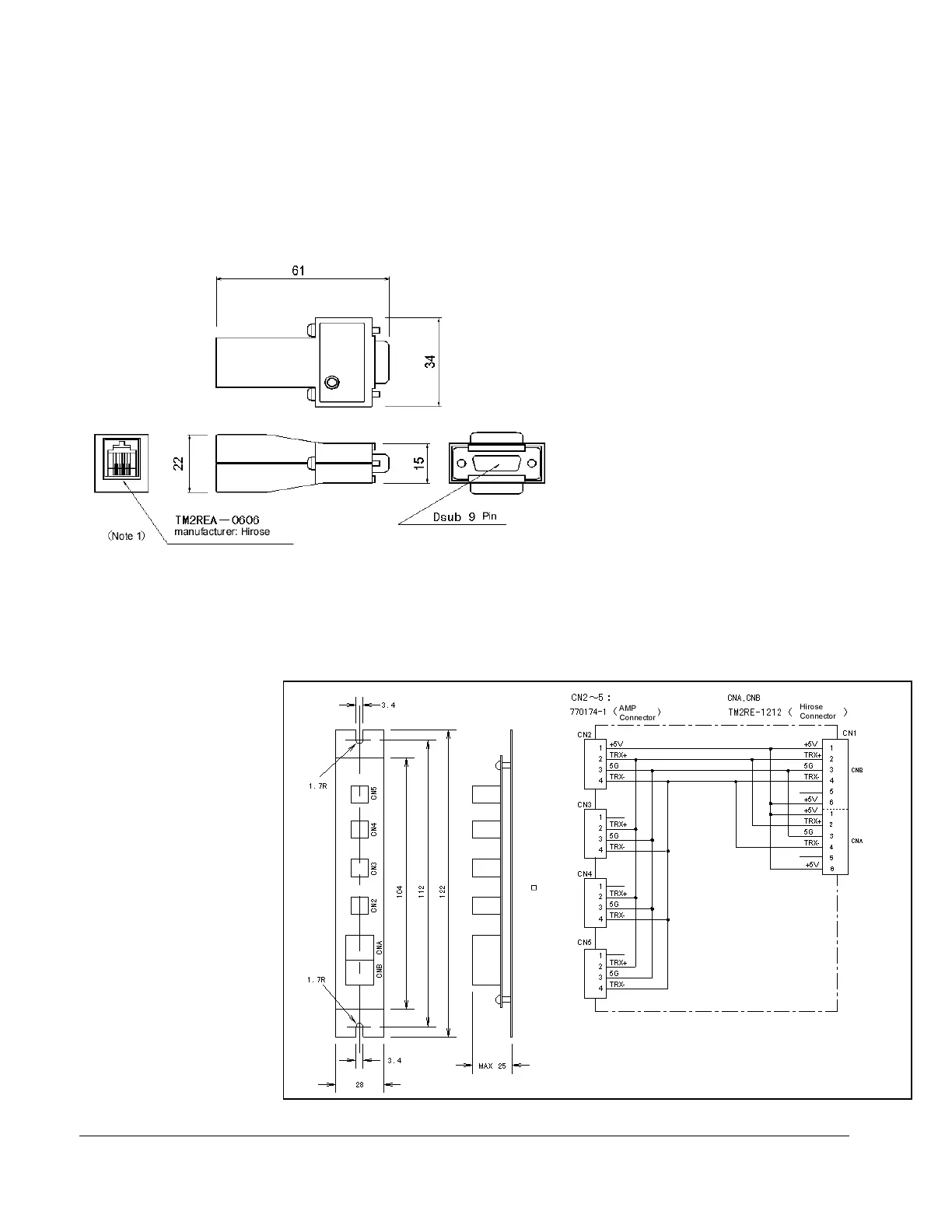

(2) Dimensions
Please refer to 4.4 (wiring examples of outside connections) for connector connection. Please use SIO
cable (6 conductors) for connector cable.
7.4. Connector Converter: ADP-2-4
(1) model: ADP-2
(2) Dimensions
and circuit diagram
(Note)
In case of ADP-2 use, please use at least one axis on
CN2.
Because CN3, CN4 and CN5 are not wired with +5V,
only CN2 is wired to +5V.
