Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-45/63
6. Interface specifications

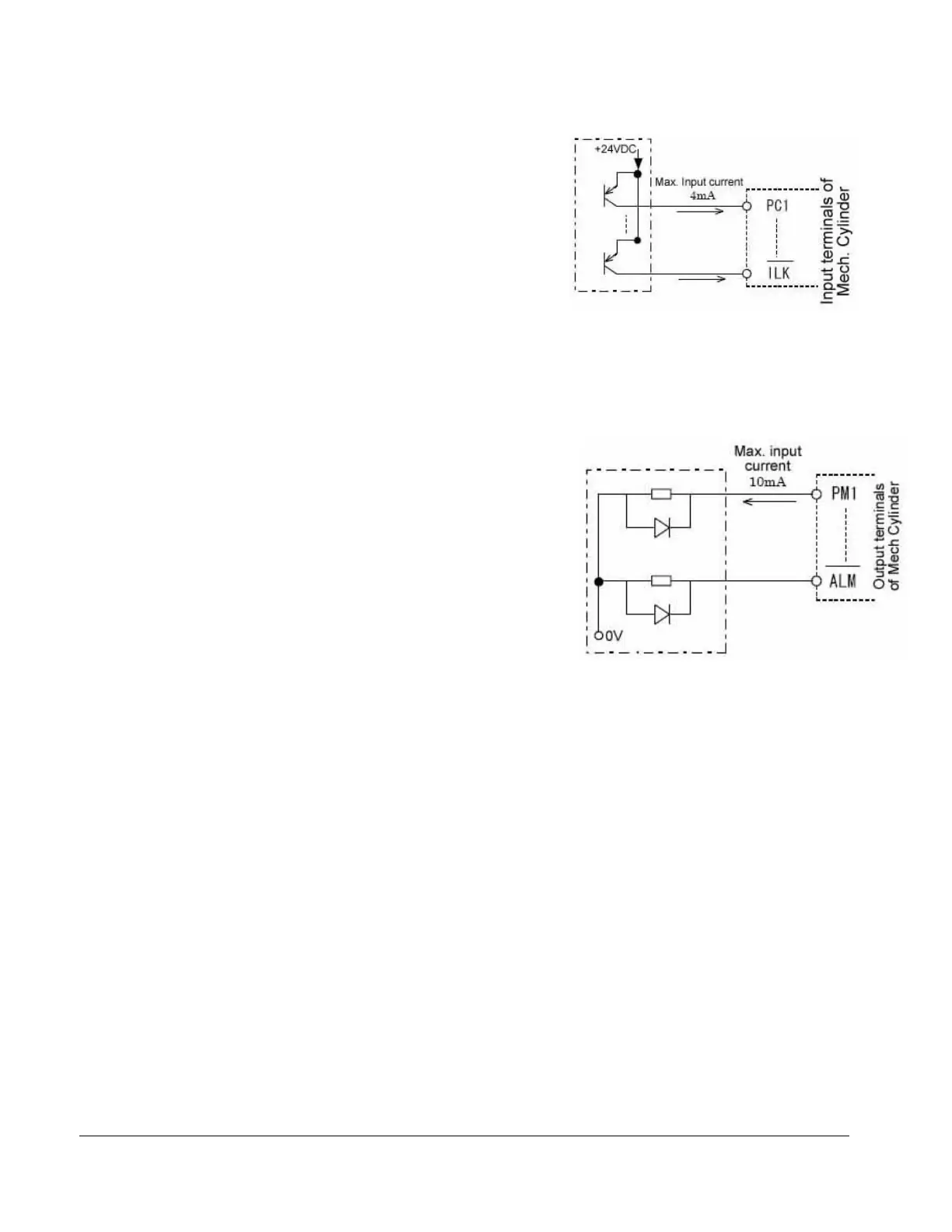

6.1. Circuit Diagrams for 24VDC I/O (PNP)
(1) PIO (24VDC) Input circuit
Input signal ON is defined as electrical connection of
+24V with Input signal.
Input signal OFF is electrical open of Input
signal. The max. input current is 4mA.
(2) PIO (24VDC) Output Circuit
Output signal ON is defined as electrical connection of OVDC with Output signal.
Definition of Output signal OFF is electrical open of Output signal
