6.3. Specification of SIO
In case of use of SIO, please refer the enclosed manual of “Termi-BUS Interface”.
6.3.1. Summary
Electrical specification: Compatible with RS485
Speed: Selectable in the range of 9.6 kbps ~ 115.2 kbps
(9.6 kbps only after the BREAK order)
Synchronizing method: Micro timing adjusting method
Data (1 character) length: 8 bit
Parity: None
Start/Stop bit: 1 bit
Xon/Xoff: Non
Pallet length: 16 characters
(Structure: STX + data 12 characters + check sum 2 characters x etx)
Connection type: BUS connection (multi point connections: Max 16 axes)
Connectors: Connectors made by AMP company

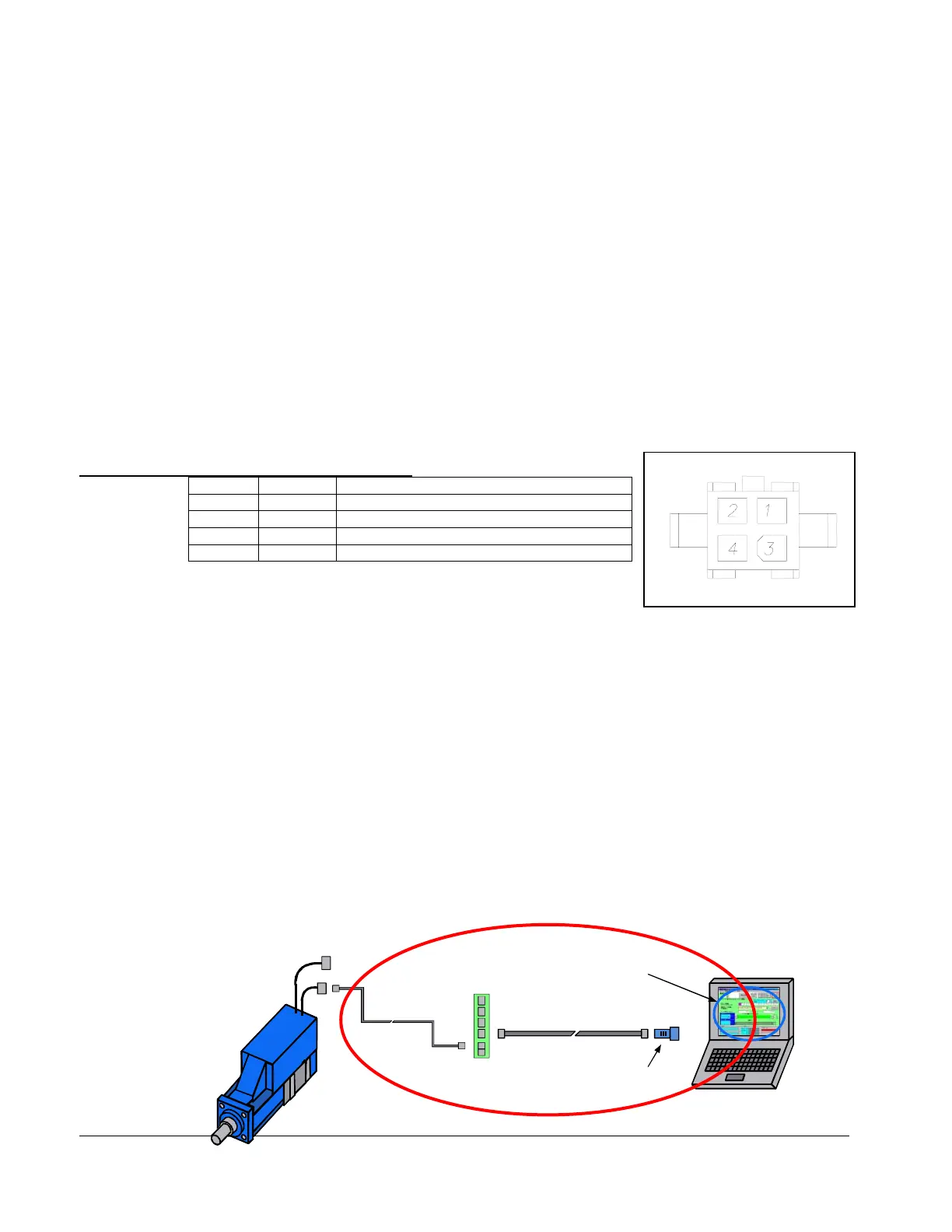

Mechatronics Cylinder Connector Pin Layout
No. Name Functions
1 +5V
2 TRx+ Transmitter/Receiver+
3 5G Signal Ground
4 TRx- Transmitter/Receiver-
7. Support equipment
7.1. PC Tool (Model: TBVST-EN-SET)
PC Tool is a PC software kit to operate JOG and other set up for single axis.
(1) Contents of PC Tool, Model: TBVST-EN-SET (see red circle in the following figure)
① -1 PC Setting Tool : TBVST-EN (to install it in PC for Online operation)
① -2 Offline Setting Tool : CTA-1EX (to install it in PC for Online/Offline operation)
① -3 PC PLC Software : CTC-Tool (to install it in PC for sequence program)
① -4 Motor Set Up Tool : MVST-EN (to install it in PC for RSA servo motor set up)
②
RS232/RS485 Adaptor : ADP-1 (to connect with PC serial port)
③
Connector Junction : ADP-2-4 (Junction for cables)
④
ADP Cable (1m) : RP9050-010 (to connect Mechatronics Cylinder and ADP-2-4)
⑤
SIO Cable (1m) : RP9041-010 (to connect ADP-1 and ADP-2-4)
Programming software
(TBVST-EN)
Connect with DC24V Power Suppl
y
Connect ILLK terminal with +24V
Connector Converter
（
ADP-2
）
SIO Cable, 1m
(RP9041-010)
A
DP Cable, 1m
(RP9050-010)
RS232/485 Converter
(ADP-1)
Tool kit Circled in Red
