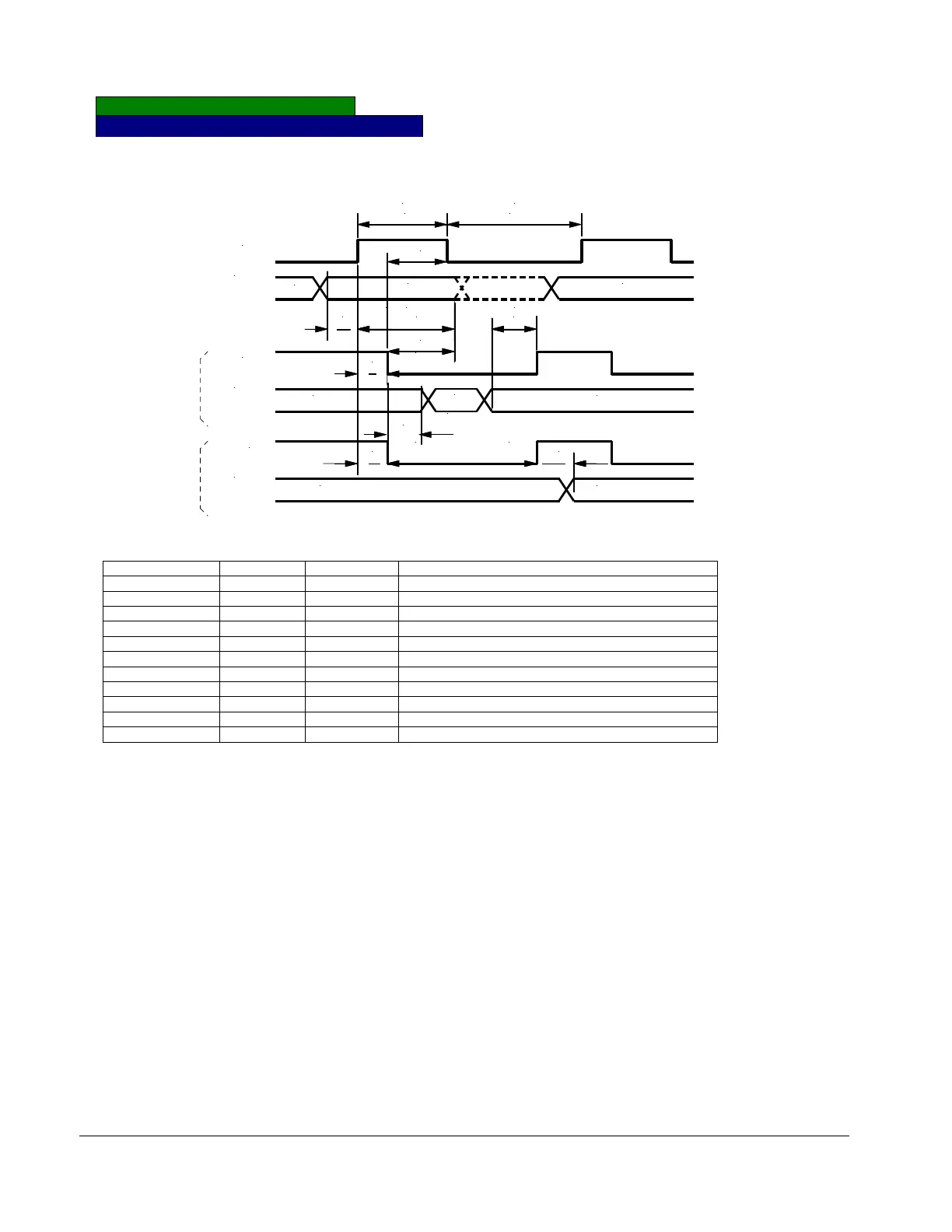

Dyadic Systems SCN6 - Page 52

. .
Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-52/63
Name Min. Max. Descriptions
twcs1 4 msec CSTR ON shortest timing duration
twcs0 4 msec CSTR OFF shortest timing duration
thcs 0 msec PFIN OFF=>CSTR holding time
tspc 0 msec CSTR ON=>PC1~PC8 set up time
thcspc 4 msec CSTR ON=>PC1~PC8 holding time
thpfpc 0 msec PFIN OFF=>PC1~PC8 holding time
tdpf 4 msec CSTR ON=>PFIN OFF delay time
tspm 0 msec PFIN ON=>PM1~PM8 set up time
thpm 4 msec PFIN OFF=>PM1~PM8 0 Output delay time
tdip 4 msec CSTR ON=>INP OFF delay time
tdpm 4 msec INP ON=> PM1 ~ PM8 establishment delay time
(Note 1) Above is timing in case of 10K Ω load of output circuit or smaller.
