Dyadic Systems SCN6 - Foot Mounting Brackets

. .
Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-57/63
(2) Serial connector cable (model: RP9050-030)
(applicable for any Mechatronics Cylinders)
1 +5V Red
2 TRx+ White
3 0V Black
4 TRx- Green
Connector Made by AMP Co.
Socket 172167-1
Plug 170365-1

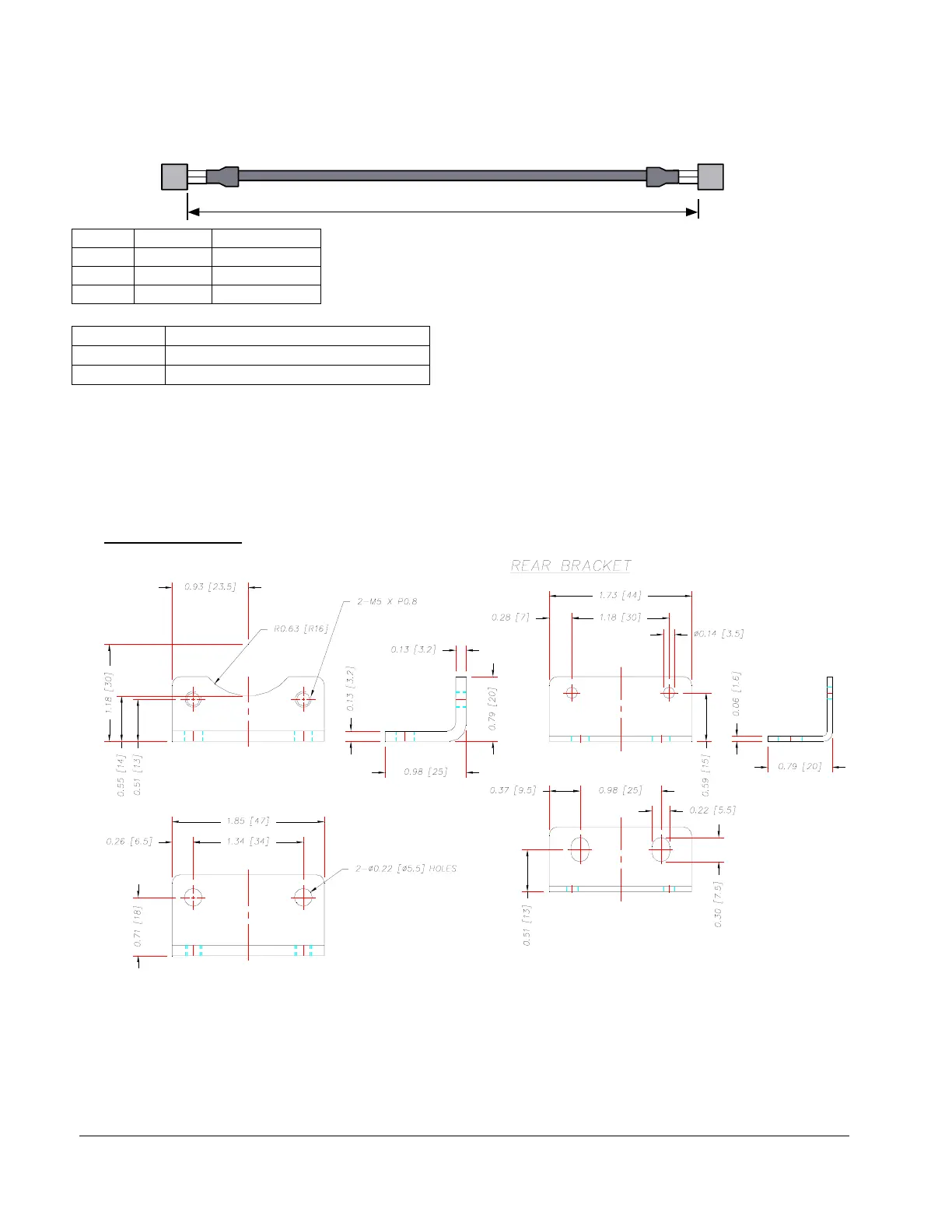

7.6. Foot mounting brackets
FT001: for SCN5
FRONT BRACKET
