Dyadic Systems – Mechatronics Cylinder Manual MF-005500-EN-54/63
Refer to the PC-Tool Manual for more information.
(2) How to install
Installation condition of PC is as follows:
WINDOWS 95, 98, 2000, NT 4.0
Please click the program button to start installation.
7.2. Teaching Pendant Tool (Model: CTA-23EN-SET)

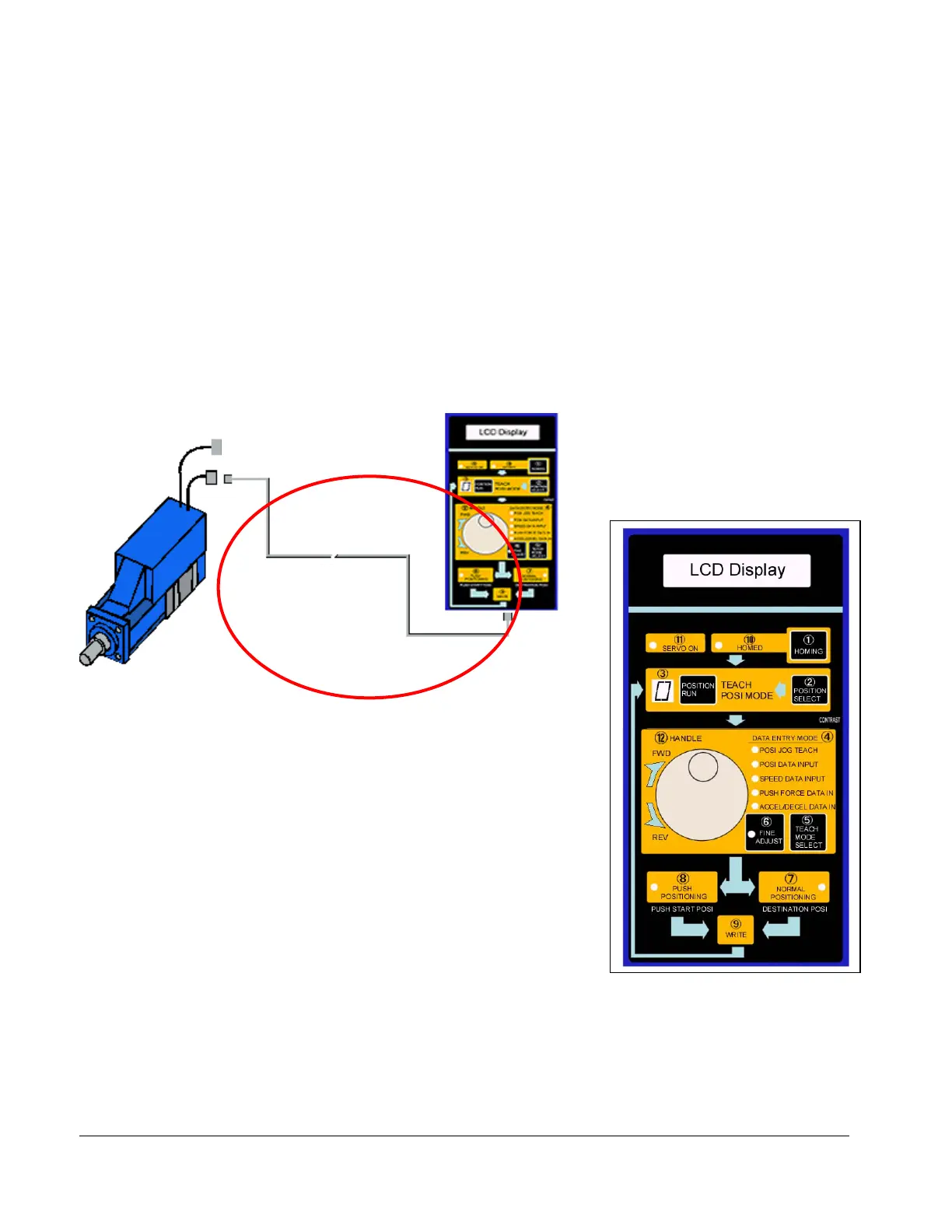

(1) Contents of Teaching Pendant tool kit, Model: CTA-23ENS-SET (see red circle in the following figure)
① Teaching Pendant : CTA-23EN (to connect with Mechatronics Cylinder)
②
ADP Cable (1m) : RP9050-010 (to connect Mechatronics Cylinder and CTA-23)
(2) View of Teaching Pendant
(3) Please refer to the Teaching Pendant operation manual
for details.
Connect with DC24V power suppl
y
Connect ILK terminal with +24V
ADP Cable, 1m
(RP9050-01)
Tool kit Circled in Red
