Maintenance Manual (960-945) 4-38
Replacement Procedures
2. Peel off the separators on the bound & detach tapes on the LCD cover.

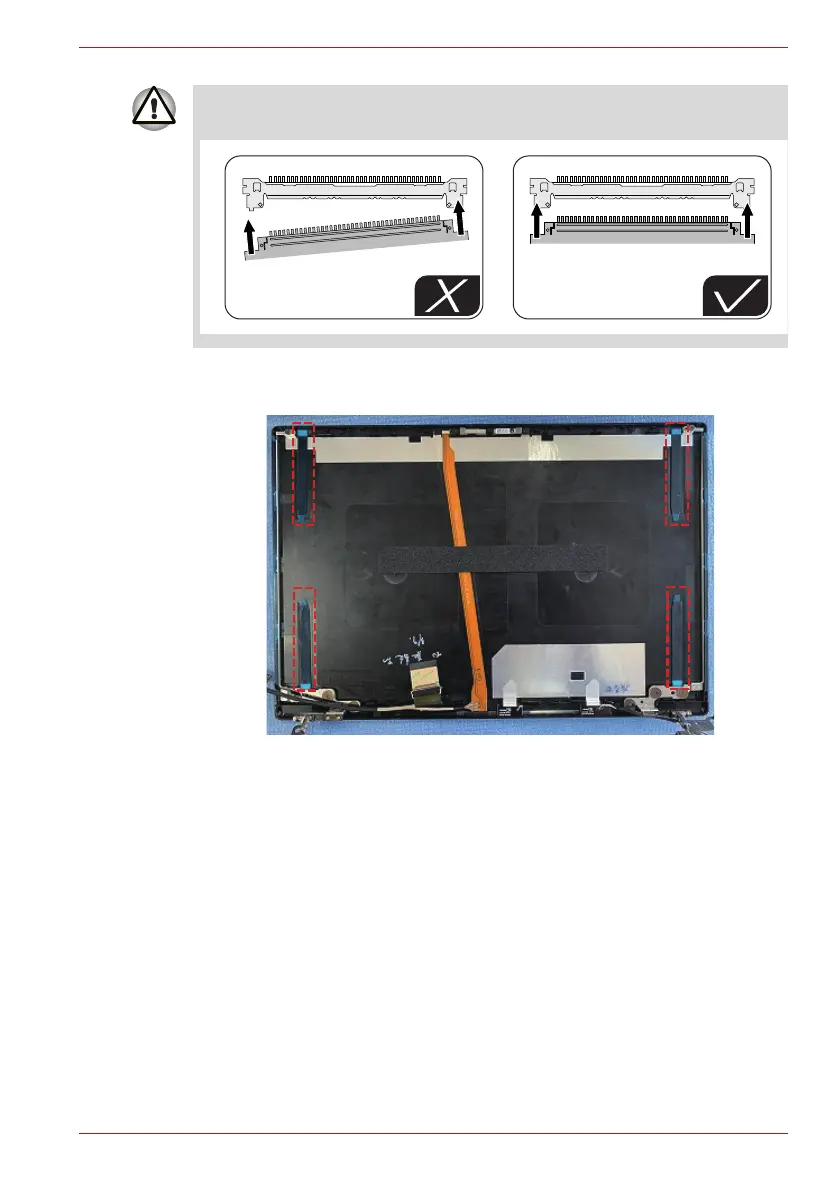

Figure 4-41 Installing the LCD unit (1)
3. Lift the separators a little away from the stick tapes on both left and right
edge side of the LCD cover.
4. Set the LCD unit in place.
5. Arrange the LCD/Webcam harness under the guides of the LCD cover.
When connect the LCD harness, make sure to connect the right and left
side at the same time as shown in the figure below.
