Maintenance Manual (960-945) 4-18
Replacement Procedures
4.16 Wireless LAN card
4.16.1 Removing the Wireless LAN card
To remove the Wireless LAN card, follow the steps below and refer to
Figure 4-17.
1. Peel off the INSU WL.
2. Disconnect the Wireless LAN antenna cable from the connector on
the Wireless LAN card (black cable from “AUX or “1” and white cable
from “Main” or “2”).
3. Release the Wireless LAN antenna cable from the guides on the
Cover Assembly.
4. Remove the screw securing the Wireless LAN card.
5. Disconnect the Wireless LAN card from the connector CN2630 on the
System Board (FMERSY*).

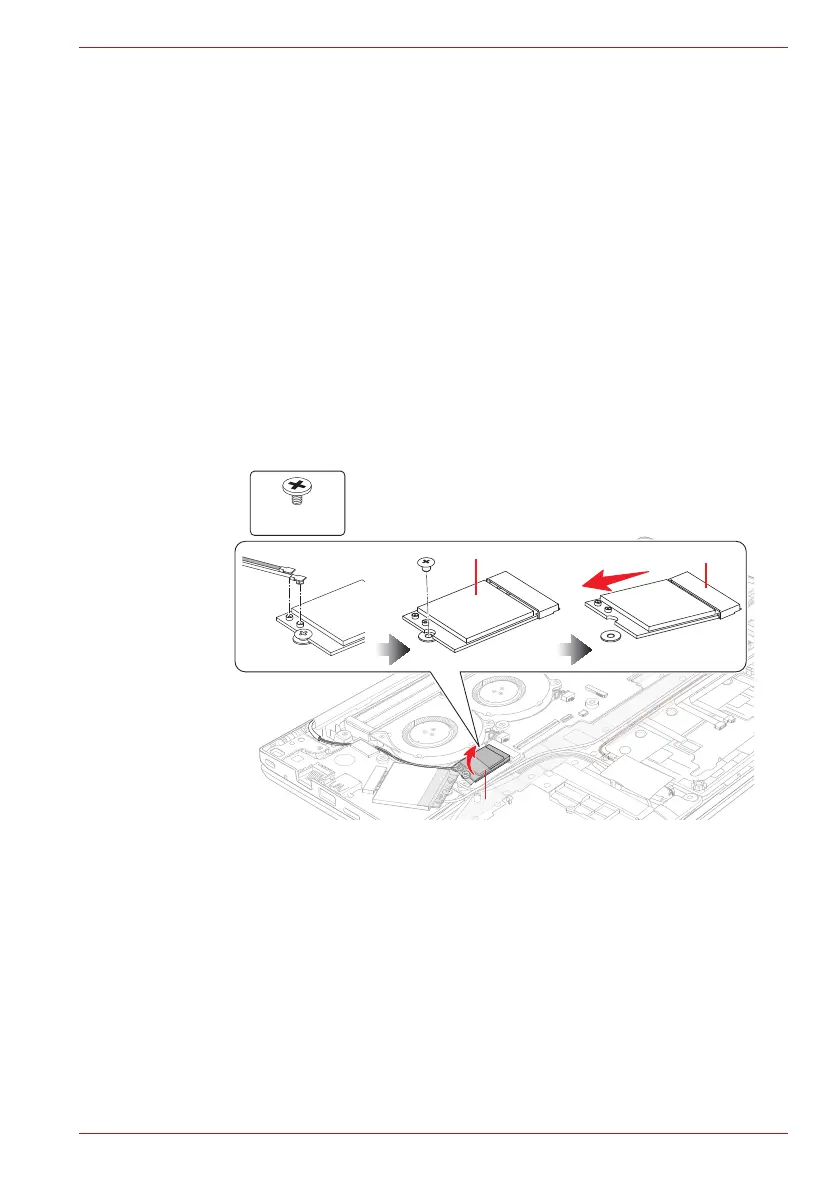

Figure 4-17 Removing the Wireless LAN card
4.16.2 Installing the Wireless LAN card
To install the Wireless LAN card, follow the steps below.
1. Insert the Wireless LAN card to the connector CN2630 on the System
Board (FMERSY*) slantwise and press it to connect firmly.
2. Push down the Wireless LAN card and secure it with the screw.
3. Arrange the Wireless LAN antenna cables to the guides.
4. Connect the Wireless LAN antenna cables to the connectors (black
cable to “AUX” or “1” and white cable to “Main” or “2”) on the Wireless
LAN card.
5. Stick a new INSU WL in place.
S2 x 2.3CT
Insu WLInsu WLInsu WL
AUX (1)
Main (2)
Wlan Card
CN2630
