dynabook TECRA A40-J Series - Display Hinges; Figure 4-43 Installing the LCD Unit (3); Figure 4-44 Installing the LCD Unit (4)

Maintenance Manual (960-945) 4-40
Replacement Procedures

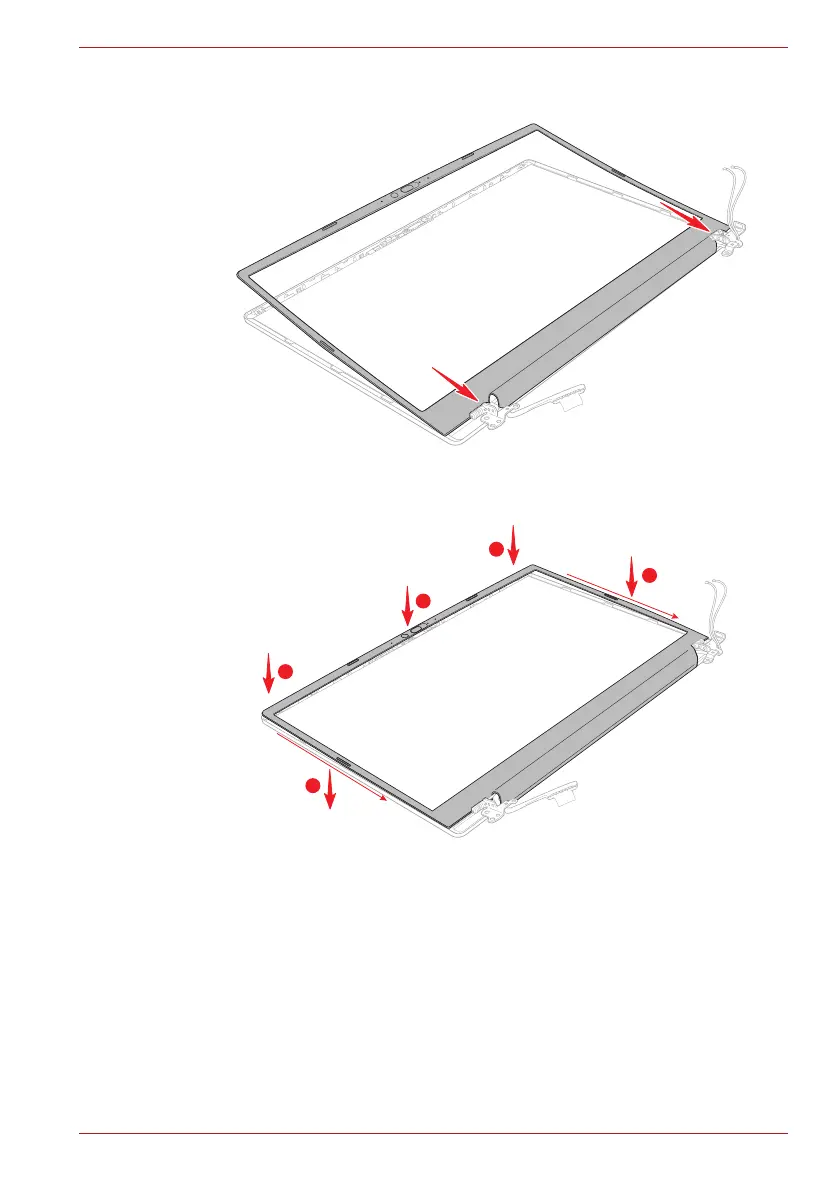

Figure 4-43 Installing the LCD unit (3)
8. Set the LCD mask on the LCD cover while engaging all the latches.
Figure 4-44 Installing the LCD unit (4)
4.28 Display hinges
4.28.1 Removing the display hinges
To remove the display hinges, follow the steps below and refer to Figure 4-
45.
1. Release the following screws and remove the left & right hinges.
■ S2x2.5BT x2 (Described as “1” in the figure)
■ SH2.5x2.5BT x6 (Described as “2” in the figure)
