Maintenance Manual (960-945) 1-7
Hardware Overview
Figure 1-3 is a view of the keyboard. See Appendix E about the layout of
the keyboard.

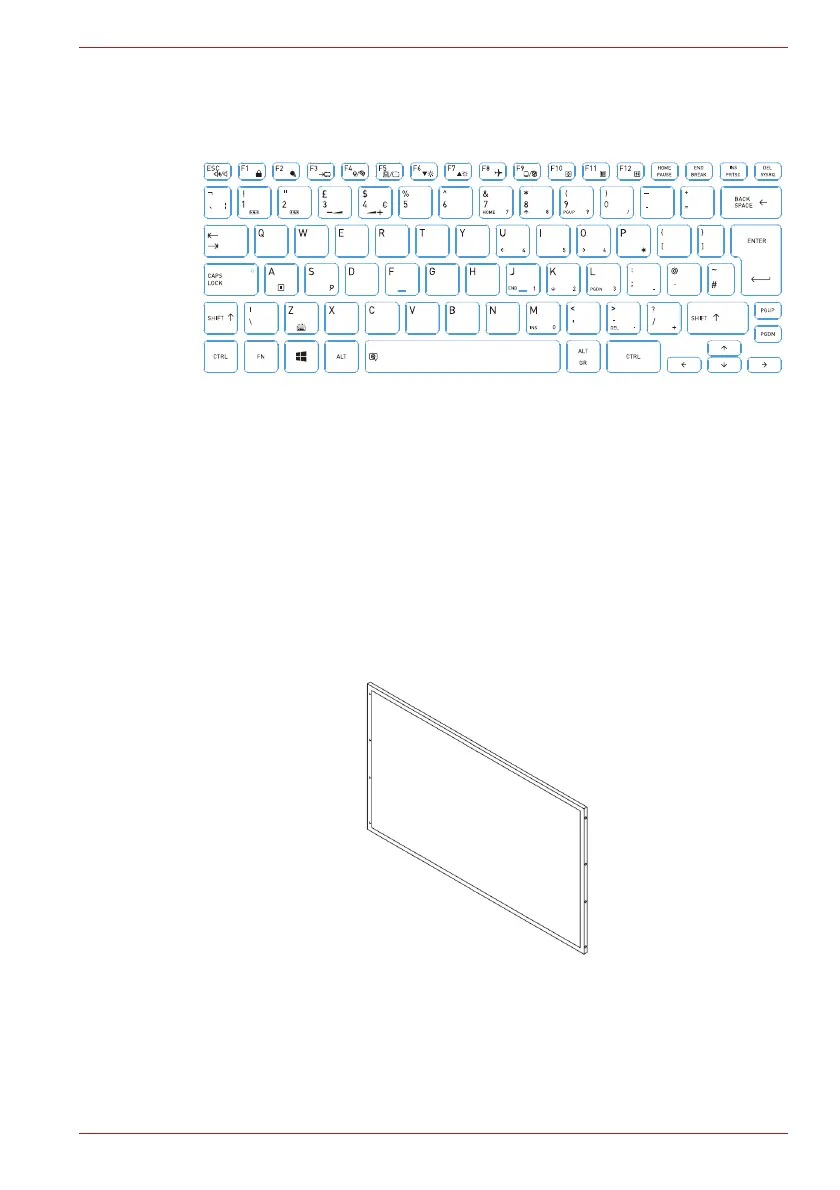

Figure 1-3 Keyboard
1.4 Display
The display consists of 14.0-inch FHD LCD module.
1.4.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the
light source and can display a maximum of 16M colors with 14.0-inch HD
(1366x768) or FHD (1920x1080) resolutions.
Figure 1-4 shows a view of the LCD module and Table 1-3 lists the
specifications.
Figure 1-4 LCD module
