10 CA 150 M150EN2
EVERY 10 OPERATING HOURS (Daily)
1
2
2 1 1 2
1
2
Never work under the roller with the engine
running. Park on a level surface. Block the
wheels securely.
It is important to consider movement of the
drum when the machine turns, ie, the scrapers
can be damaged or wear of the drum may
increase if adjustment is made closer than the
values stated.
If necessary, adjust distance to the drum as follows:
the scraper is integrated with the beam.
Loosen the four screws (2) on the frame side, then ad-
just the beam to about 20 mm (0.8 in) from the drum.
Tighten the screws.
Scrapers
– Check/Adjust

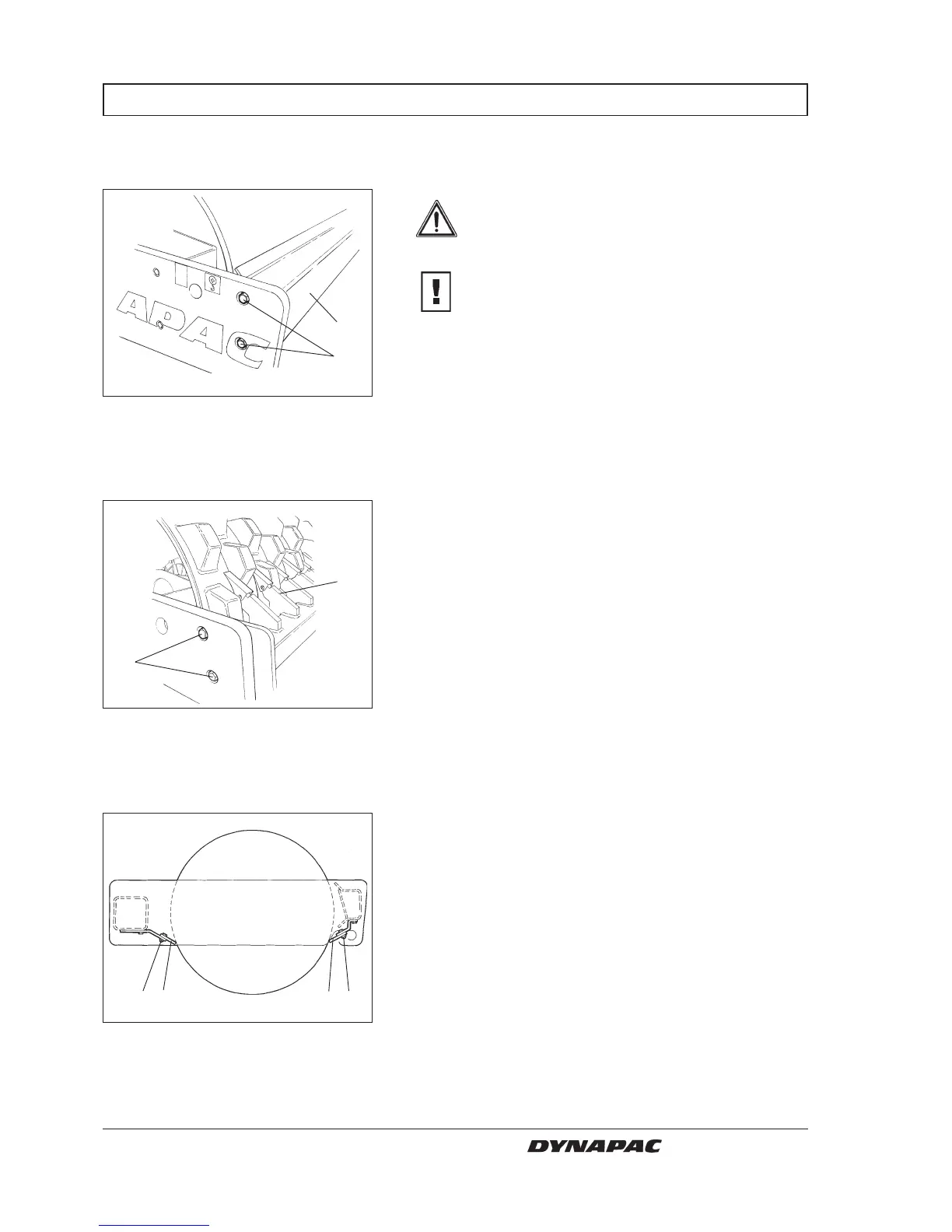

Fig. 2 Scrapers
1. Scraper beam
2. Screws
Soft scrapers (Optional)
Loosen the screws (2) and adjust to light contact
against the drum. Tighten the screws.
Fig. 4 Scrapers
1. Scraper blade
2. Screws
Fig. 3 Scrapers
1. Scraper blade
2. Screws
CA 150 PD/P
Loosen the four screws (2) on the frame side, then ad-
just the beam to about 25 mm (1 in) between the teeth
and the drum.
Tighten the screws.
CAUTION
WARNING
