17CA 150 M150EN2
Rear axle differential
– Check oil level

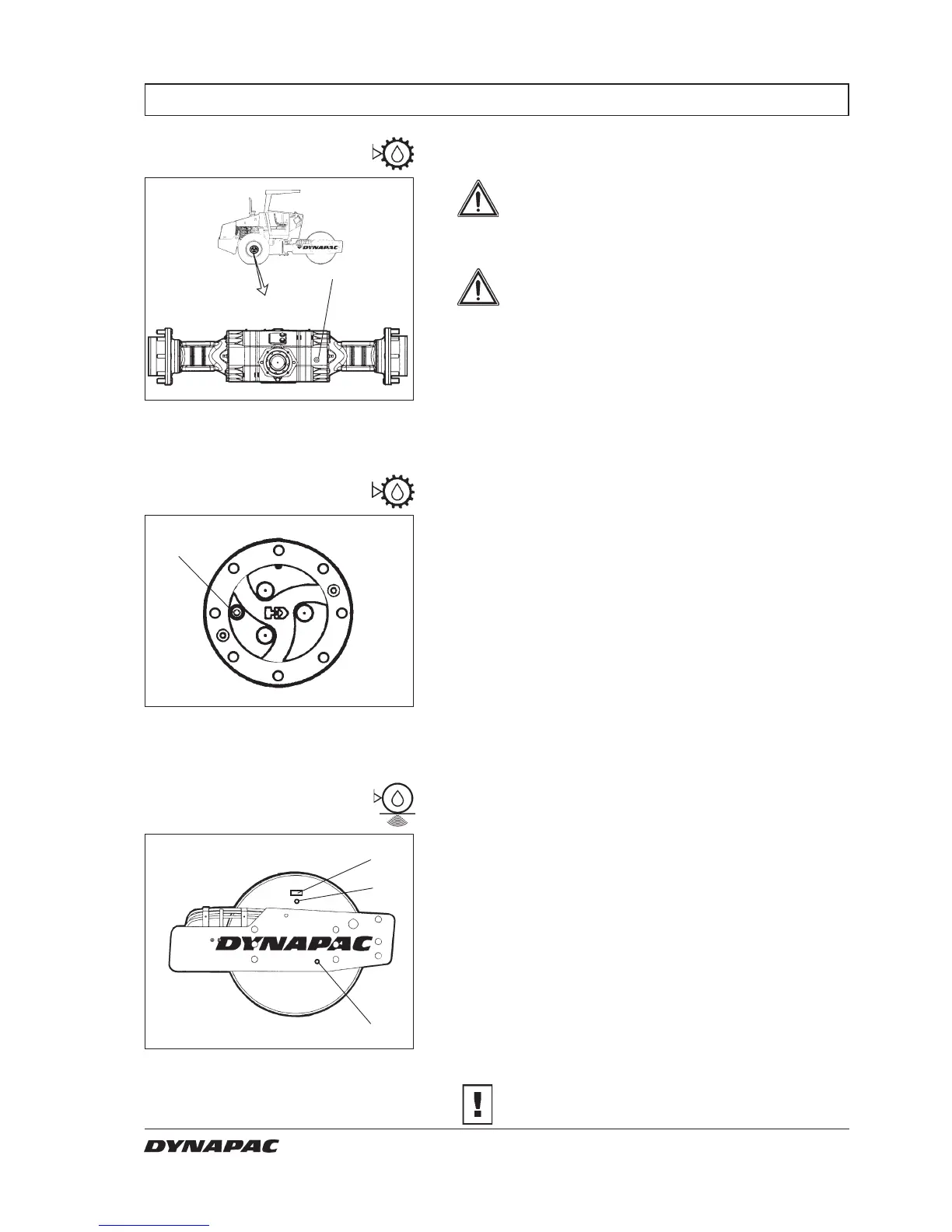

Fig. 18 Oil level check – differential
housing
1. Oil level/Filler plug
Rear axle planetary gears
– Check oil level
Fig. 19 Oil level check – planetary gear
1. Oil level/Filler plug
Fig. 20 Right side of drum
1. Filling plug
2. Number plate
3. Sight glass
Position the roller on a flat surface so that the filler plug
(1) and number plate (2) on the right side of the drum
are straight up.
Oil level should reach up to the sight glass (3).
Top off as required through the filler plug (1) halfway on
the sight glass.
Clean the magnetic filler plug (1) from any metal parti-
cles before refitting it.
See lubricant specification for the right grade of oil.
Do not overfill with oil, risk of overheating.
Drum
– Checking the oil level
1
3
2
1
1
Place the roller on a level base. The engine
must be switched off and the parking brake
applied for all checking and adjustments
on the roller unless stated otherwise.
Never work under the roller with the engi-
ne running. Park on a level surface. Block
the wheels securely.
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil according to the lubricant
specification.
Position the roller with the level plug (1) in the planetary
gears at 9 o’clock.
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil according to the lubricant
specification.
Check the oil level in the same way in the rear axle’s
other planetary gear.
EVERY 250 OPERATING HOURS (Monthly)
WARNING
WARNING
CAUTION
