Open the engine cover to gain access to the water and
hydraulic coolers.
Ensure that the flow of air through the coolers (1) and
(2) is unobstructed.
Clean a dirty radiator using compressed air or a high-
pressure water jet. Blow or wash the radiator in the
opposite direction to that of the cooling air.
Take care when using a high-pressure water
jet; do not hold the nozzle too near the cooler.
The cooler may otherwise be damaged.
Wear protective goggles when working
with compressed air or high-pressure
water jet.

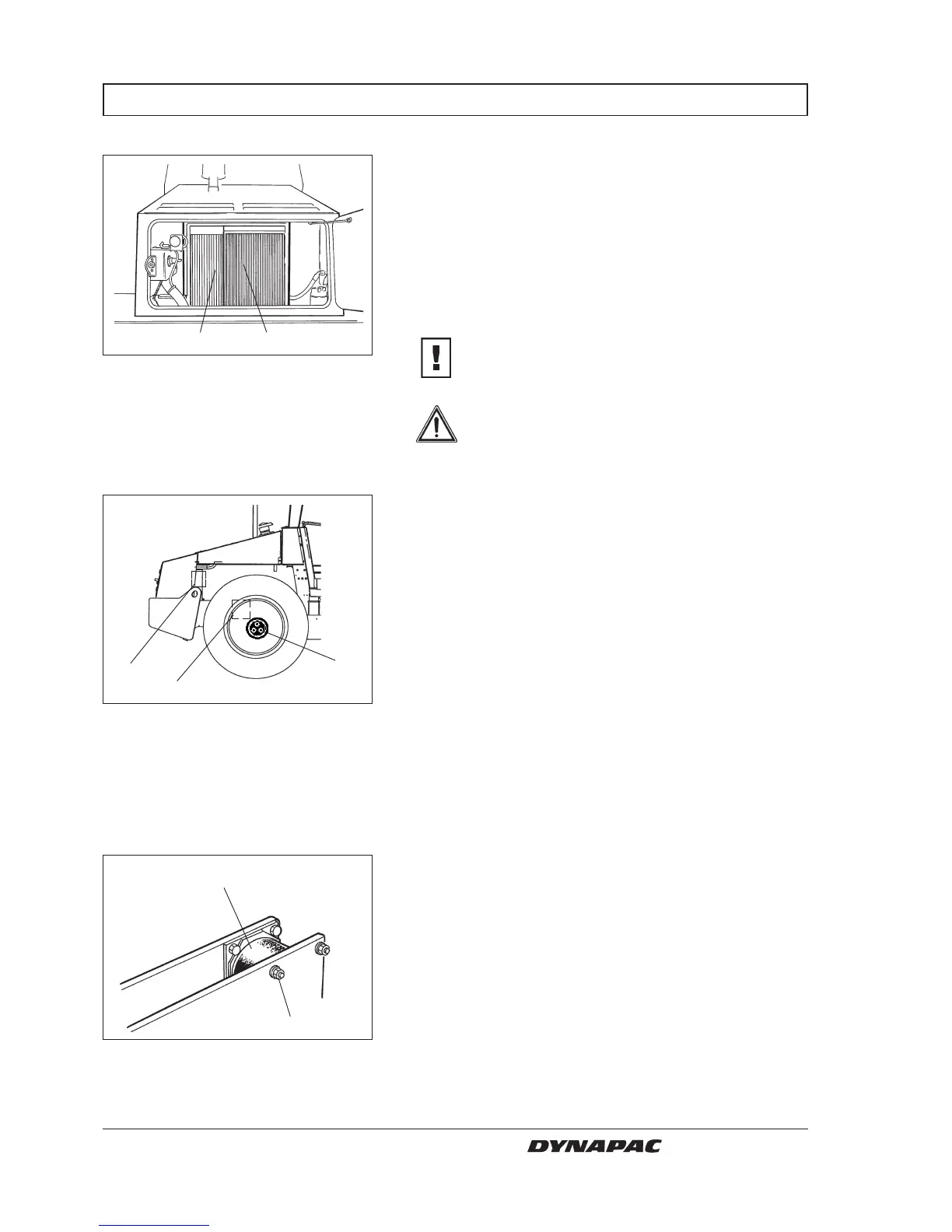

Fig. 21 Hydraulic cooler
1. Water cooler
2. Hydraulic fluid cooler
Coolers – Checking/cleaning
21
Bolted joints
– Checking tightening torque
Fig. 22 Right side of machine
1. Rear axle
2. Engine suspension
3. Wheel nuts
Rear axle suspension (2) 330 Nm (243 lbf.ft), oiled.
Engine suspension (3). Check that all M12 bolts (x20)
are tightened, 78 Nm (57 lbf.ft).
Wheel nuts (4). Check that all nuts are tightened, 470
Nm (347 lbf.ft), oiled.
(The above applies to new or replaced components
only.)
Check all the rubber elements (1), and replace them all if
more than 25% of the elements on the same side of the
roller have cracks deeper than 10–15 mm (0.4-0.6 in).
Use a knife blade or other pointed tool when carrying
out this check.
Check also that the screw fasteners (2) are tightened.
Fig. 23 Roller, vibration side
1. Rubber element
2. Screw fasteners
1
2
2
1
3
EVERY 250 OPERATING HOURS (Monthly)
CAUTION
WARNING
Rubber elements and screw
fasteners – Check
