3.15 Survey
The UTP2 Survey mode is a powerful yet easy way to collect and store data from a range of assets. Data from
TEV, Cable PD, Ultrasonic or UHF measurement modes can be recorded and stored with corresponding
metadata linking the data and its associated context.
All data recorded on the UTP2 takes the form of a survey in order to give the data context and a common
structure for use when analysing the data offline.
3.15.1 Create a Workflow using the Workflow Generator
Workflows are a pre-populated description of the measurements to be undertaken as part of a substation
survey. A workflow consists of information regarding the assets and the specific measurements per asset that
are to be performed.

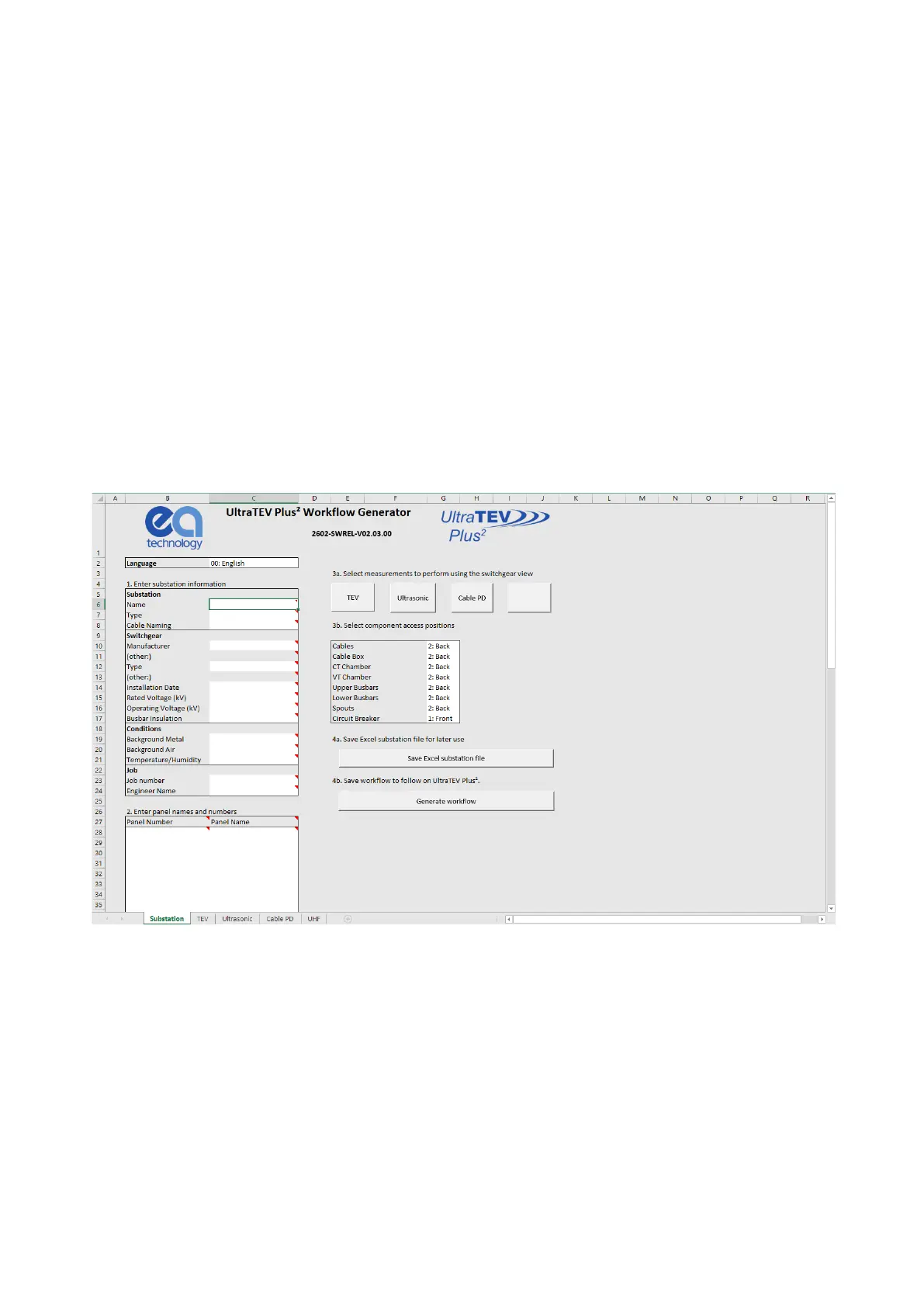

Insert the UTP2 SD card into your PC or laptop and open the Workflow Generator with Micorsoft Excel.
