2388-MANUL-V10.00.00-UTP2 Operating Manual
Page 17 of 74

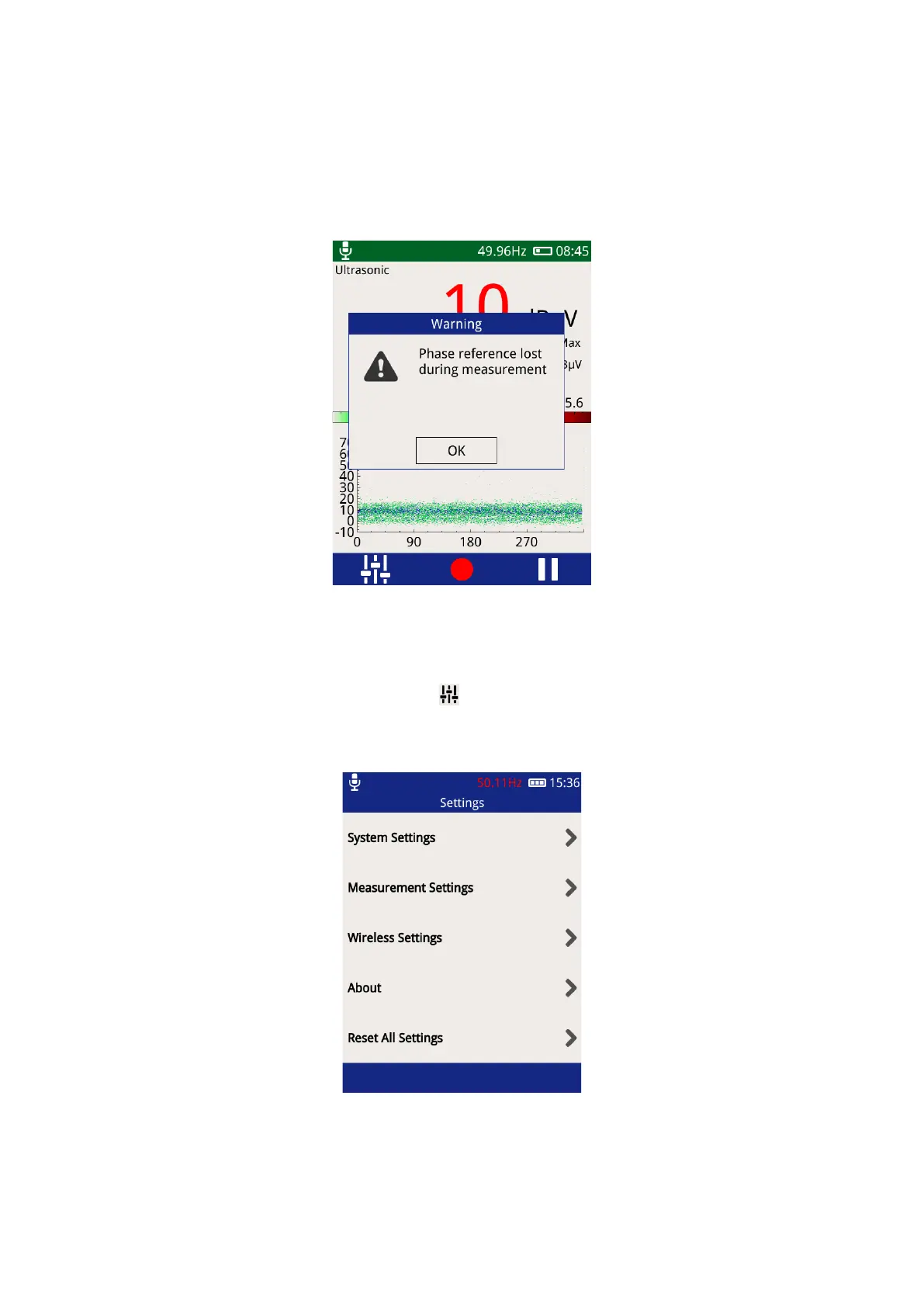

During a data capture the UTP2 monitors the phase lock to ensure a continuous sync is achieved. If the phase
lock is lost at any time during a capture the unit displays a warning message on completion of the recording.
Every attempt should be made to ensure a phase lock is present as the lack of this may affect the analysis of
the data captured.
3.12 Settings Screen
To access the settings page, click the Settings icon on the Main Menu and the screen shown below will be
displayed.
