Eagle 200-DC - Easy Release Alignment; Gate Arm Installation

7
BY
EA
G
LE
A
C
C
ESS CON
TR
OL
SY
STEMS,
IN
C.

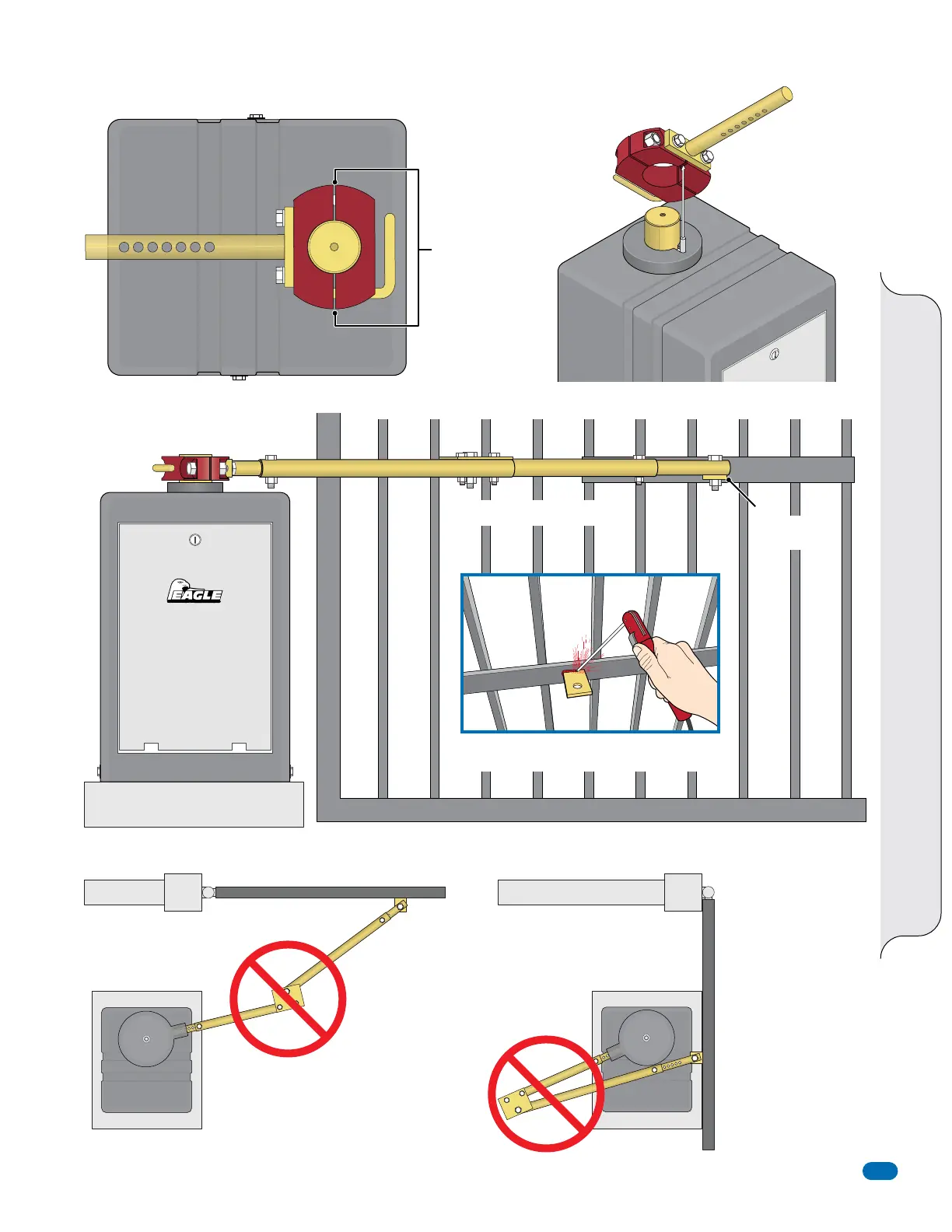

Easy Release Alignment
Gate Arm Installation
Pin MUST fit into slot.
Support Bar
Bottom of
Easy Release
Slot
Pin
BY EAGLE ACCESS CONTROL SYSTEMS, INC.
Arms MUST be Level!
NO
NO
Closed Gate
Open Gate
Arms MUST be FULLY extended and
in the locked position when the gate
is fully closed. Failure to do this
could result in serious injury.
DO NOT allow arms to
scissor when the gate
is fully open. This will
put too much stress
on the arms and
operator when the
gate is cycling.
Gate
Attachment
Bracket
Weld completely around gate attachment bracket
AFTER arm measurements have been determined.
These two
gaps should
remain even
for proper fit.
COMMON MISTAKES TO BE AWARE OF:
Support Bar
Installation
