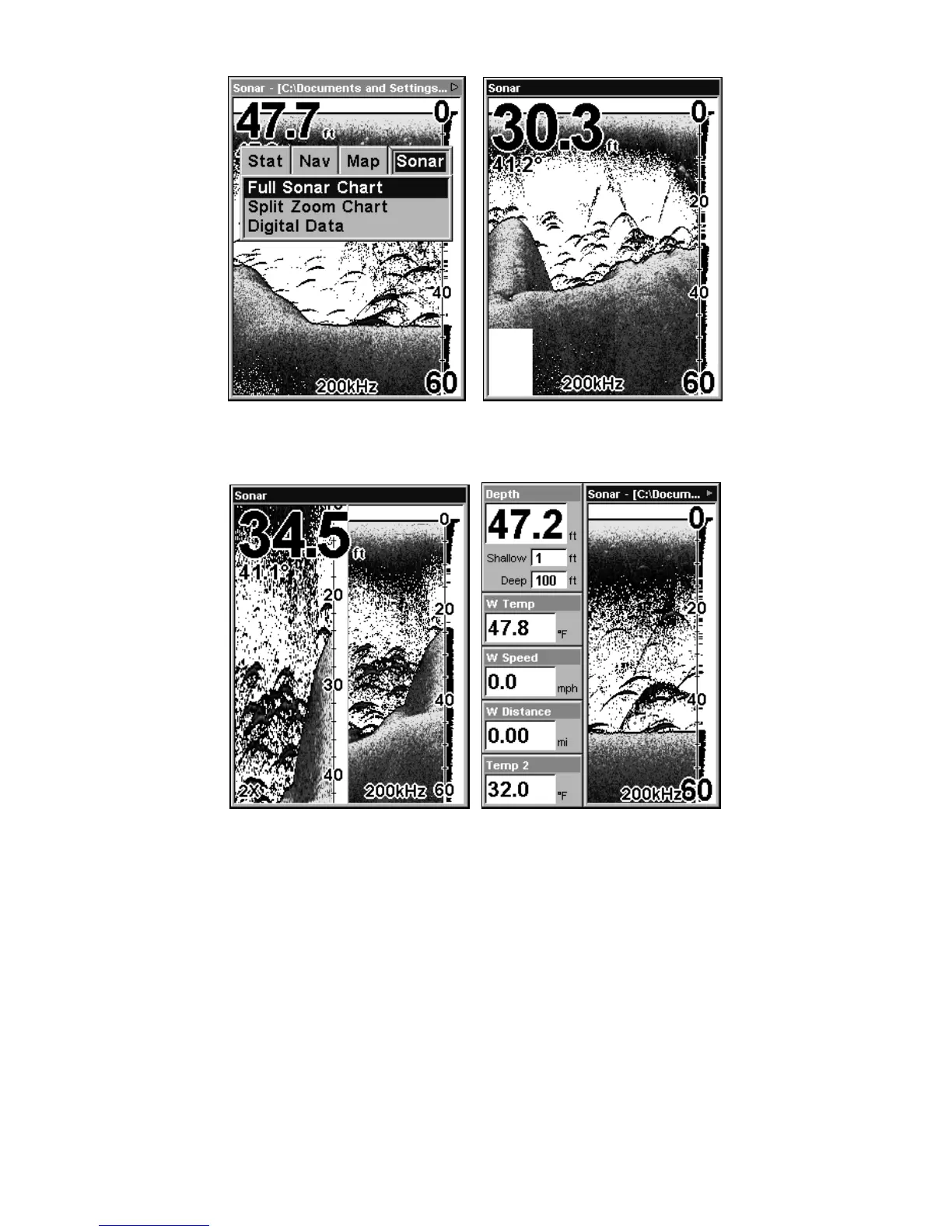

At left, Pages Menu, showing sonar chart display option commands.

At right, Sonar Page in full sonar chart display mode.

Sonar chart display options (from left) split zoom and digital data.
