EasyIO FW Series – Network Connectivity v2.0
33

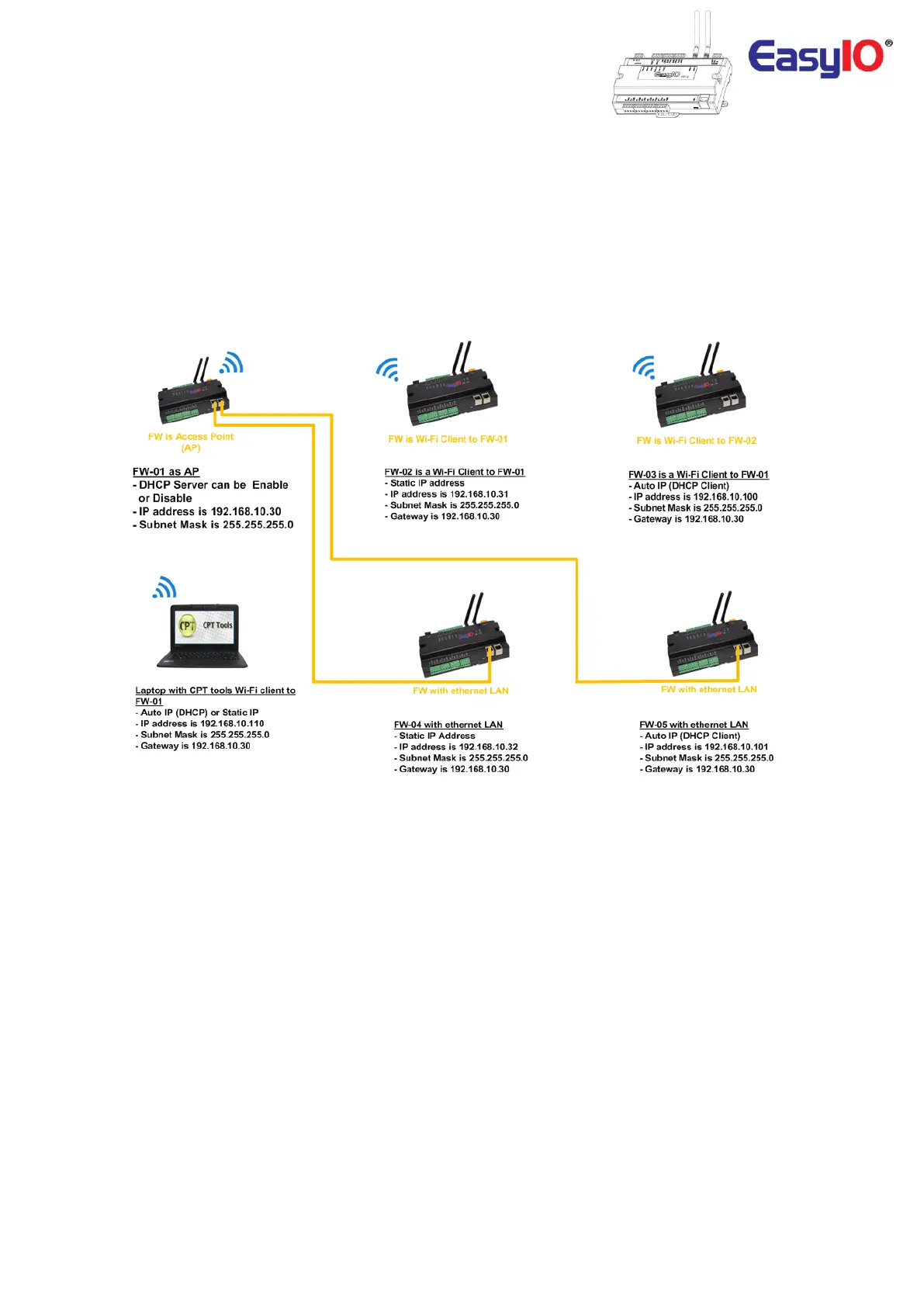

The below Diagram 03 shows that FW-01 is an Wi-Fi access point (AP) and a ethernet access point as
well.
FW-01 is DHCP server.
FW-02 and FW-03 are Wi-Fi clients with one FW is DHCP client and the other FW has static IP address.
FW-04 and FW-05 are ethernet clients with one FW is DHCP client and the other FW has static IP address.
**Recommendation : For static IP address assignment please assign other than 100~199 range as this is
reserved for DHCP server**
Diagram 03
