Eaton M-Max series Quick Start Guide

M-Max Series adjustable frequency drive
MN04020002E
For more information visit: www.eaton.com 25
February 2010

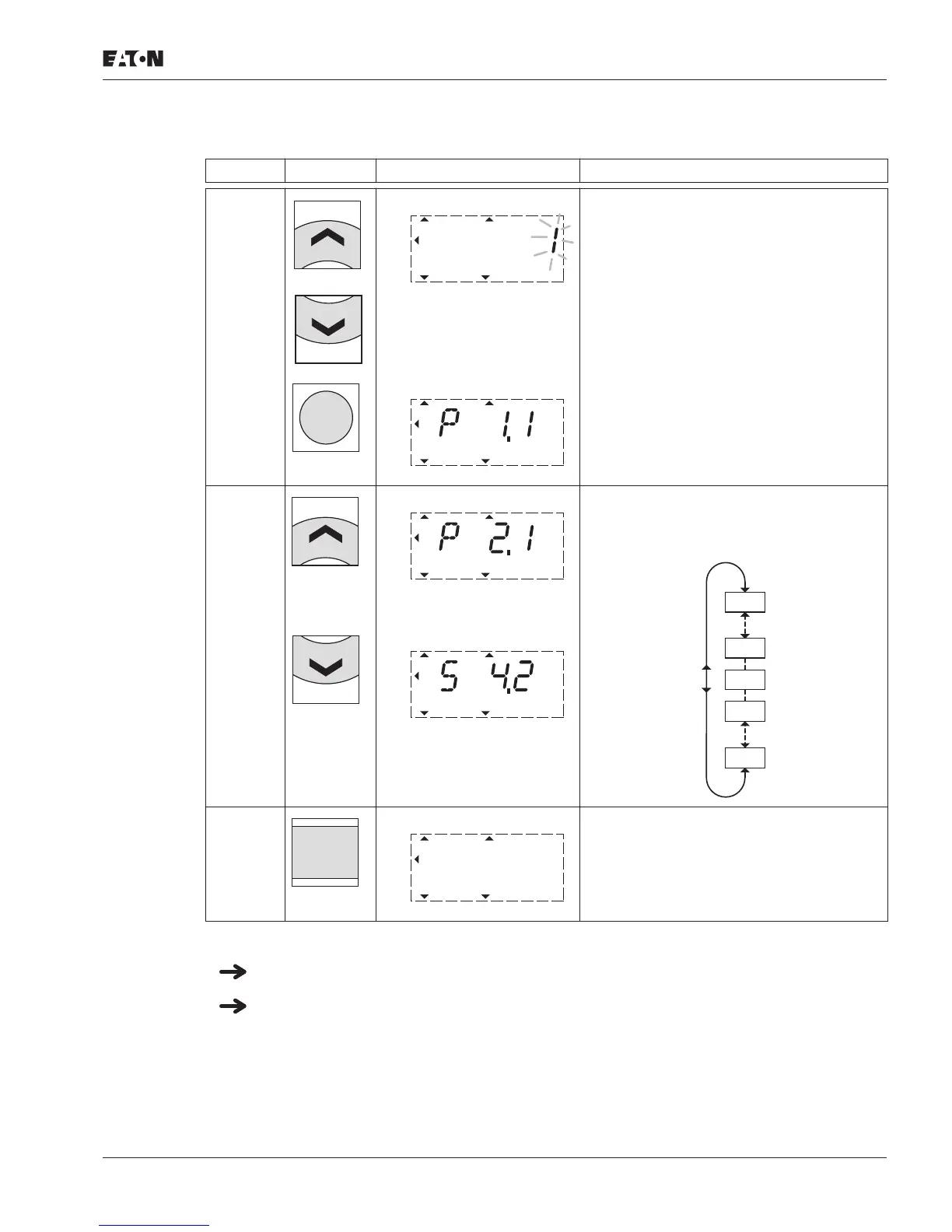

Table 8: LCD Display in Operation (continued)
Sequence Commands Display Description
3 If the parameter value is flashing, you can use
the two arrow keys to change the value within
the permitted range.
The selected value is confirmed with the
OK button.
The display now changes automatically
between the new value and the respective
parameter number.
4 The other parameters in the main menu PAR
can be selected with the two arrow keys
(closed circuit, Example: Factory setting).
5 By actuating the BACK/RESET button, you
exit main menu PAR (arrow flashes, see
sequence 1)
All settings are stored automatically by actuating the OK button.
Parameters marked in column "Access right RUN“ with ✔ can be changed
during operation (RUN mode).
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
OK
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
P14.16
P2.1
P1.1
S4.2
S1.1
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
BACK
RESET
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
