Quick start wizard
The quick-start wizard guides you in the quick configuration through all important settings
that have to be made or that you should check for your application (see A in Figure 13). The
parameters that are called during the process are listed in Table 10 on Page 32 in column
Basic (Standard Drive).
The quick configuration is completed when the frequency display M1.1 is activated
automatically. Selecting the PAR main menu again enables you to call up the parameters
of the quick configuration.
Besides the parameters of the Quick Configuration, system parameters S1.1 to S4.2 are also
shown after the initial setting. With P1.1 = 0 you can select access to all parameters; the keys
of the operator panel are fully functional (free parameterization, see B in Figure 13).
This exits the quick-configuration and the guided setup with the quick-start assistant.
The process is run from parameter to parameter.
Returning is not possible here.

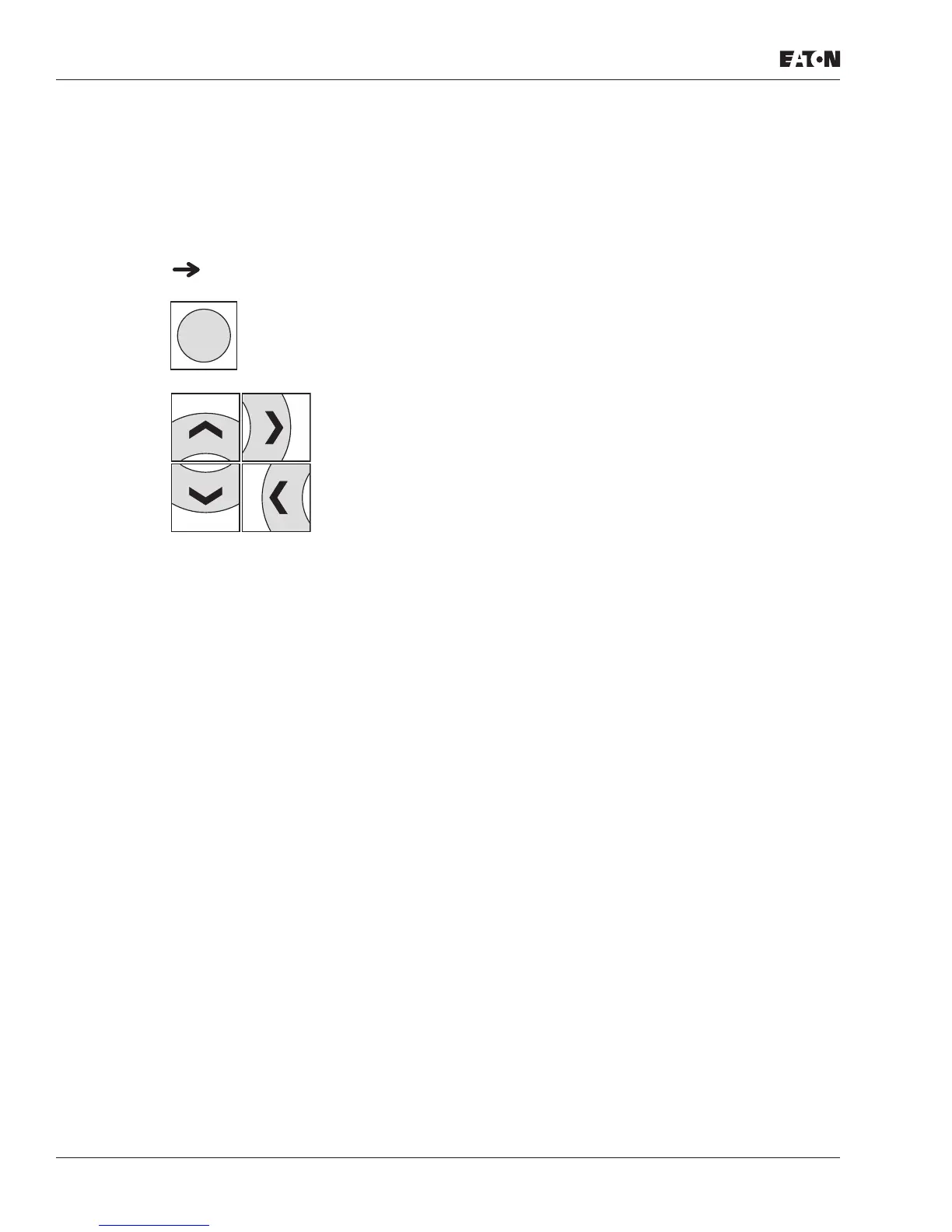

In the quick-configuration, the OK button activates the individual parameter
values and then moves on to the next parameter. Every parameter always
shows the value that is set in alternating sequence. By actuating the OK
button again, you activate the value (value flashes).
In the quick-configuration, the arrow keys have a limited functionality
(changing parameter values).
OK
