Eaton M-Max series Quick Start Guide

M-Max Series adjustable frequency drive
26 For more information visit: www.eaton.com
MN04020002E
February 2010
Parameter menu (PAR)
You have access to all M-Max Series parameters in the parameter menu (PAR)
(see “List of parameters” on Page 30).

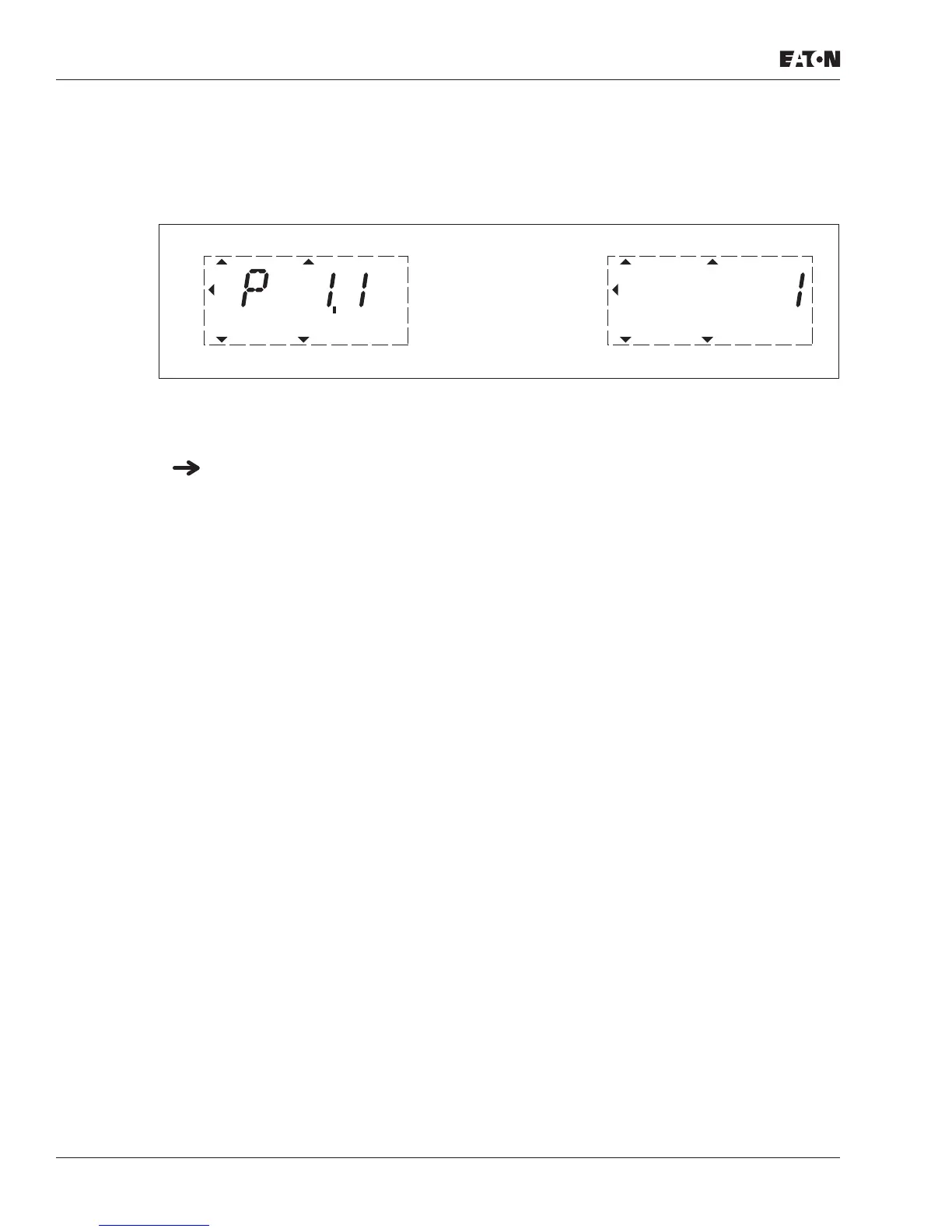

Figure 12: Parameter Menu (P1.1 = 1, Quick-Configuration)
The parameter menu always starts with parameter P1.1. With P1.1 = 1 the quick
start wizard starts to guide you through the procedure. Here you individually
confirm a set number of parameters (see A in Figure 13).
To get free access to all parameters, select P1.1 = 0 (see B in Figure 13).
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
Display in
automatic
alternation
➜
➜
