Eaton M-Max series Quick Start Guide

M-Max Series adjustable frequency drive
24 For more information visit: www.eaton.com
MN04020002E
February 2010
Setting parameters

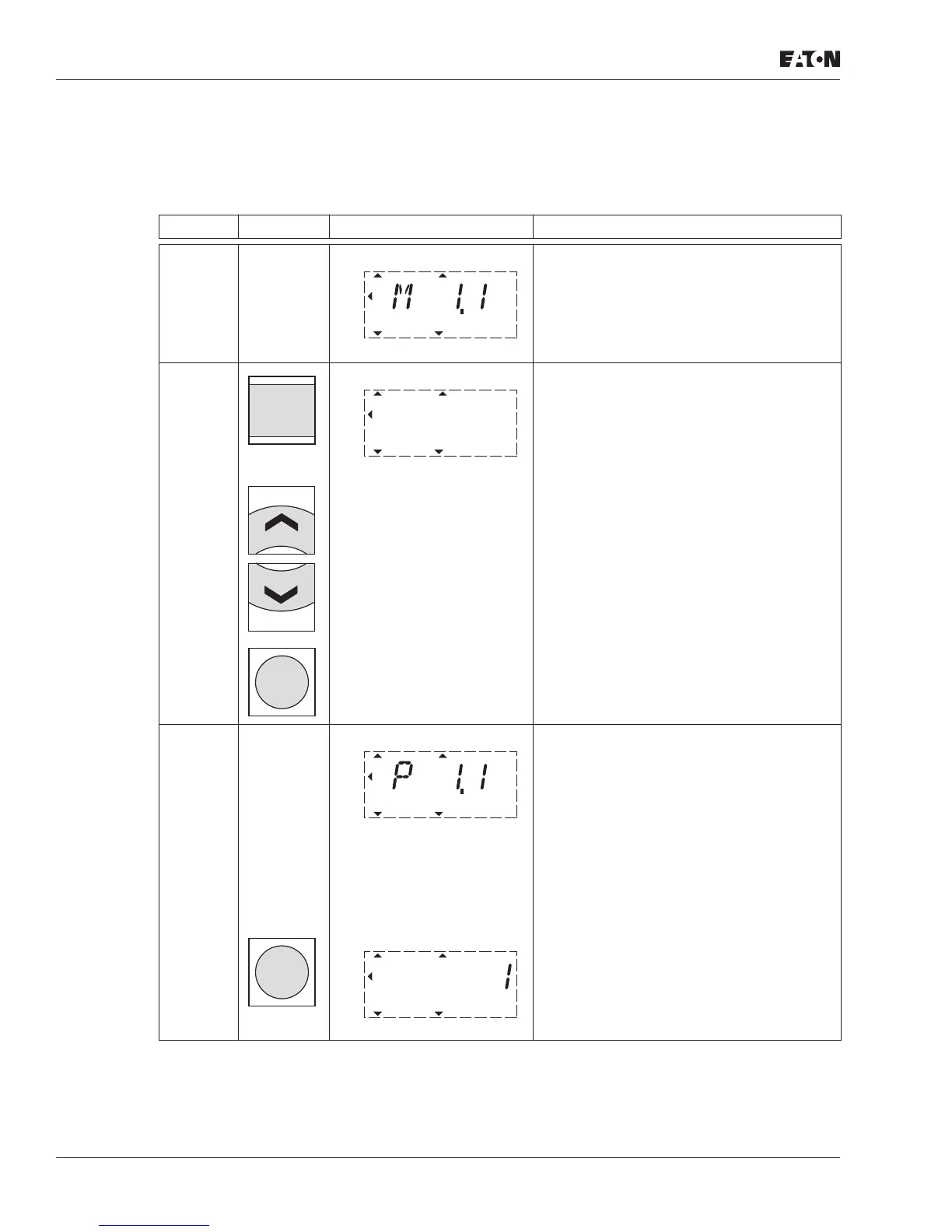

The following table shows an example of how you can select and set parameters.
Table 8: LCD Display in Operation
Sequence Commands Display Description
0 Measured value 1.1
The display changes automatically with
the value of the output frequency 0.00 Hz
(at STOP).
1 By actuating the BACK/RESET button, you
activate the menu level (arrow flashes).
You can select the individual main menus
with the two arrow keys (closed circuit):
• REF = Set point input (Reference)
• MON = Operational data indicator
(Monitor)
• PAR = Parameter levels
• FLT = Fault log (FAULT)
Use the OK button to open the selected main
menu.
2 The numerical first value is always shown
from the selected main menu.
Example: Main menu PAR, Parameter P1.1
The display automatically switches between
the parameter number and the defined value.

Display in automatic
alternation

Use the OK button to activate the selected
parameter.
The value (1) flashes.
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
BACK
RESET
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
OK
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
OK
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
READY RUN STOP ALARM FAULT
