INSTALLATION
EATON BladeUPS
®
(12 kVA) User's Guide S 164201649 Rev 4www.eaton.com/powerquality
41

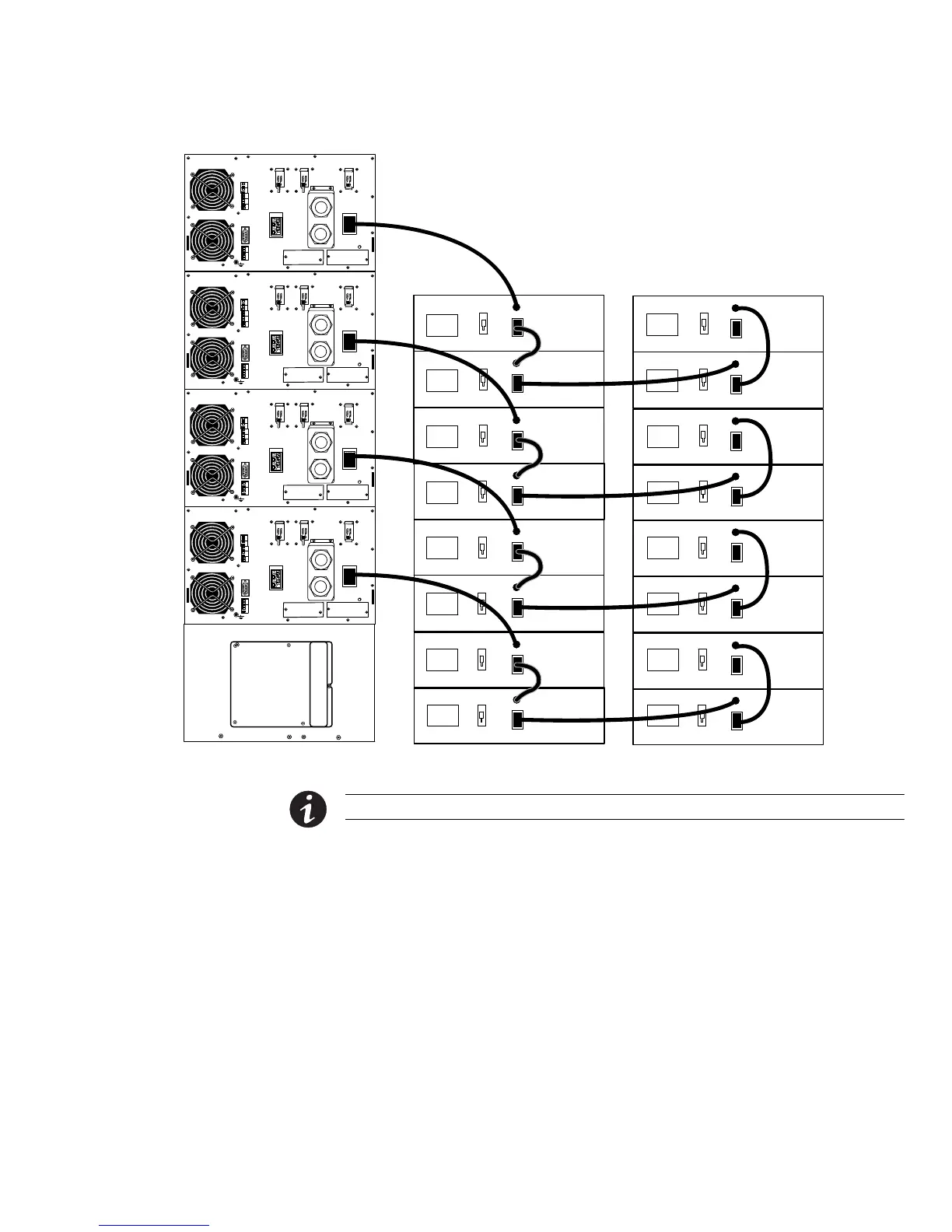

Figure 31. Example EBM Installation in a Large Parallel System
NOTE Figure 31 shows a system using optional 0.9m (3 ft) battery extension cables.
