EATON BladeUPS
®
(12 kVA) User's Guide S 164201649 Rev 4www.eaton.com/powerquality
63
Chapter 4 Operation
This chapter contains information on how to use the BladeUPS module, including:
S Control panel operation
S Operating modes
S UPS startup and shutdown
S Transferring the UPS between modes
S Setting the power strategy
S Configuring the UPS for battery settings
Control Panel Functions
The UPS has a four-button graphical LCD with backlight. It provides useful information
about the UPS itself, load status, events, measurements, and settings
(see Figure 44).
Power On Indicator (green)
On Battery Indicator (yellow)
Bypass Indicator (yellow)
Alarm Indicator (red)
Control Buttons
for the LCD Menu Options

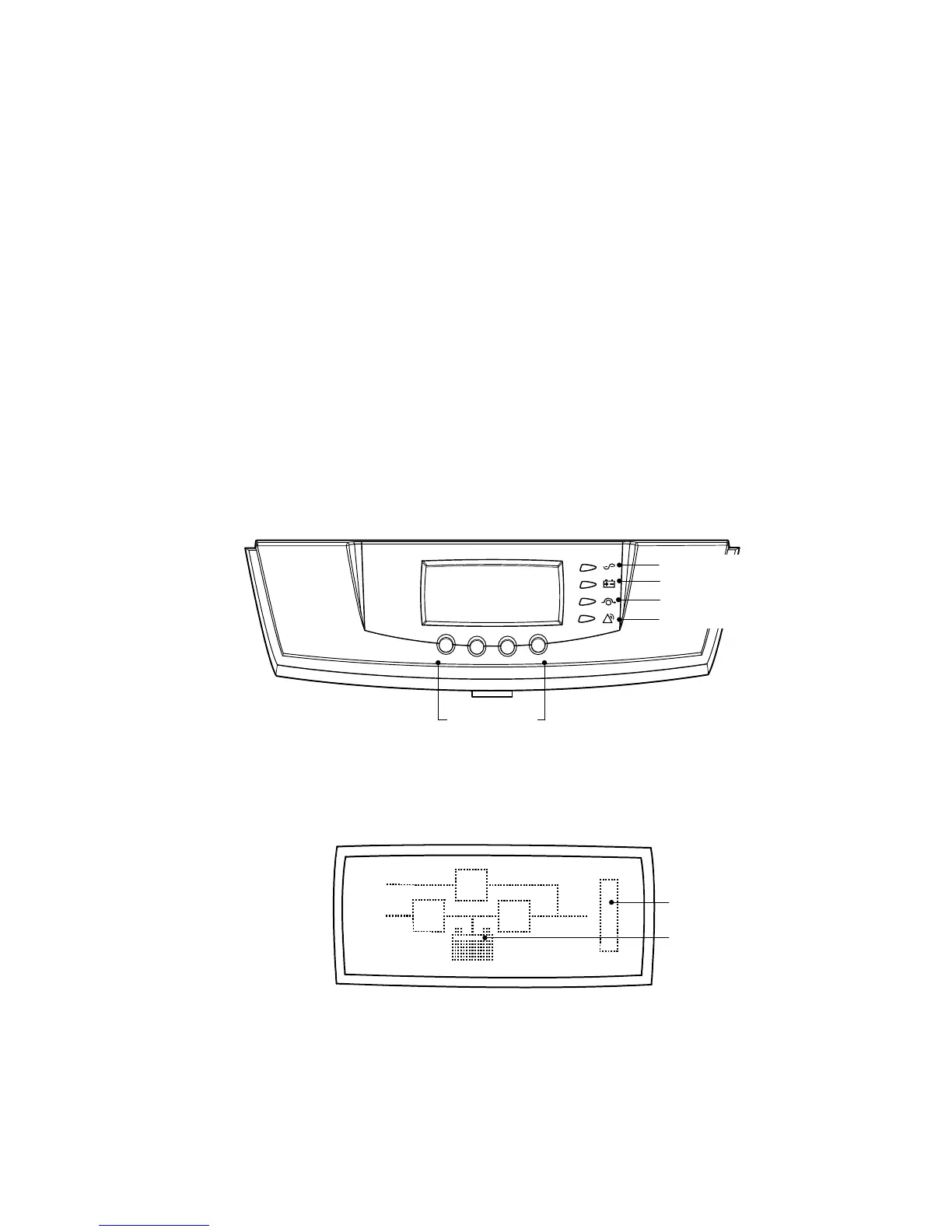

Figure 44. BladeUPS Module Control Panel
The Mimic screen shows the internal components of the UPS and a real-time display
of the operating status (see Figure 45). A thicker bar indicates the node is energized.
Rectifier/
Charger
Inverter
Bypass
Battery
Output Power Percentage
Battery Charge Remaining
(or Battery is Charging)
Figure 45. BladeUPS Module Mimic Screen
