INSTALLATION
EATON BladeUPS
®
(12 kVA) User's Guide S 164201649 Rev 4www.eaton.com/powerquality
29
12. Attach the rear hold-down brackets to the rail and slide the brackets into the slots
on the EBM rear panel (see Figure 16).
Rear Hold-Down
Bracket

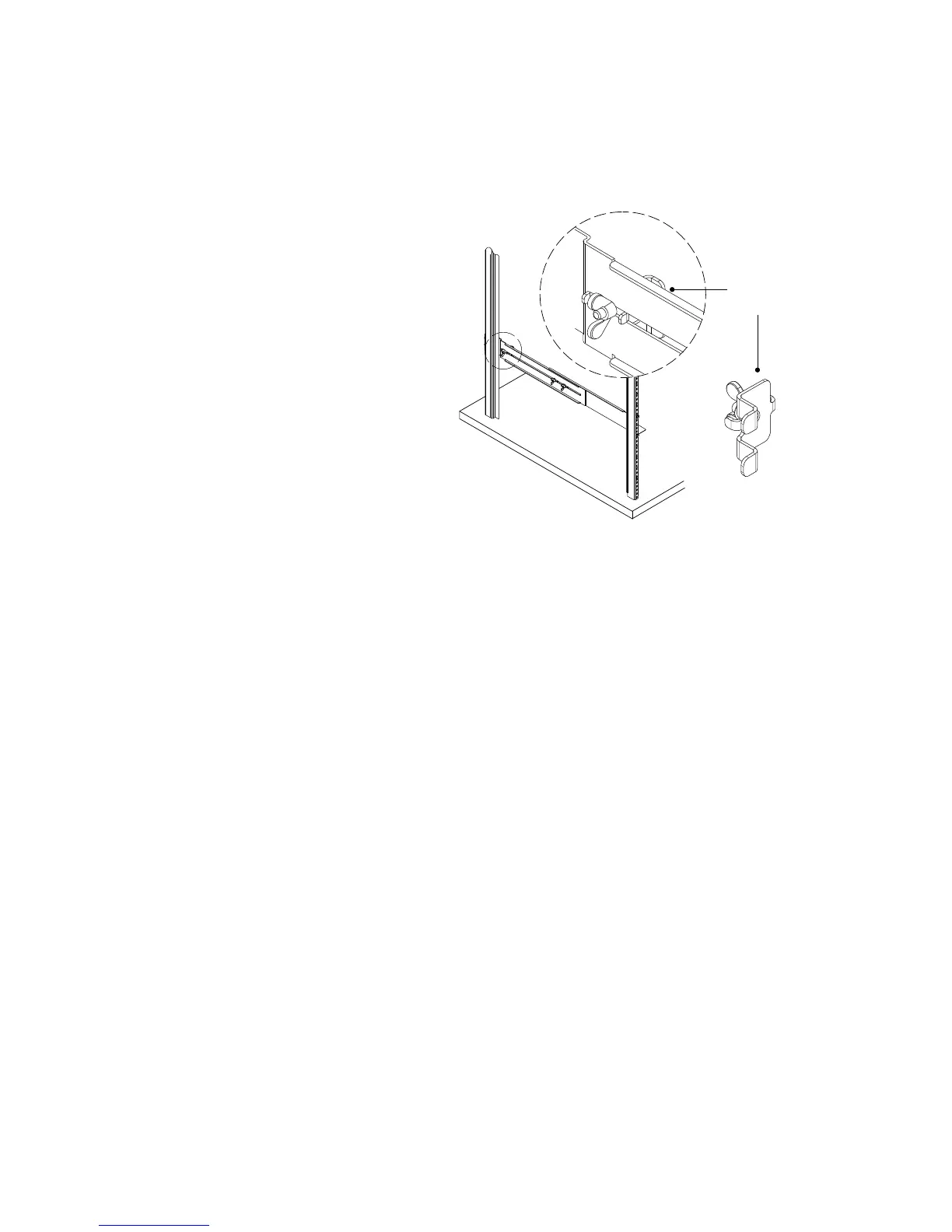

Figure 16. Securing the Back of the EBM
13. Verify that the brackets are seated firmly, then tighten the wing nuts on the rear
hold-down brackets. The EBM is now secured in the rack.
14. Continue to the following section, “UPS Setup.”
UPS Setup
The BladeUPS module comes with all hardware required for installation in a standard
EIA or JIS seismic rack-mount configuration with square and round mounting holes.
The rail assemblies adjust to mount in 48-cm (19-inch) racks with front to rear rail
distances from 61 to 76 cm (24 to 30 inches) deep.
Checking the UPS Accessories
Verify that the following items are included with the UPS:
S UPS front cover
S Communication terminal block connectors:
- (3) two-pin connectors
- (2) two-pin connectors with jumpers
- (1) three-pin connector
S (2) wire saddles
S Communication cable (DB-9/DB-9)

Eaton Powerware Series Specifications

General

Brand	Eaton
Model	Powerware Series
Category	UPS
Language	English
