Eaton S801+ Series User Manual

Installation
S801+ Soft Starter MN03900002E—November 2012 www.eaton.com 7

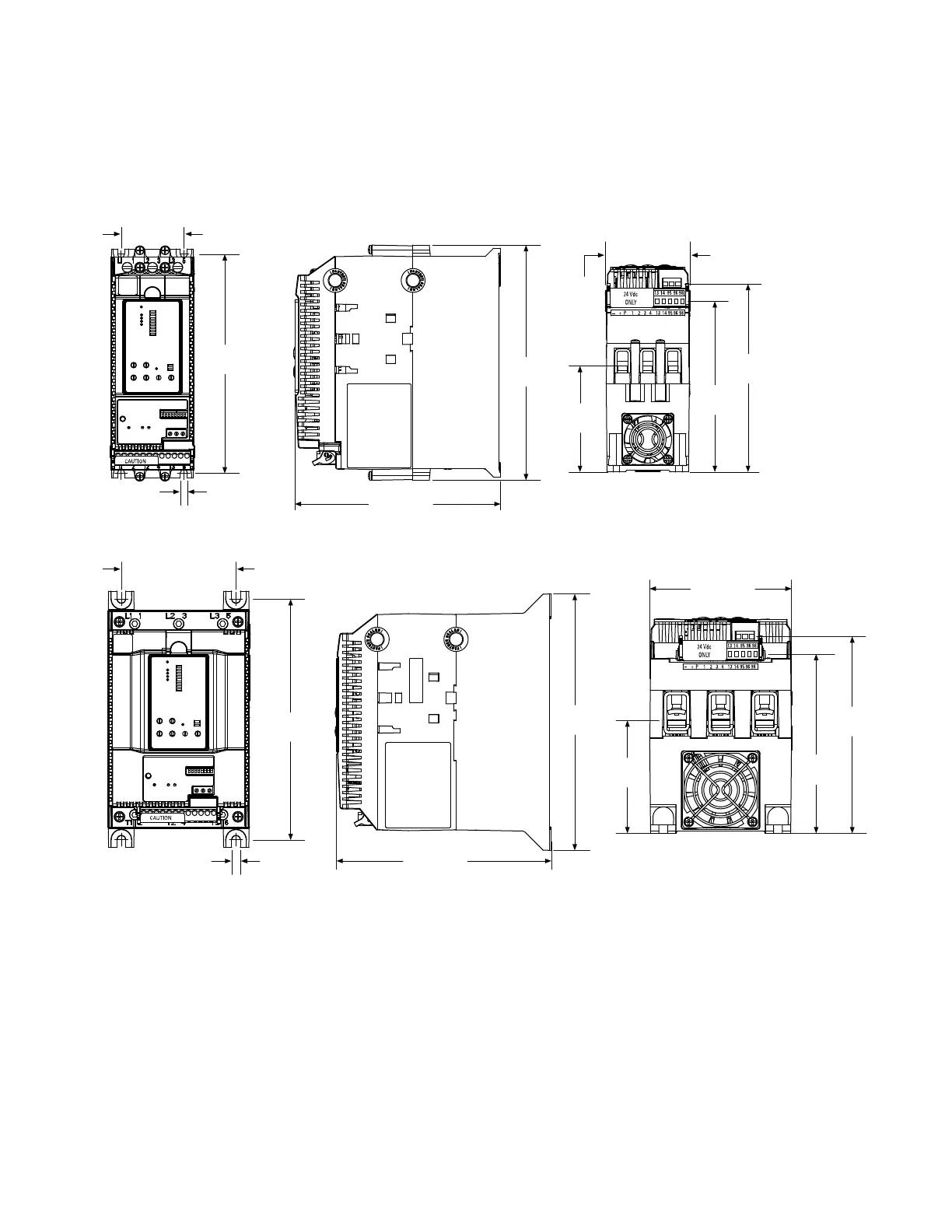

Dimensions
Approximate Dimensions in inches (mm)
S801+N…
S801+R…
4X Ø
0.22
(5.5)
6.87
(174.5)
1.97 (50.0)
7.37
(187.2)
6.45 (163.9)
5.35
(135.9)
5.89
(149.7)
3.32
(84.4)
2.66
(67.6)
4X Ø
0.27
(6.8)
3.54 (90.0)
7.44
(189.0)
5.54
(140.7)
4.38 (111.3)
6.64 (168.6)
7.92
(201.2)
6.08
(154.5)
3.49
(88.5)

Eaton S801+ Series Specifications

General

Product Series	S801+
Category	Controller
Input Voltage	24 VDC
Output Voltage	24 VDC
Number of Inputs	8
Protection Class	IP20
Communication Protocol	Modbus
