Ebtron Advantage IV Series User Manual

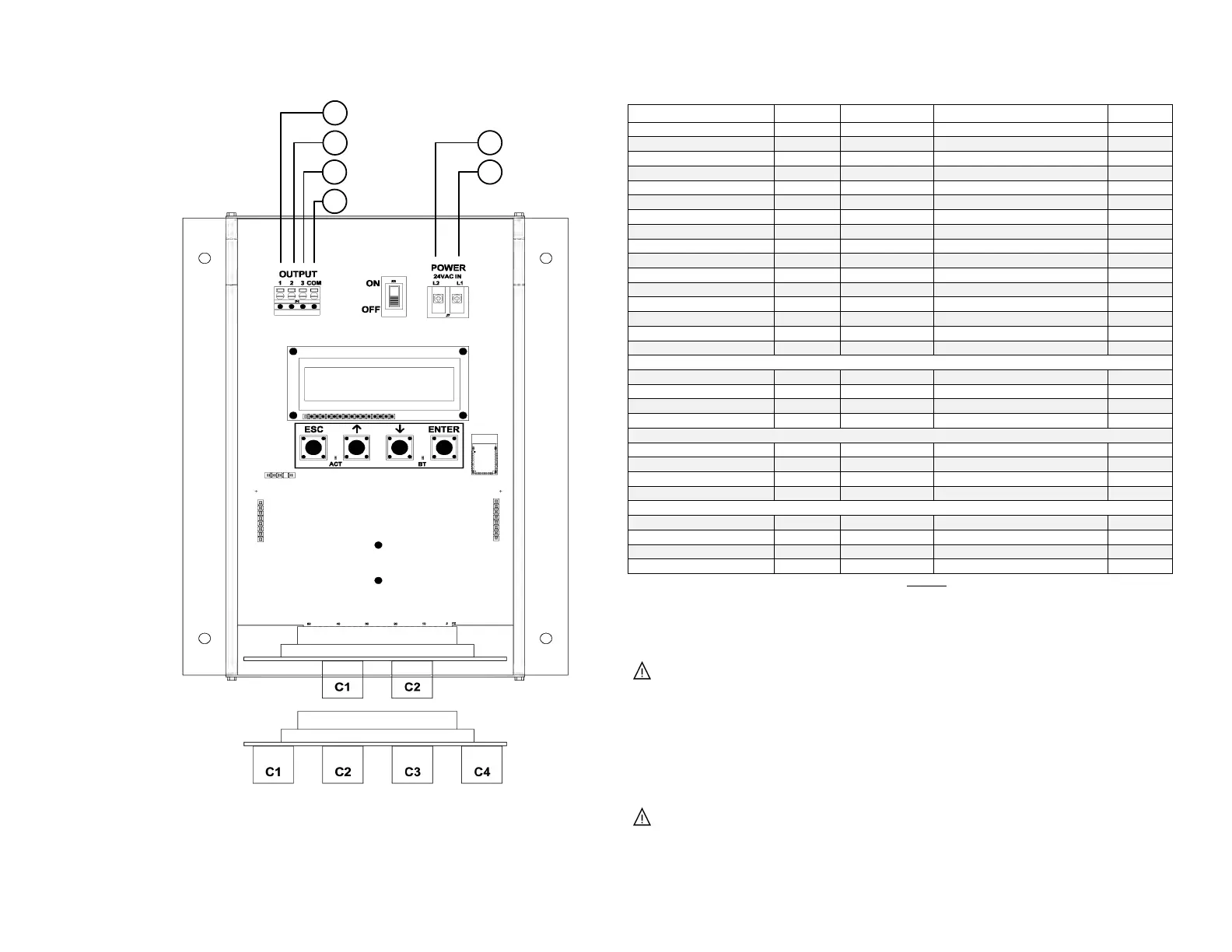

Startup_GTA116e-P_r1a Page 1 of 2
STARTUP INSTRUCTIONS:
1. Verify that the sensor probes are located where they meet EBTRON published installation guides.
2. Verify that the probes are properly spaced with the airflow arrows pointing in the direction of airflow.
Improperly installed probes will compromise the installed accuracy of the device and degrade system
performance.
3. Verify that the transmitter is installed and wired in accordance with the GTA116e-P Wiring Guide
provided with the transmitter and power is provided to the transmitter.
4. Make sure the ductwork is clean and free of debris prior to fan startup.
5. Move the power switch to the “ON” position. Power-up faults, if detected, are displayed on the LCD.
If any power up faults are detected, resolve all conflicts or contact EBTRON customer service at
1-800-232-8766 before proceeding..
If extension cables have been added, the extension cable length must be entered into the transmitter.
Refer to the Operations and Maintenance Manual for more information.
Advantage IV (A4) GTA116e-P STARTUP GUIDE
A1
A2
A3
C
L2
L1
TYPE B
TYPE A
Description Parameter Default
Optional Settings/Ranges Units
System of Units SYS I-P (US customary)
SI (metric)
Airflow Calculation Method AIRFLOW ACT (actual)
STD (standard mass flow)
Altitude (for actual flow correction) ALT 0
AUTO, 0 to 20000 [0 to 6000] ft [m]
Low Limit Airflow Cutoff LLIMIT 0 FPM
0 to 500 FPM [0.0 to 2.5 m/s]
Area AREA {Order Area}
0.00 to 9999.99 [0.000 to 999.999] sq ft [sq m]
Humidity Sensor Config. (/H opt.) H CONFIG RH (relative humidity)
ENTH (enthalpy), DPT (dew point)
Auto Pb Correct Psych. Values Pb CORR ON (onboard sensor)
OFF
AO1, AO2 and AO3 Type AOUT 4-20mA
0-10V, 0-5 V
AO1 Assignment AO1 ASGN AF (Airflow)
None
AO1 Unit of Measure
AO1 UM FPM [m/s] CFM [L/s]
AO1 Minimum Scale Reading
AO1 MS 0 None FPM [m/s]
AO1 Full Scale Reading AO1 FS 5000 [25.0]
100 to 15000 [0.5 to 75.0] FPM [m/s]
AO2 Assignment AO2 ASGN TEMP (Temperature)
ALRM (Alarm) or TRBL (System Trouble)
AO2 Unit of Measure AO2 UM F [C]
None °F [°C]
AO2 Minimum Scale Reading AO2 MS -20 [-30]
-50 to 160 [-50 to 70] °F [°C]
AO2 Full Scale Reading AO2 FS 160 [70]
-50 to 160 [-50 to 70] °F [°C]
AO3 Assignment AO3 ASGN RH
None
AO3 Unit of Measure AO3 UM %RH
None
AO3 Minimum Scale Reading AO3 MS 0
0 to 100 % RH
AO3 Full Scale Reading AO3 FS 100
0 to 100 % RH
AO3 Assignment AO3 ASGN ENTH
None
AO3 Unit of Measure AO3 UM Btu/lb [kJ/kg]
None
AO3 Minimum Scale Reading AO3 MS 0
-20 to 400 [-40 to 800] Btu/lb [kJ/kg]
AO3 Full Scale Reading AO3 FS 200 [400]
-20 to 400 [-40 to 800] Btu/lb [kJ/kg]
AO3 Assignment AO3 ASGN DPT
None
AO3 Unit of Measure AO3 UM F DPT [C DPT]
None
AO3 Minimum Scale Reading AO3 MS 0
-50 to 160 [-50 to 70] °F [°C]
AO3 Full Scale Reading AO3 FS 100 [50]
-50 to 160 [-50 to 70] °F [°C]
GTA116e-P Parameters - Factory Defaults and Optional Settings/Ranges
Refer to the O&M Manual for more information and/or additional parameter defaults, settings and ranges.
H CONFIG=RH (default)
H CONFIG=ENTH
H CONFIG=DPT
