SD Series Dry Cabinets Setup and Operation Manual | A62-3337-00 Rev: 1.0.0 Page 11
5.5 FILIMENT REEL RACK PLACEMENT

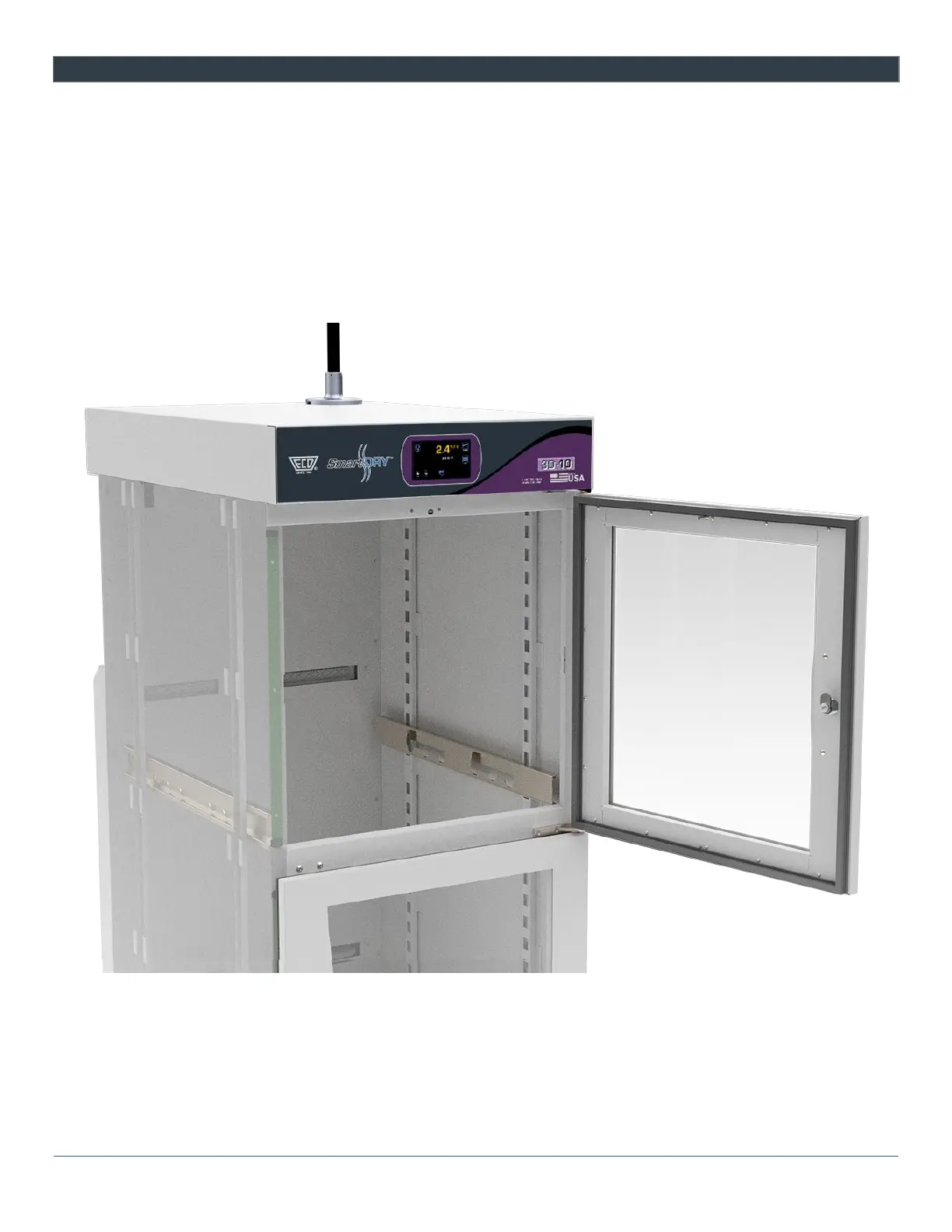

Cabinet Filiment Reel Racks are held in place on each side by a support bracket that slips into pre-cut slots. The
support brackets are symmetrical and can be used to support either the left or right side of the filiment reel
rods. Slots are pre-cut to prevent blocking of air vents and LED lighting in addition to fitting most common
reels; place as needed to meet your needs.
To install:
1) Open an cabinet door.
2) Insert the support brackets into the desired location of the tracks making sure they are both on the
same track notch and secure.
