SD Series Dry Cabinets Setup and Operation Manual | A62-3337-00 Rev: 1.0.0 Page 76

10.5 POWER BOARD

Prior to any maintenance or service on this unit, disconnect the power cord from the power sup-

ply. Before reattaching the unit to its power supply, be sure all covers and the fastening hardware

are in place and secure.

Step 1 - Disassemble:

The Power Board has capacitors which can remain charged. Handle board from the edges only.

1) Remove the control chassis top cover.

• Remove the 4 to 6 screws (model dependent) on the back of the top cover.

• Slide the top cover back about 2 cm (1/2”).

• Lift up and disconnect light tower option, if included.

• Place top cover aside.

Connectors with a locking latch must have the latch pressed while carefully pulling the connector.

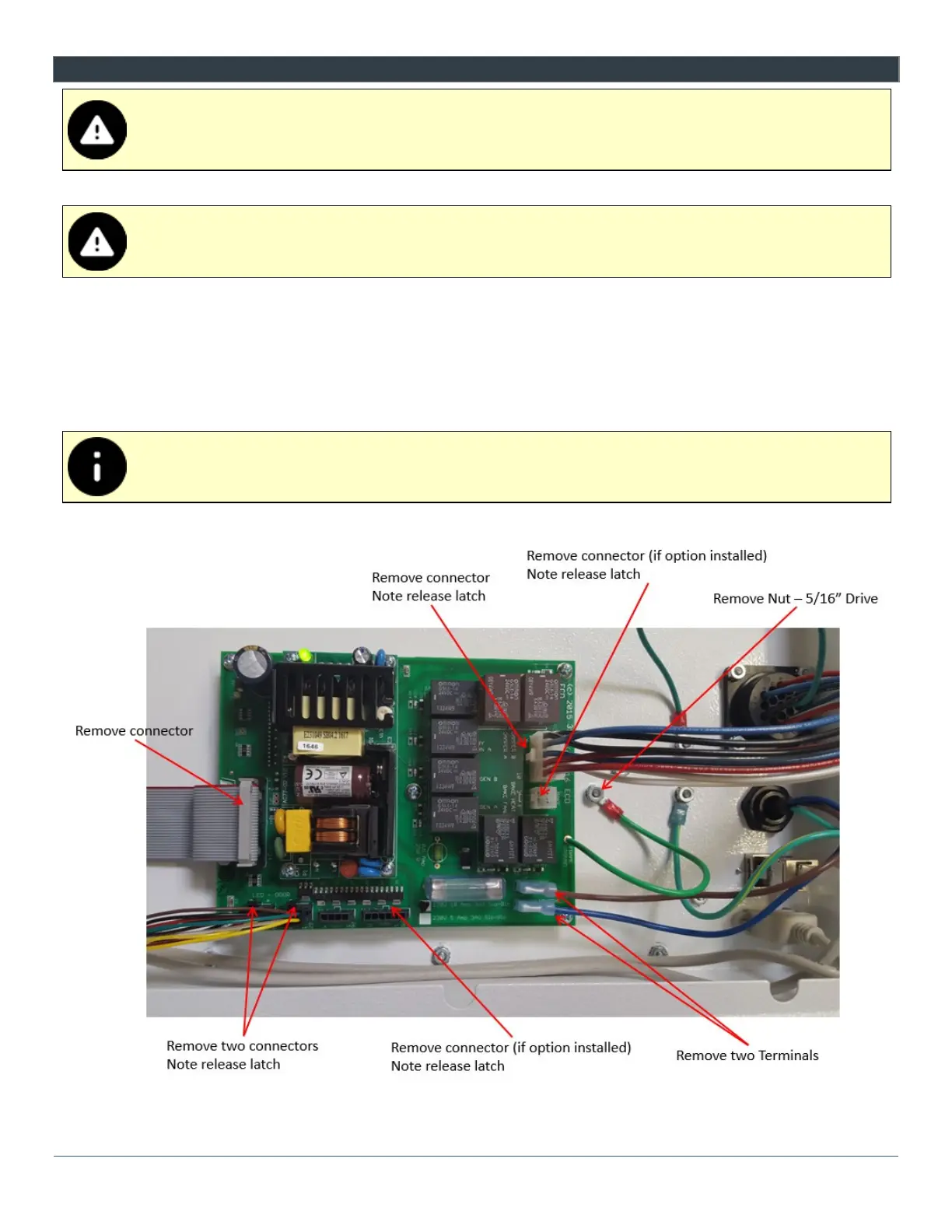

2) Disconnect all wire harnesses from Power Board.
