10.8 DOOR SWITCH

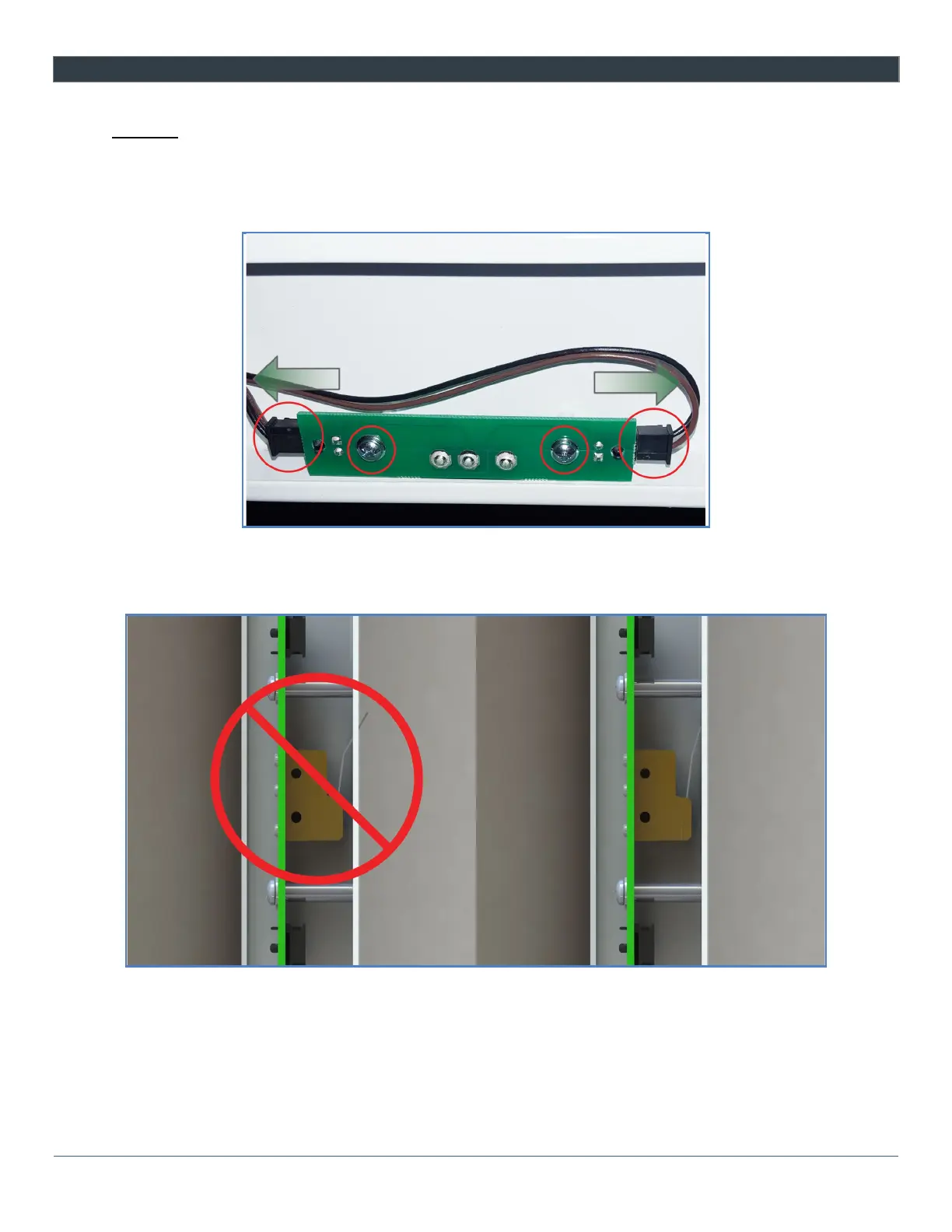

To replace a Door Switch, please follow these steps:
1) ALWAYS disconnect the cabinet from the power cord from the power supply.
2) Open the door closest to the door switch being replaced.
3) From the inside of the cabinet, remove the 2 hardware screws.
4) Press the plug release locks and carefully disconnect the cables.
5) Reconnect the cables making sure the release lock latches into place.
6) Re-mount the door switch with the 2 hardware screws. Make sure the door switch lever does not pro-
trude out of the switch slot. If it does the board will need to be re-mounted.
7) Reconnect the power plug to the power source.
