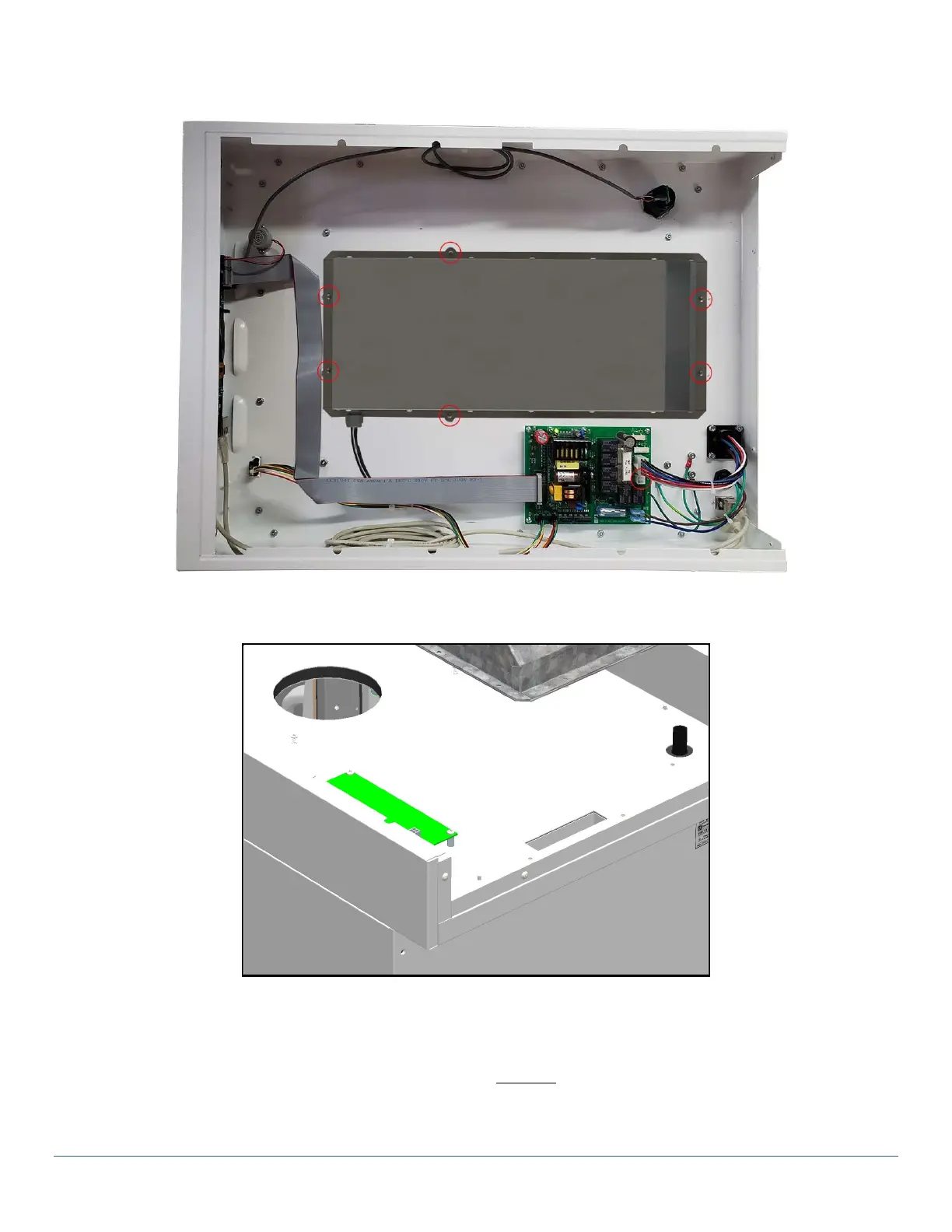

5) Remove the 6 mounting screws that secure the heater to the top and lift out the heater module. 4 on
the sides and front. 2 on the rear.
6) Place the replacement heater into place, making sure the output plenum fits down inside the back vent
plenum.
7) Replace the 6 mounting screws that secure the heater to the top panel.
8) Reconnect the heater cable to the Power board making sure the orientation is correct and the release
lock latches into place.
9) Replace the top cover and the fastening hardware BEFORE connecting the power cord to the power
supply.
10) Reconnect the power plug to the power source.
