SD Series Dry Cabinets Setup and Operation Manual | A62-3337-00 Rev: 1.0.0 Page 85

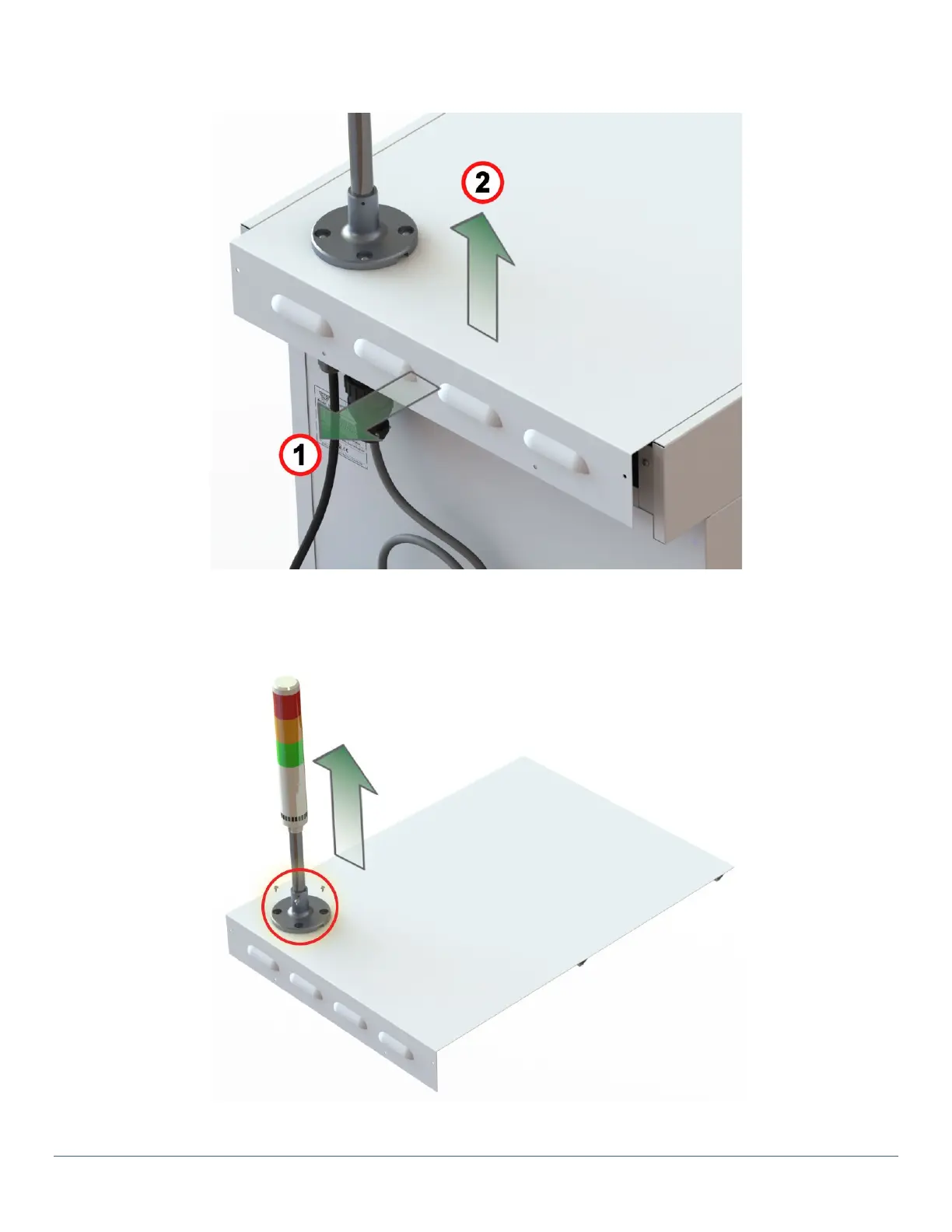

3) Slide the Cabinet Cover back about 2 cm (1/2”) and then tilt to up disconnect Light Tower from the
Power Board.
4) Set the Control Cover aside on a flat surface.
5) Remove the hardware screws from the bracket. Pull the Light Tower and bracket off of the Control
Cover.
