FUEL SYSTEM
CS-501SX, CS-501SXH
501sx
35

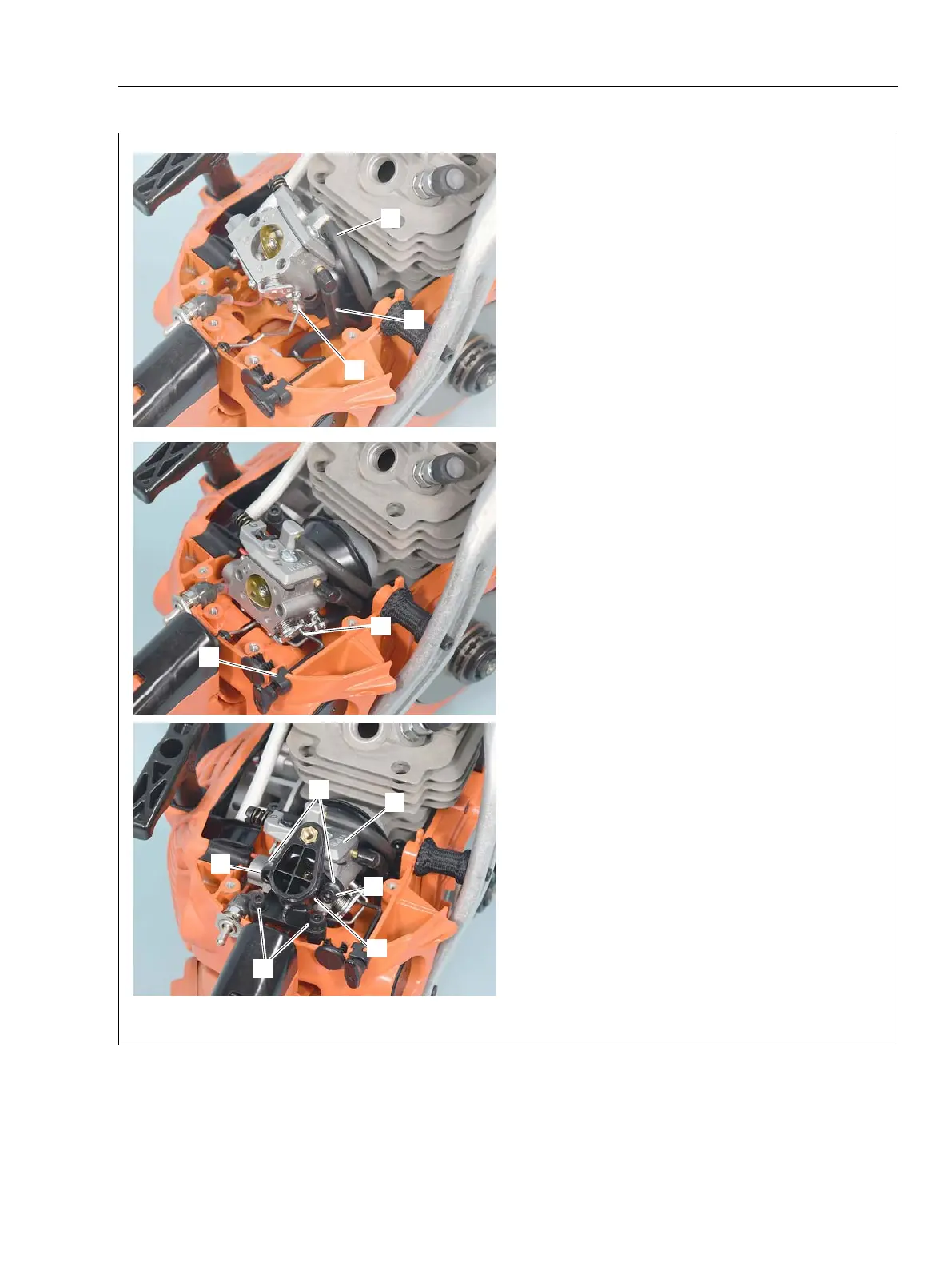

4-14 Installing carburetor
1. Connect fuel line (A) and pulse line (B) to carbu-
retor as shown.
2. Connect throttle rod (C) to carburetor.
3. Connect choke rod (D) with choke grommet (E)
to carburetor.
4. Secure carburetor (F) and carburetor elbow (G)
with bolts (H), washers (J) and bolts (K).
B
A
C
D
E
F
G
J
H
K
H
