REAR HANDLE AND CONTROL SYSTEM
CS-501SX, CS-501SXH
501sx
66

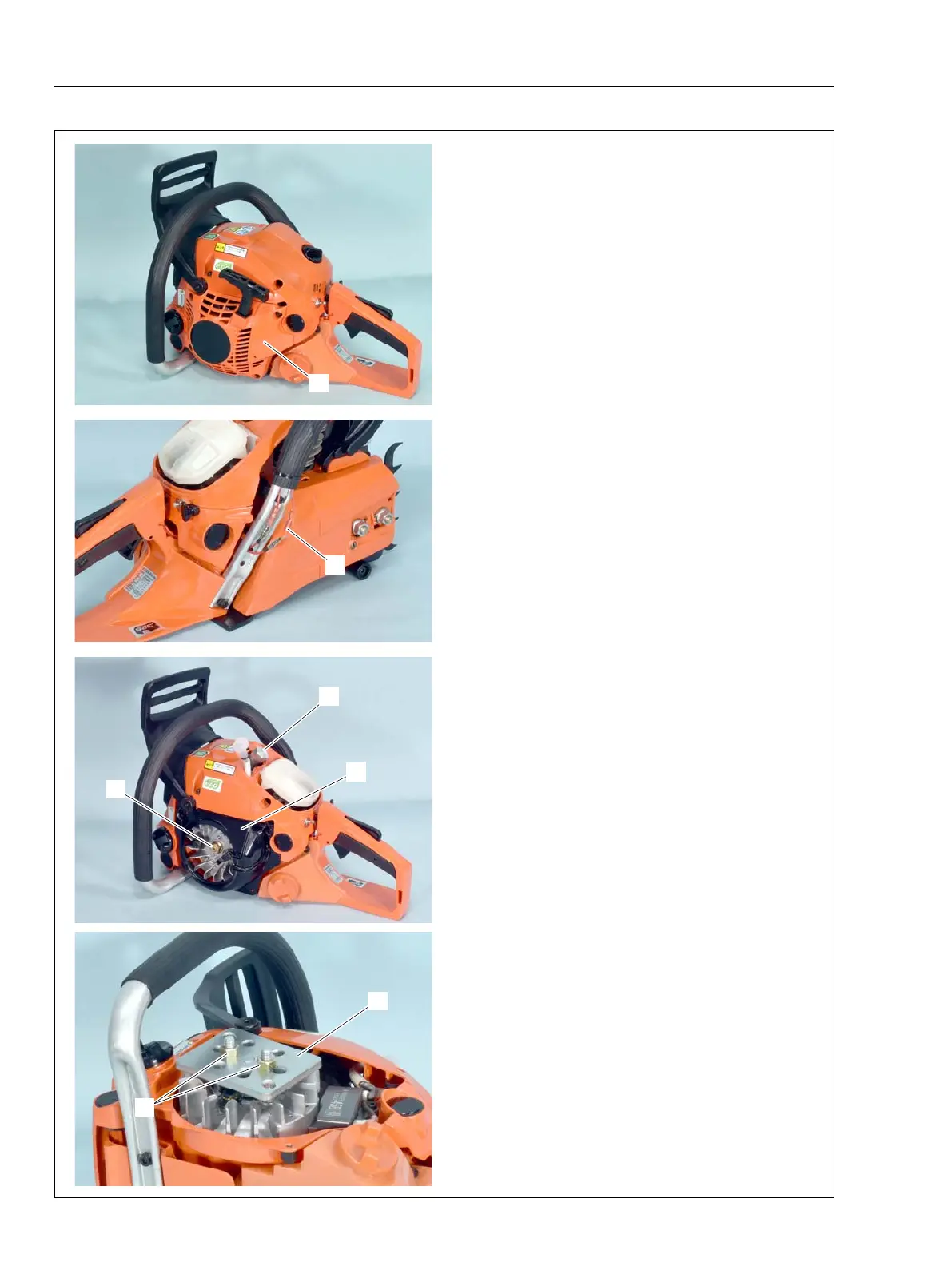

9-3-2 Replacing stator assembly
1. Remove air cleaner cover and handle cover.
2. Remove four bolts and remove starter assembly
(A) from unit.
3. Disconnect stator lead coupler (B).
NOTE:
If it is not clear which is stator lead coupler
(B), remove carburetor and carburetor elbow, and
check where the lead is connected to.
4. Install piston stopper X644-000020 (C) into
spark plug hole by hand to stop crankshaft rota-
tion.
5. Remove fan cover (D).
6. Remove nut (E) by rotating counterclockwise.
NOTE:
Do not use power tool to remove nut (E).
Otherwise, piston damage may occur.
7. Set puller Y089-000111 (F) on flywheel as
shown.
8. Tighten two nuts (G) on the puller alternately to
remove fl ywheel.
A
C
E
D
F
G
B
To Next Page
