ENGINE
CS-501SX, CS-501SXH
501sx
47
8 ENGINE
(K)
(J)
(G)
(G)
(H)
(B)
(B)
(D)
(P)
(Q)
(M)
(N)
(L)
(F)
(E)
(C)
(E)

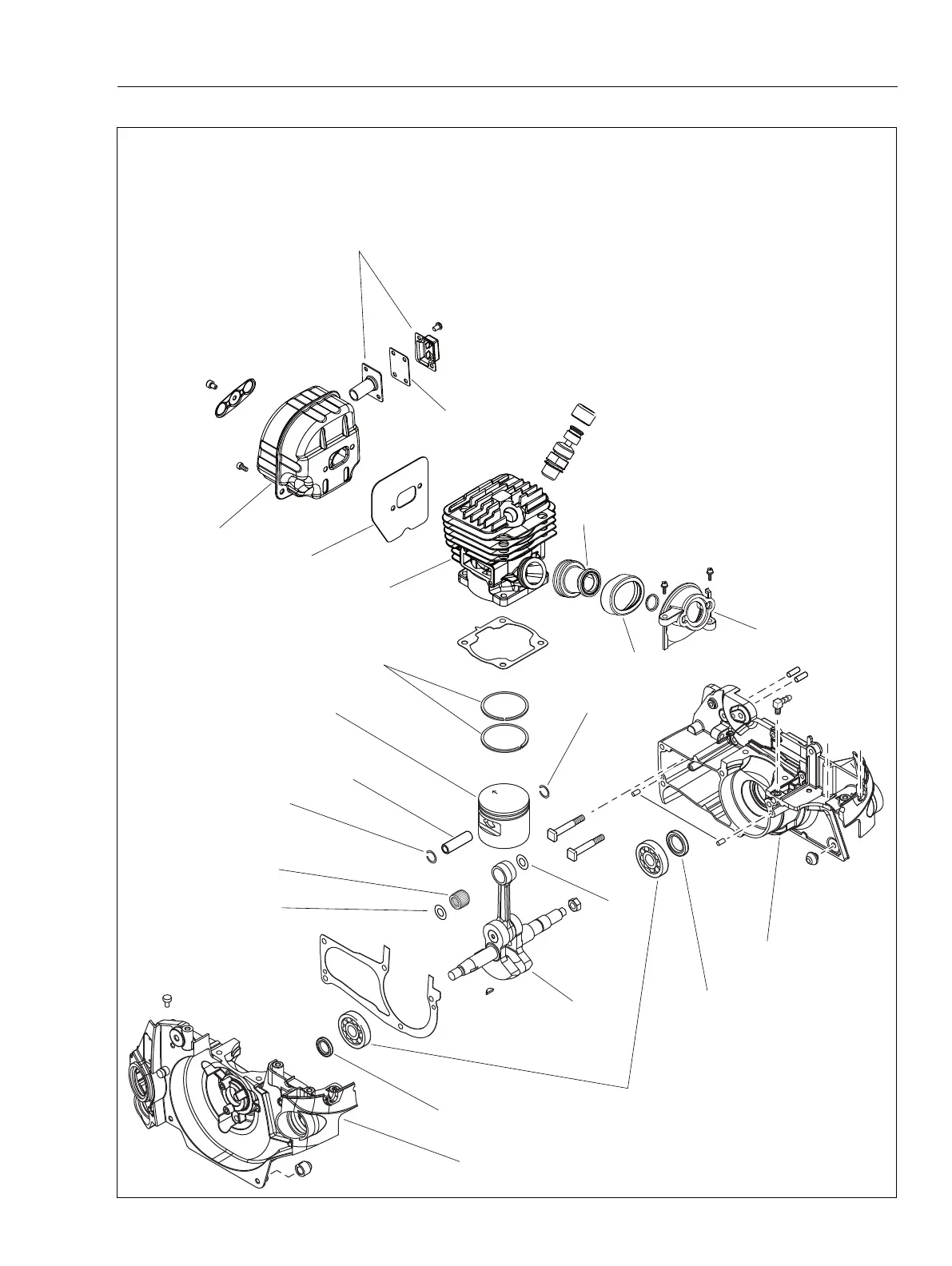

( A ) Oil seal
( B ) Crankcase
( C ) Ball bearing
( D ) Crankshaft assembly
( E ) Washer
( F ) Needle bearing
( G ) Snap ring
( H ) Piston pin
( J ) Piston
( K ) Piston ring
( L ) Cylinder
( M ) Muffl er
( N ) Muffl er gasket
( P ) Arrestor screen
( Q ) Exhaust guide
( R ) Intake bellows
( S ) Bellows holder
( T ) Intake insulator
(R)
(T)
(S)
(A)
(A)
