Echo shindaiwa CS-501SX

SAW CHAIN LUBRICATION SYSTEM
CS-501SX, CS-501SXH
501sx
44

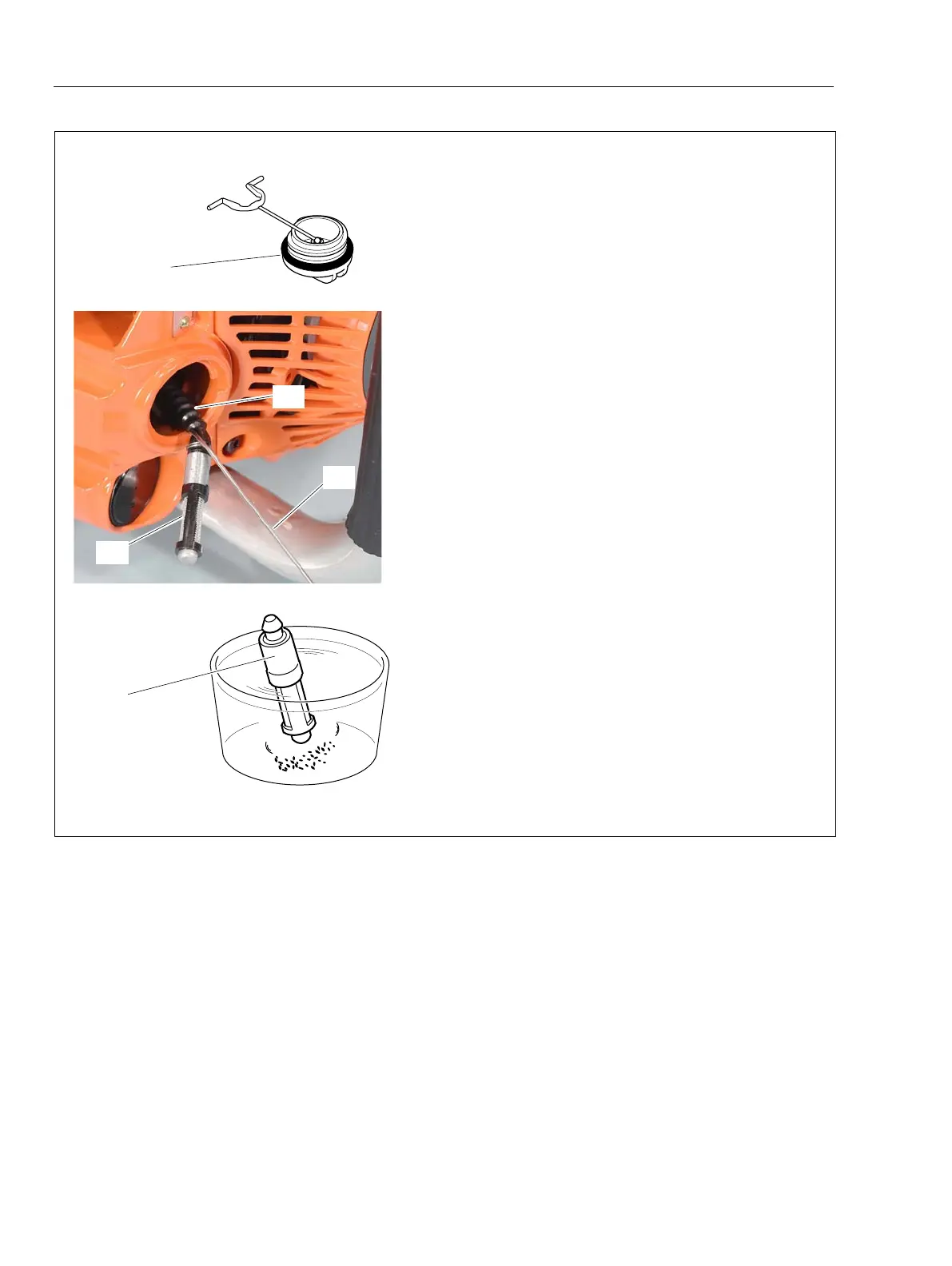

7-1 Inspecting oil cap and strainer
1. Remove oil cap.
2. Inspect oil cap for cracks and O-ring (A) for cuts
or damage. Replace worn or damaged parts as re-
quired.
3. Pull oil strainer (B) from oil tank using a wire
hook (C).
4. Remove oil strainer (B) from oil line (D) and
clean oil strainer in suitable solvent, or replace if
damaged.
A
C
B
B
D
